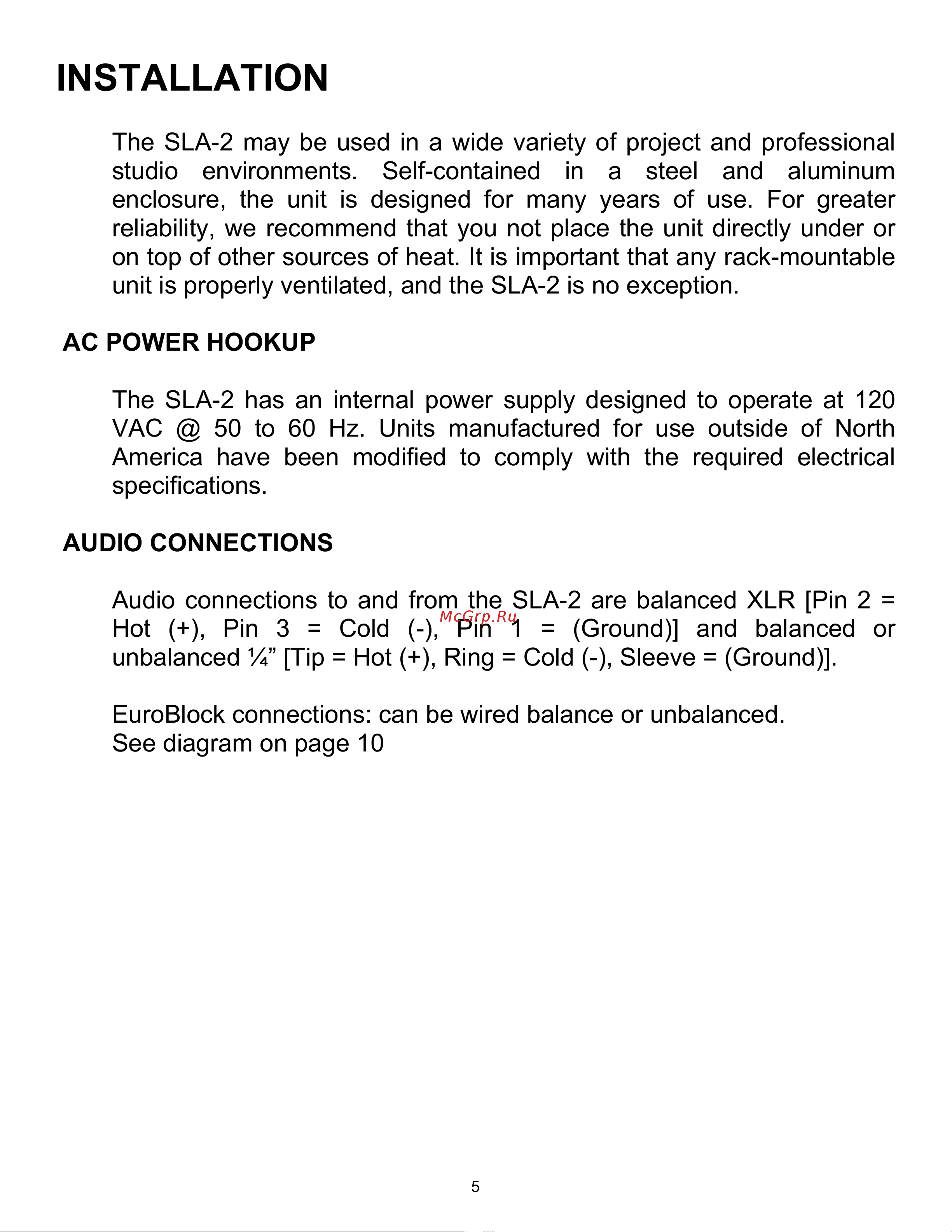

INSTALLATION

The SLA-2 may be used in a wide variety of project and professional

studio environments. Self-contained in a steel and aluminum

enclosure, the unit is designed for many years of use. For greater

reliability, we recommend that you not place the unit directly under or

on top of other sources of heat. It is important that any rack-mountable

unit is properly ventilated, and the SLA-2 is no exception.

AC POWER HOOKUP

The SLA-2 has an internal power supply designed to operate at 120

VAC @ 50 to 60 Hz. Units manufactured for use outside of North

America have been modified to comply with the required electrical

specifications.

AUDIO CONNECTIONS

Audio connections to and from the SLA-2 are balanced XLR [Pin 2 =

Hot (+), Pin 3 = Cold (-), Pin 1 = (Ground)] and balanced or

unbalanced ¼” [Tip = Hot (+), Ring = Cold (-), Sleeve = (Ground)].

EuroBlock connections: can be wired balance or unbalanced.

See diagram on page 10
