Art SLA-2 [10/16] Ch2 ch1 _ _

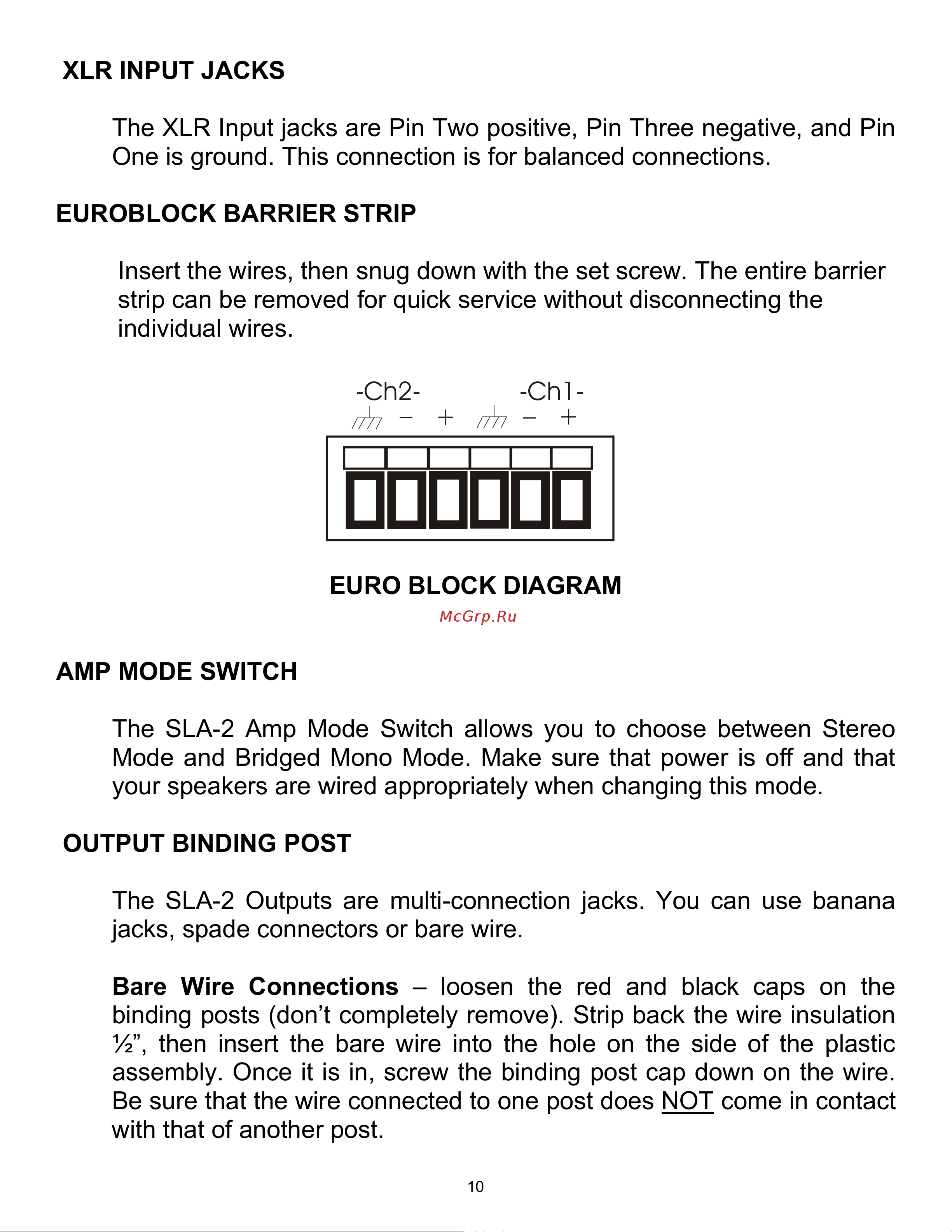

XLR INPUT JACKS

The XLR Input jacks are Pin Two positive, Pin Three negative, and Pin

One is ground. This connection is for balanced connections.

EUROBLOCK BARRIER STRIP

Insert the wires, then snug down with the set screw. The entire barrier

strip can be removed for quick service without disconnecting the

individual wires.

EURO BLOCK DIAGRAM

AMP MODE SWITCH

The SLA-2 Amp Mode Switch allows you to choose between Stereo

Mode and Bridged Mono Mode. Make sure that power is off and that

your speakers are wired appropriately when changing this mode.

OUTPUT BINDING POST

The SLA-2 Outputs are multi-connection jacks. You can use banana

jacks, spade connectors or bare wire.

Bare Wire Connections – loosen the red and black caps on the

binding posts (don’t completely remove). Strip back the wire insulation

½”, then insert the bare wire into the hole on the side of the plastic

assembly. Once it is in, screw the binding post cap down on the wire.

Be sure that the wire connected to one post does NOT

come in contact

with that of another post.

-Ch2- -Ch1-
