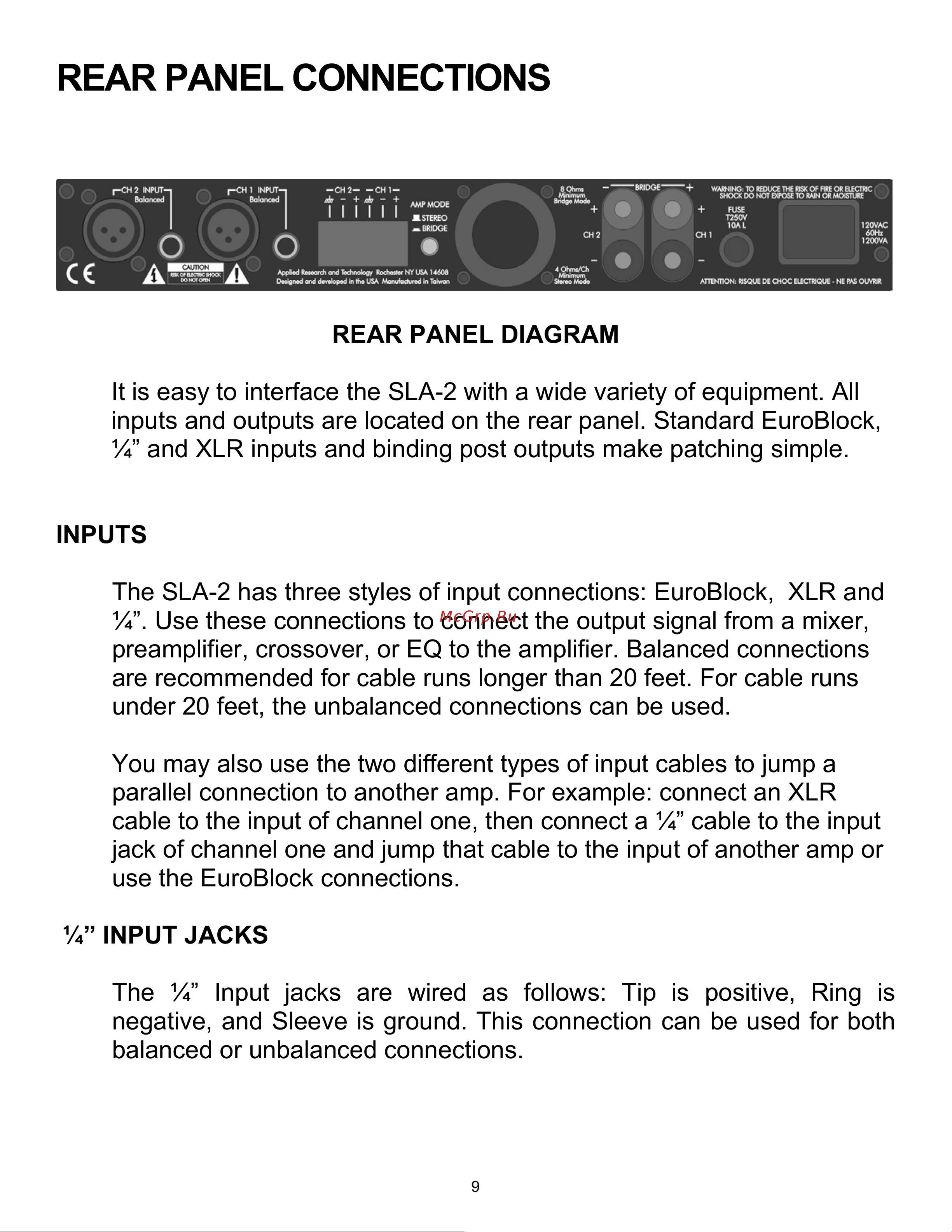

REAR PANEL CONNECTIONS

REAR PANEL DIAGRAM

It is easy to interface the SLA-2 with a wide variety of equipment. All

inputs and outputs are located on the rear panel. Standard EuroBlock,

¼” and XLR inputs and binding post outputs make patching simple.

INPUTS

The SLA-2 has three styles of input connections: EuroBlock, XLR and

¼”. Use these connections to connect the output signal from a mixer,

preamplifier, crossover, or EQ to the amplifier. Balanced connections

are recommended for cable runs longer than 20 feet. For cable runs

under 20 feet, the unbalanced connections can be used.

You may also use the two different types of input cables to jump a

parallel connection to another amp. For example: connect an XLR

cable to the input of channel one, then connect a ¼” cable to the input

jack of channel one and jump that cable to the input of another amp or

use the EuroBlock connections.

¼” INPUT JACKS

The ¼” Input jacks are wired as follows: Tip is positive, Ring is

negative, and Sleeve is ground. This connection can be used for both

balanced or unbalanced connections.
