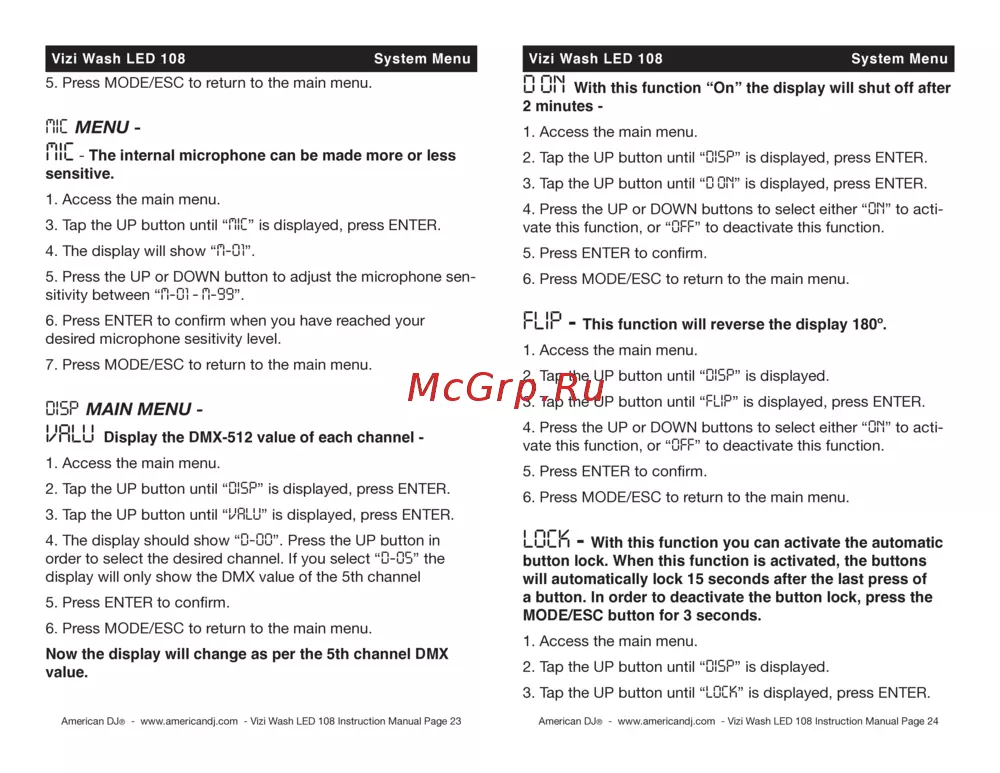

American DJ® - www.americandj.com - Vizi Wash LED 108 Instruction Manual Page 24
Vizi Wash LED 108 System Menu
D ON With this function “On” the display will shut off after
2 minutes -
1. Access the main menu.
2. Tap the UP button until “DISP” is displayed, press ENTER.
3. Tap the UP button until “D ON” is displayed, press ENTER.
4. Press the UP or DOWN buttons to select either “ON” to acti-
vate this function, or “OFF” to deactivate this function.
5. Press ENTER to conrm.
6. Press MODE/ESC to return to the main menu.
FLIP - This function will reverse the display 180º.
1. Access the main menu.
2. Tap the UP button until “DISP” is displayed.
3. Tap the UP button until “FLIP” is displayed, press ENTER.
4. Press the UP or DOWN buttons to select either “ON” to acti-
vate this function, or “OFF” to deactivate this function.
5. Press ENTER to conrm.
6. Press MODE/ESC to return to the main menu.
LOCK - With this function you can activate the automatic
button lock. When this function is activated, the buttons
will automatically lock 15 seconds after the last press of
a button. In order to deactivate the button lock, press the
MODE/ESC button for 3 seconds.
1. Access the main menu.
2. Tap the UP button until “DISP” is displayed.
3. Tap the UP button until “LOCK” is displayed, press ENTER.
American DJ® - www.americandj.com - Vizi Wash LED 108 Instruction Manual Page 23
Vizi Wash LED 108 System Menu
5. Press MODE/ESC to return to the main menu.
MIC MENU -
MIC - The internal microphone can be made more or less
sensitive.
1. Access the main menu.
3. Tap the UP button until “MIC” is displayed, press ENTER.
4. The display will show “M-01”.
5. Press the UP or DOWN button to adjust the microphone sen-
sitivity between “M-01 - M-99”.
6. Press ENTER to conrm when you have reached your
desired microphone sesitivity level.
7. Press MODE/ESC to return to the main menu.
DISP MAIN MENU -
VALU Display the DMX-512 value of each channel -
1. Access the main menu.
2. Tap the UP button until “DISP” is displayed, press ENTER.
3. Tap the UP button until “VALU” is displayed, press ENTER.
4. The display should show “D-00”. Press the UP button in
order to select the desired channel. If you select “D-05” the
display will only show the DMX value of the 5th channel
5. Press ENTER to conrm.
6. Press MODE/ESC to return to the main menu.
Now the display will change as per the 5th channel DMX
value.
