American DJ® - www.americandj.com - Vizi Wash LED 108 Instruction Manual Page 5

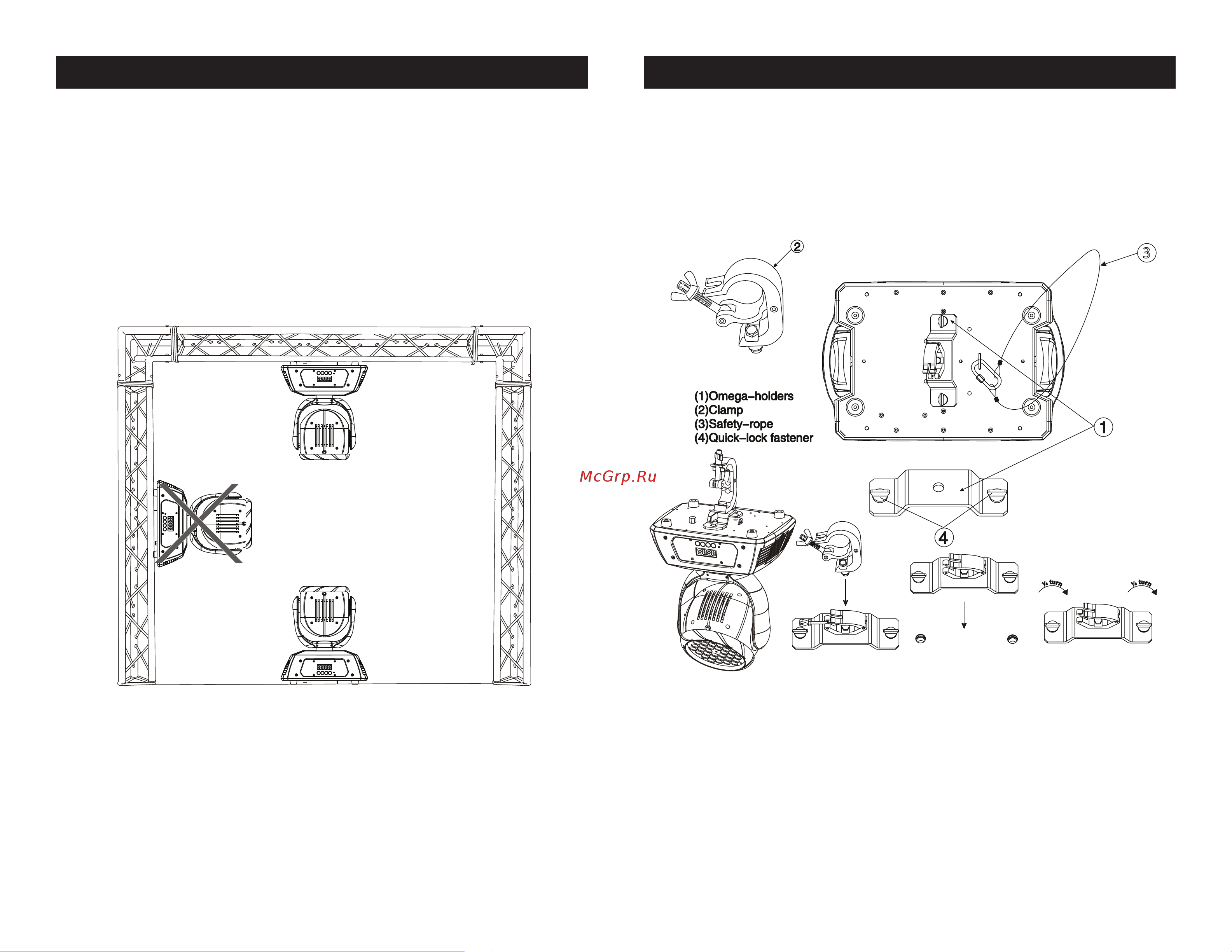

Vizi Wash LED 108 Mounting
The Vizi Wash LED 108 is fully operational in two different mounting
positions, hanging upside-down from a ceiling or set on a at level
surface. To avoid internal damage to the unit, never mount the unit on
its side as illustrated above. Be sure this xture is kept at least 0.5m
away from any ammable materials (decoration etc.). Always use
and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails (see next
page). Never use the carrying handles for secondary attachment.
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton have to be approved by a skilled person once a
year.
American DJ® - www.americandj.com - Vizi Wash LED 108 Instruction Manual Page 6
Vizi Wash LED 108 Mounting
Screw one clamp each via a M12 screw and nut onto the
Omega holders. Insert the quick-lock fasteners of the rst
Omega holder into the respective holes on the bottom of the
Vizi Wash LED 108. Tighten the quick-lock fasteners fully clock-
wise. Install the second Omega holder. Pull the safety-cable
through the holes on the bottom of the base and over the truss-
ing system or a safe xation spot. Insert the end in the carabine
and tighten the safety screw.
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.
