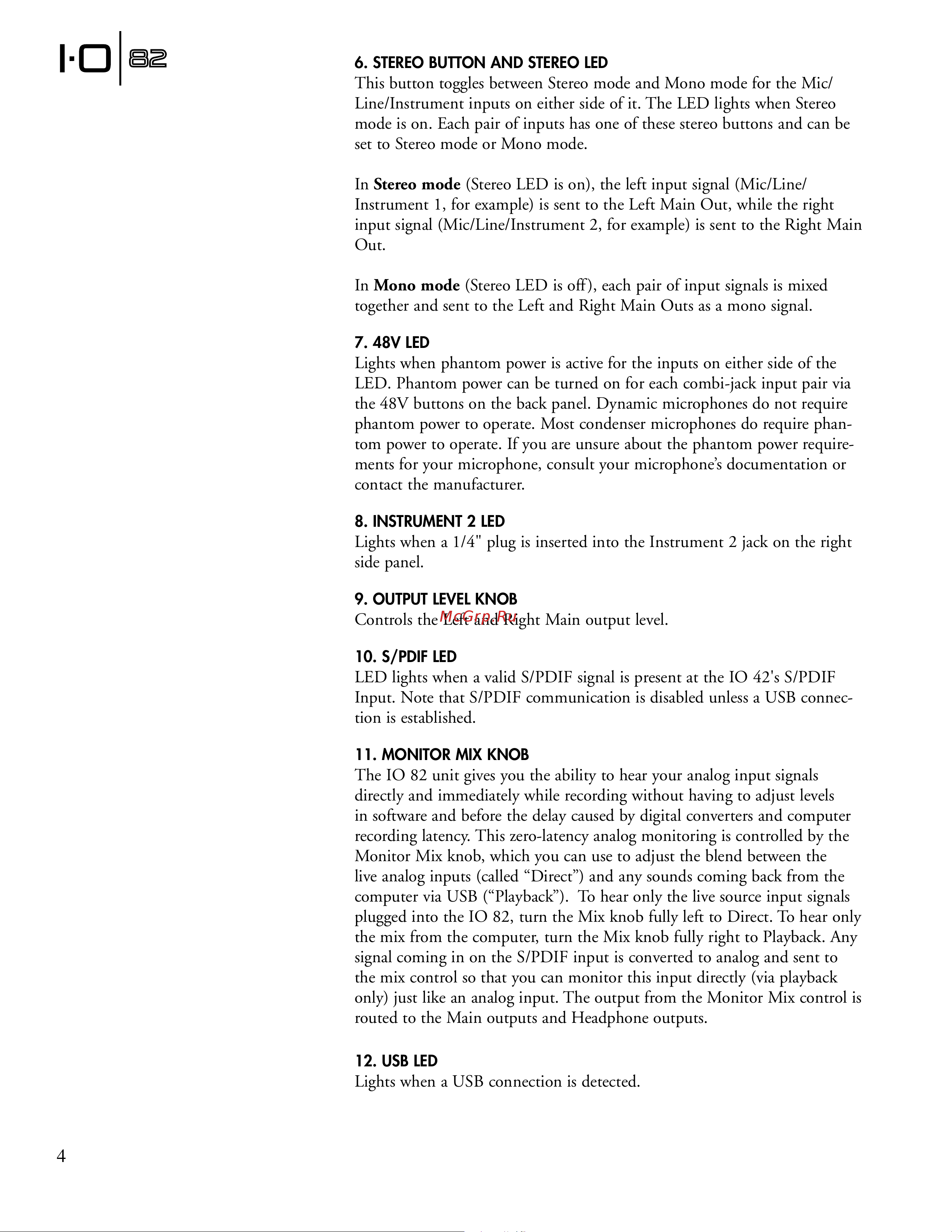

6. Stereo Button anD Stereo LeD

This button toggles between Stereo mode and Mono mode for the Mic/

Line/Instrument inputs on either side of it. The LED lights when Stereo

mode is on. Each pair of inputs has one of these stereo buttons and can be

set to Stereo mode or Mono mode.

In Stereo mode (Stereo LED is on), the left input signal (Mic/Line/

Instrument 1, for example) is sent to the Left Main Out, while the right

input signal (Mic/Line/Instrument 2, for example) is sent to the Right Main

Out.

In Mono mode (Stereo LED is off), each pair of input signals is mixed

together and sent to the Left and Right Main Outs as a mono signal.

7. 48v LeD

Lights when phantom power is active for the inputs on either side of the

LED. Phantom power can be turned on for each combi-jack input pair via

the 48V buttons on the back panel. Dynamic microphones do not require

phantom power to operate. Most condenser microphones do require phan-

tom power to operate. If you are unsure about the phantom power require-

ments for your microphone, consult your microphone’s documentation or

contact the manufacturer.

8. InStruMent 2 LeD

Lights when a 1/4" plug is inserted into the Instrument 2 jack on the right

side panel.

9. outPut LeveL KnoB

Controls the Left and Right Main output level.

10. S/PDIf LeD

LED lights when a valid S/PDIF signal is present at the IO 42's S/PDIF

Input. Note that S/PDIF communication is disabled unless a USB connec-

tion is established.

11. MonItor MIX KnoB

The IO 82 unit gives you the ability to hear your analog input signals

directly and immediately while recording without having to adjust levels

in software and before the delay caused by digital converters and computer

recording latency. This zero-latency analog monitoring is controlled by the

Monitor Mix knob, which you can use to adjust the blend between the

live analog inputs (called “Direct”) and any sounds coming back from the

computer via USB (“Playback”). To hear only the live source input signals

plugged into the IO 82, turn the Mix knob fully left to Direct. To hear only

the mix from the computer, turn the Mix knob fully right to Playback. Any

signal coming in on the S/PDIF input is converted to analog and sent to

the mix control so that you can monitor this input directly (via playback

only) just like an analog input. The output from the Monitor Mix control is

routed to the Main outputs and Headphone outputs.

12. uSB LeD

Lights when a USB connection is detected.
