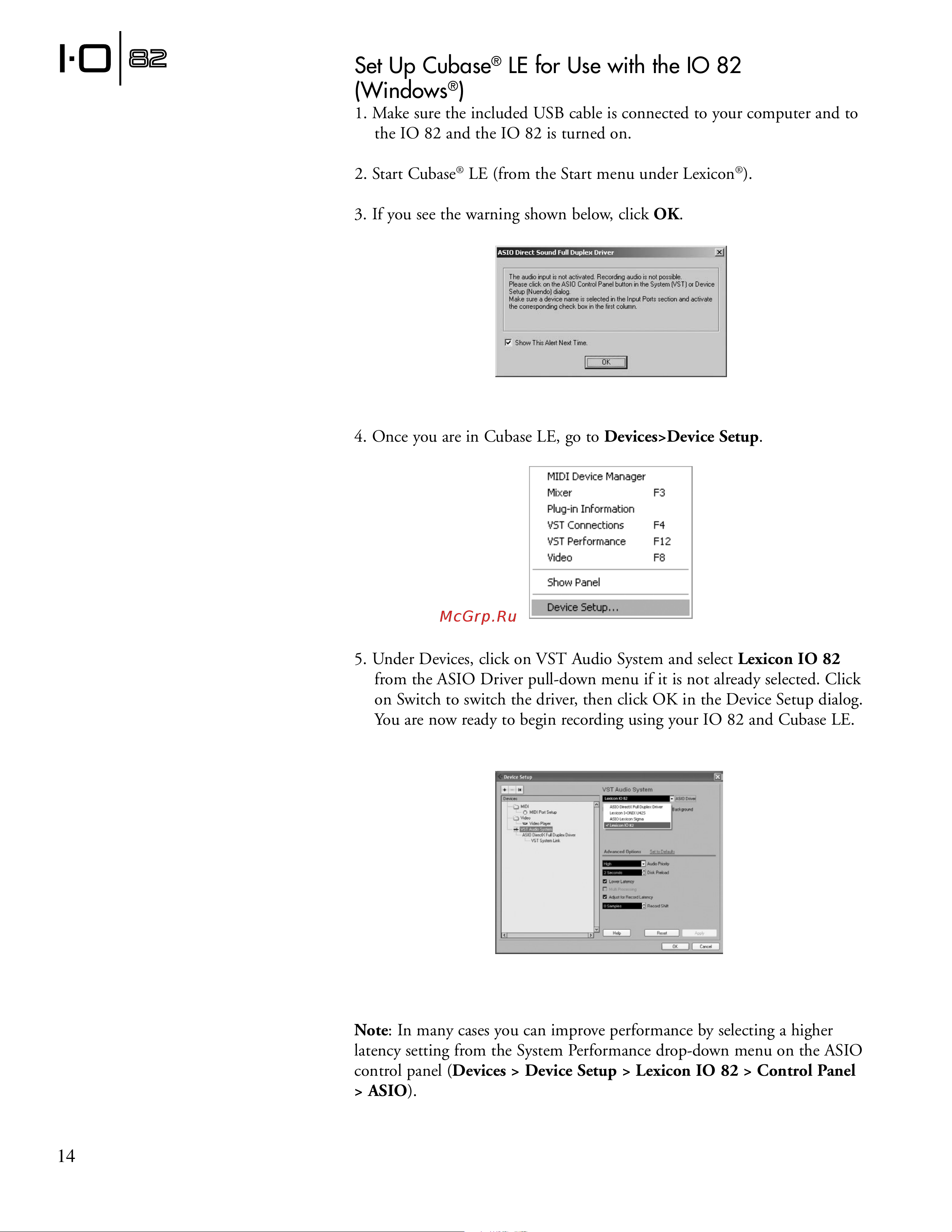

14
Set Up Cubase
®
LE for Use with the IO 82
(Windows
®
)
1. Make sure the included USB cable is connected to your computer and to
the IO 82 and the IO 82 is turned on.
2. Start Cubase
®
LE (from the Start menu under Lexicon
®
).
3. If you see the warning shown below, click OK.
4. Once you are in Cubase LE, go to Devices>Device Setup.
5. Under Devices, click on VST Audio System and select Lexicon IO 82
from the ASIO Driver pull-down menu if it is not already selected. Click
on Switch to switch the driver, then click OK in the Device Setup dialog.
You are now ready to begin recording using your IO 82 and Cubase LE.
Note: In many cases you can improve performance by selecting a higher
latency setting from the System Performance drop-down menu on the ASIO
control panel (Devices > Device Setup > Lexicon IO 82 > Control Panel
> ASIO).
