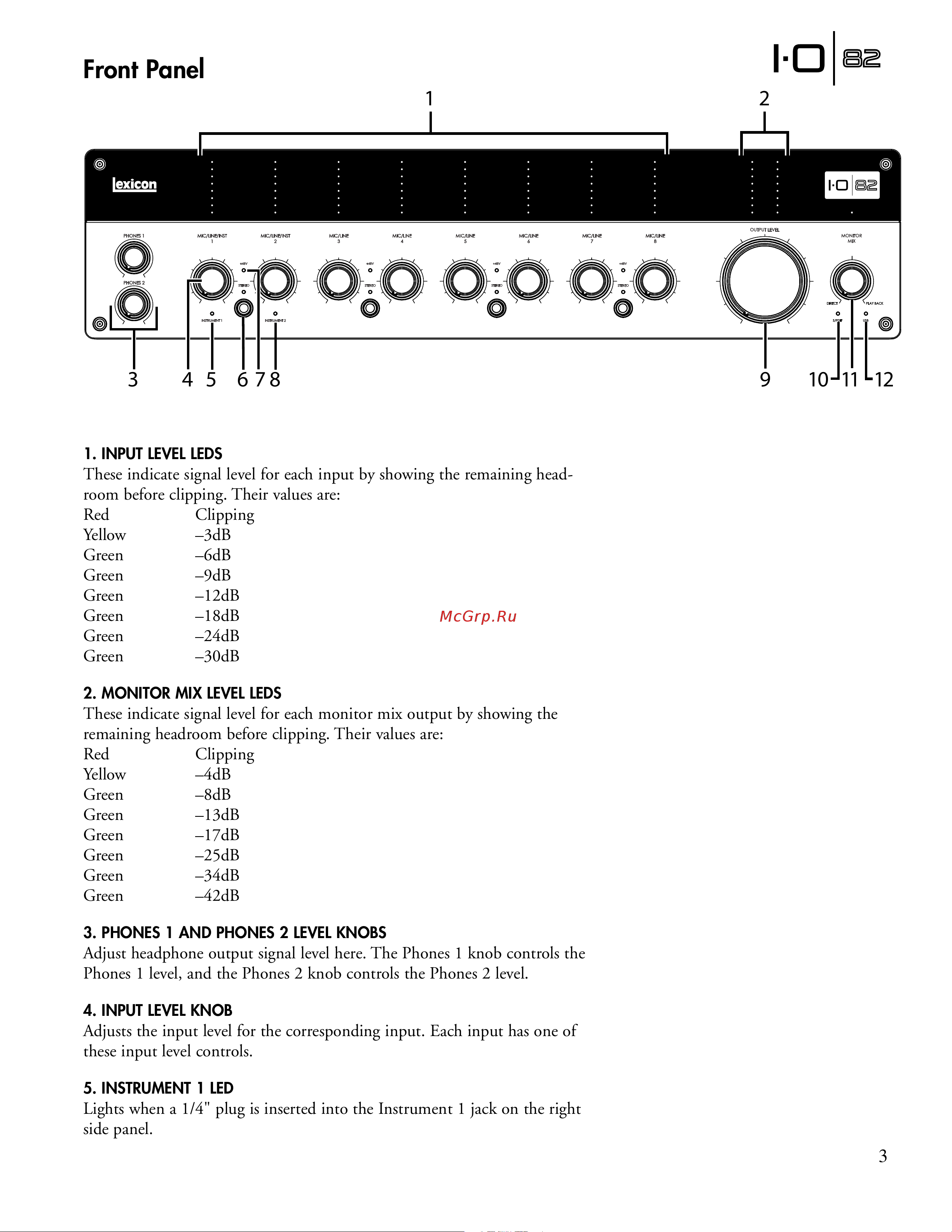

Front Panel

1 2

3 4 5

86 7 9 10 11 12

1. INPUT LEVEL LEDS

These indicate signal level for each input by showing the remaining head-

room before clipping. Their values are:

Red Clipping

Yellow –3dB

Green –6dB

Green –9dB

Green –12dB

Green –18dB

Green –24dB

Green –30dB

2. MONITOR MIX LEVEL LEDS

These indicate signal level for each monitor mix output by showing the

remaining headroom before clipping. Their values are:

Red Clipping

Yellow –4dB

Green –8dB

Green –13dB

Green –17dB

Green –25dB

Green –34dB

Green –42dB

3. PHONES 1 AND PHONES 2 LEVEL KNOBS

Adjust headphone output signal level here. The Phones 1 knob controls the

Phones 1 level, and the Phones 2 knob controls the Phones 2 level.

4. INPUT LEVEL KNOB

Adjusts the input level for the corresponding input. Each input has one of

these input level controls.

5. INSTRUMENT 1 LED

Lights when a 1/4" plug is inserted into the Instrument 1 jack on the right

side panel.
