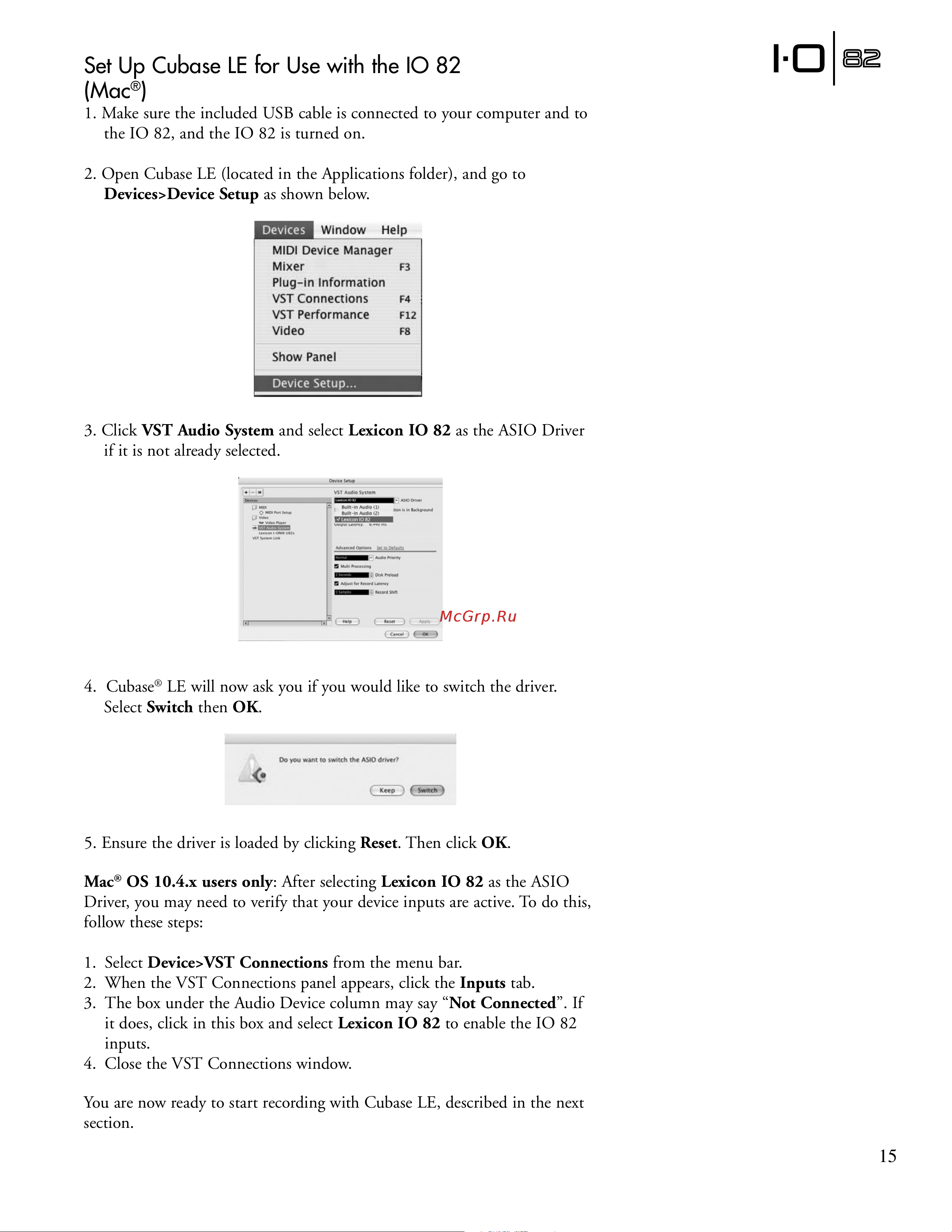

Set Up Cubase LE for Use with the IO 82

(Mac

)

1. Make sure the included USB cable is connected to your computer and to

the IO 82, and the IO 82 is turned on.

2. Open Cubase LE (located in the Applications folder), and go to

Devices>Device Setup as shown below.

3. Click VST Audio System and select Lexicon IO 82 as the ASIO Driver

if it is not already selected.

4. Cubase

LE will now ask you if you would like to switch the driver.

Select Switch then OK.

5. Ensure the driver is loaded by clicking Reset. Then click OK.

Mac

OS 10.4.x users only: After selecting Lexicon IO 82 as the ASIO

Driver, you may need to verify that your device inputs are active. To do this,

follow these steps:

1. Select Device>VST Connections from the menu bar.

2. When the VST Connections panel appears, click the Inputs tab.

3. The box under the Audio Device column may say “Not Connected”. If

it does, click in this box and select Lexicon IO 82 to enable the IO 82

inputs.

4. Close the VST Connections window.

You are now ready to start recording with Cubase LE, described in the next

section.
