Overview
1•5

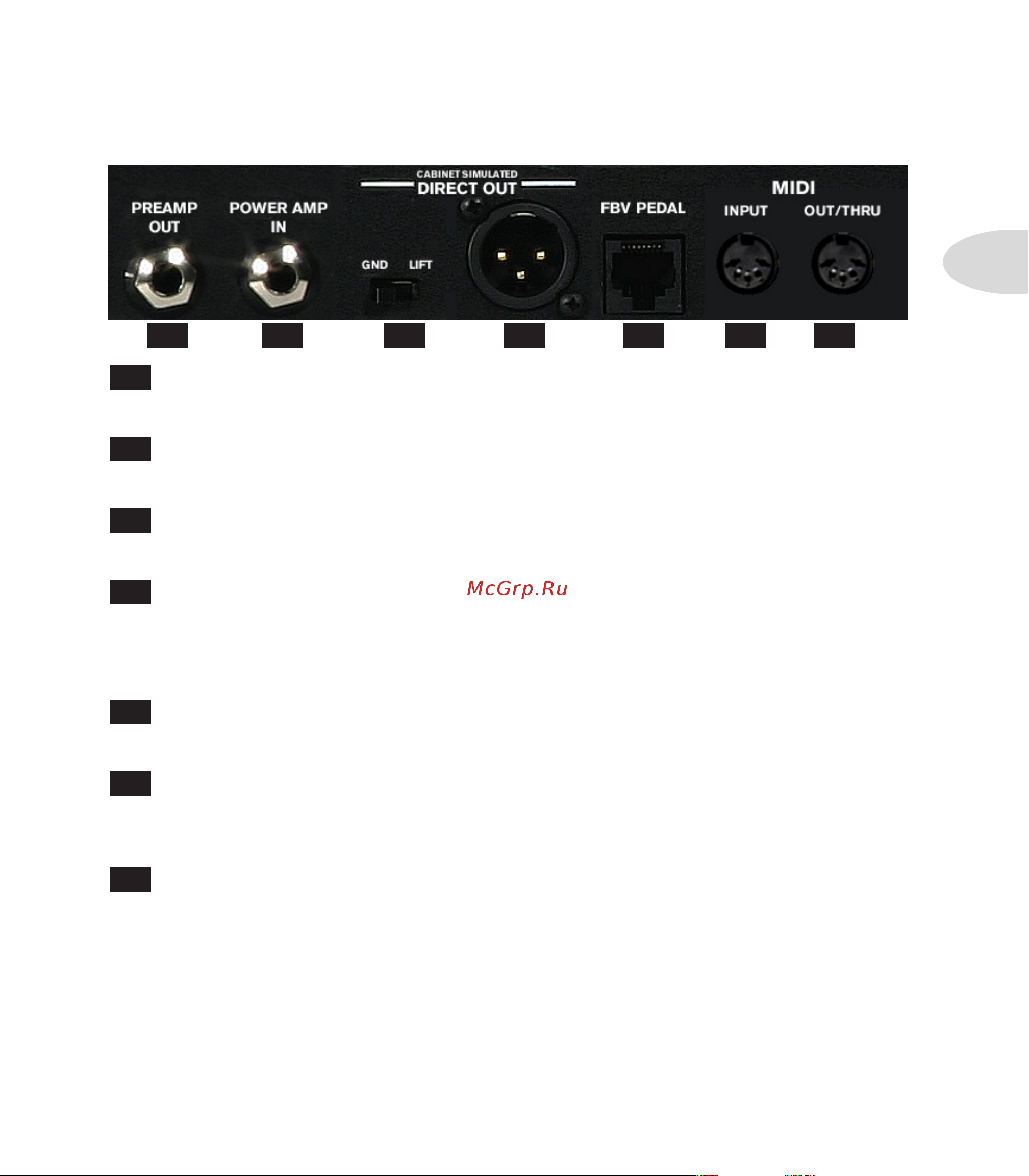

Rear Panel I/O
18
Preamp Out – Use the Preamp Out to send your Spider Valve MkII DSP Amp
and FX modeling output to an external power amp, guitar amp or FX device.
19
Power Amp In – Plug into your Bogner-designed power amp here. Some
players use a POD X3 or M13 as a front end, for example, driving the all-tube power amp.
20
Ground Lift – When using the Direct Out, you can lift the ground if desired.
This may help eliminate buzz when you have two different devices connected.
21
Direct Output – This jack is a Direct Output to connect your Spider Valve
MkII to a mixer, PA, computer DAW, recording interface or other line input equipment.
You can select Studio Mode or Performance Mode output via a Setup menu. See Chapter
3•4 for more details.
22
FBV Pedal Input – This jack is the standard Line 6 connector for FBV Foot
Controllers. You can now update your Spider Valve MkII’s firmware via FBV Mk II pedals.
23
MIDI Input – This is a standard MIDI Input jack. With a MIDI interface you
can send and receive Program Change and other MIDI messages to control your amp from
a computer. You can also update the amp’s firmware via MIDI.
24
MIDI Out/Thru – This is your MIDI Output jack. In addition to computer
interfacing you can daisy-chain multiple amps together and both amps will respond to
FBV foot controller messages (with v1.18 firmware or higher).
* For MIDI Program Change and CC info, see Appendix A: MIDI. You can also download
a comprehensive sysex MIDI spec at www.line6.com/manuals.
1918 20 21 22 23 24
