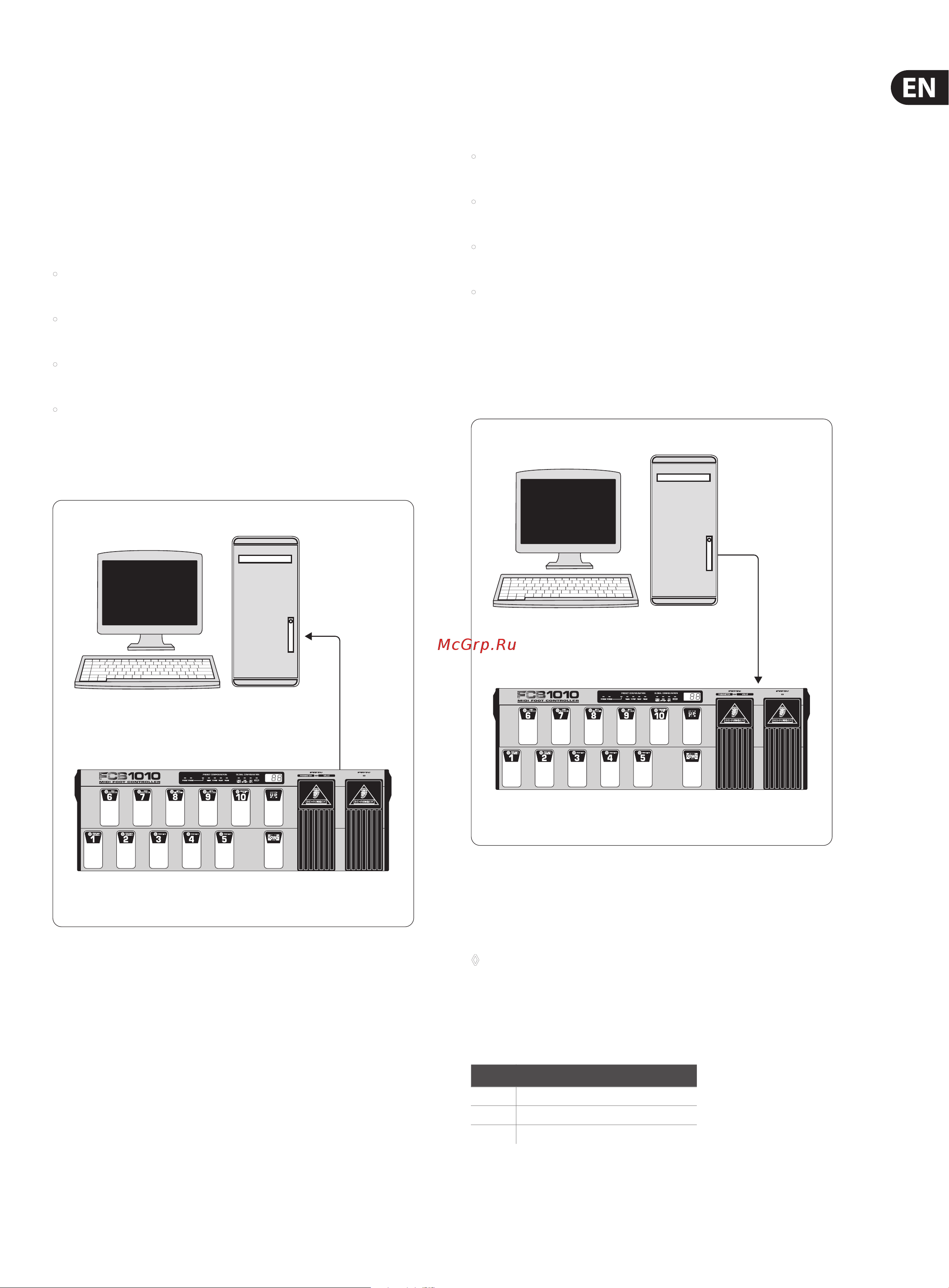

11 MIDI FOOT CONTROLLER FCB1010 User Manual
2.7 Data storage
2.7.1 Saving the FCB1010 memory with the help of
SysEx dumps
The FCB1010 allows you to transmit PRESETS in the form of system-exclusive
data to a sequencer or other MIDI recorder. In this way, you can save your data or
manage several MIDI set-ups (e.g. studio equipment, guitar equipment, etc.).
If you wish to save your data on an external sequencer/computer, please follow
the instructions below:
• Connect the MIDI OUT of your FCB1010 to the MIDI IN of your
sequencer/computer (see g. 2.5)
• Keep the DOWN switch pressed roughly 2.5 sec during power-up to enter the
GLOBAL CONFIGURATION menu.
• Press UP until the CONFIGURATION LED lights up. Now the unit is in
CONFIGURATION mode.
• Start the RECORD function on your sequencer/computer. The footswitch
LED lights up and is no longer lit up when all SysEx data from the FCB1010
have been transmitted. Then press footswitch #6 to dump the FCB1010
data. Quit the GLOBAL CONFIGURATION menu by means of a long press on
DOWN/ESCAPE.
Midi In
Midi Out
MIDI FOOT CONTROLLER FCB1010
Fig. 2.5: Sending a SysEx-Dump
2.7.2 Receiving SysEx dumps
To send back FCB1010 data stored on a sequencer/computer before, please follow
the instructions below:
• Connect the MIDI OUT connector of your sequencer or computer to the
MIDIIN connector of the FCB1010 (see g. 2.6).
• Keep the DOWN switch pressed during power-up to enter the
GLOBALCONFIGURATION menu.
• Press UP until the CONFIGURATION LED lights up. Now the unit is in
CONFIGURATION mode.
• Press footswitch #7 (SYSEX RCV) to “tell” the FCB1010 to wait for system-
exclusive data (the footswitch LED lights up). Start the PLAYBACK function
on your sequencer/computer to play back the previously stored le. Thefoot-
switch LED ashes while the FCB1010 is receiving data. Once the data have
been received correctly, the LED dies out. Now your programs are back in the
FCB1010’s memory. Quit GLOBAL CONFIGURATION mode by means of a long
press on DOWN.
MIDI FOOT CONTROLLER FCB1010
Midi Out
Midi In
Fig. 2.6: Receiving a SysEx dump
2.8 Restoring factory presets
This function allows you to restore factory defaults of your FCB1010.
◊ In doing so, all preset settings made by you are overwritten!
Resetting your FCB1010 lets you restore various default settings that are
optimized for use with BEHRINGER audio equipment. This is why there are three
dierent key combinations that let you reload the desired defaults into the
memory of your FCB1010. This key combinations are shown in table 2.5:
Switch Default setting for
1 + 6 V-AMP family products
1 + 7 BEHRINGER guitar amps
1 + 8 BASS V-AMP product range
Tab. 2.5: Reset key combinations
