5 MIDI FOOT CONTROLLER FCB1010 User Manual
(1) FOOTSWITCHES 1 through 10/0. These keys are used for changing
the presets, programming, entering values in programming mode and
activating the DIRECT SELECT function (10/0 only).
(2) UP/DOWN keys. These keys are used to navigate through dierent banks
and programming layers. When in programming mode, use the UP key for
ENTER (conrm) and the DOWN key for ESCAPE (cancel).
◊ When DIRECT SELECT mode is activated (see chapter 2 “Programming
the FCB1010”), the UP/DOWN switches are no longer needed for
BANK selection and are free to perform a special function: in the
GLOBAL CONFIGURATION menu you can program them to control the
SWITCH RELAYS (UP: SWITCH 1 RELAY, DOWN: SWITCH 2 RELAY). In this
case, you can toggle between the preprogrammed SWITCH settings,
each time you step on these switches.
(3) EXPRESSION PEDAL A. Allows you to change controller values continuously.
Inprogramming mode, the pedal is used for data entry.
(4) EXPRESSION PEDAL B. Allows you to change controller values continuously.
(5) STATUS LEDs. The yellow LEDs display the current status of the PRESET
programming or GLOBAL CONFIGURATION functions.
(6) LED DISPLAY. Informs you about the currently selected BANK/PRESET
number. In programming mode, it displays any value changes.
1.3.2 Rear panel
(7)
(8) (9) (10)

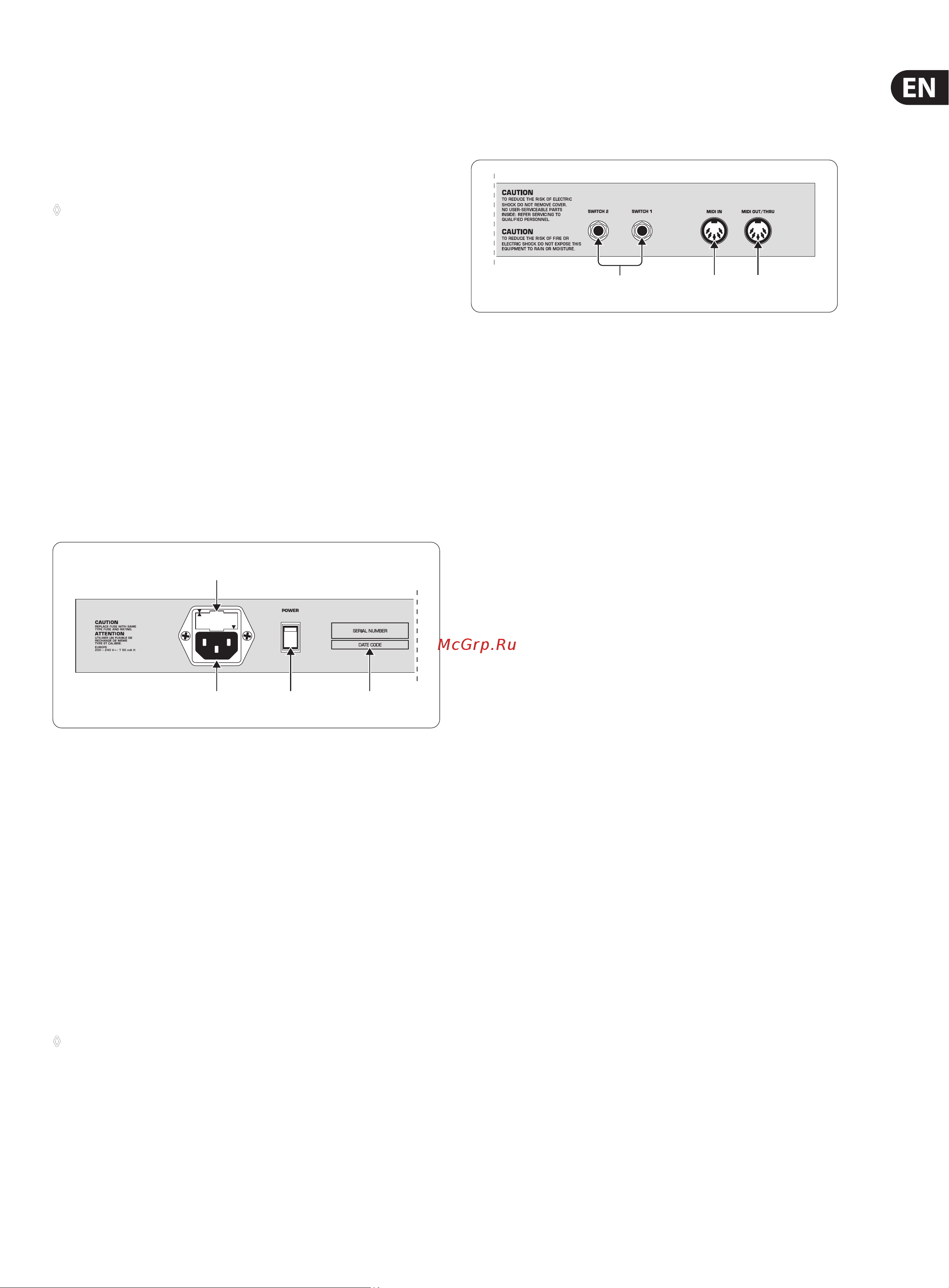

Fig. 1.2: Rear panel connectors
(7) FUSE HOLDER / VOLTAGE SELECTOR. Please make sure that your local
voltage matches the voltage indicated on the unit, before you attempt
to connect and operate the FCB1010. Blown fuses may only be replaced
by fuses of the same type and rating. Some models allow for inserting
the fuse holder in two dierent positions, in order to switch over from
230-V to 120-V operation, and vice versa. Please note that for 120-V
operation outside Europe, you need to use a fuse of a higher rating
(see chapter 6 “Specications”).
(8) IEC POWER CONNECTOR. Use the enclosed power cord to connect the unit
to the mains.
(9) Use the POWER switch to power up your FCB1010. Always make sure the
POWER switch is in its “O” setting when you connect the FCB1010 to
themains.
◊ Attention: The POWER switch does not physically disconnect the unit
from the mains. Always unplug the unit from the mains when you do
not plan on using it for prolonged periods of time.
(10) SERIAL NUMBER. Please take the time to have the warranty card lled out
completely, and return it within 14 days after the date of purchase, soas
to be entitled to benet from our extended warranty. Or use our online
registration option available on the World Wide Web under behringer.com.
(11) (12) (13)
Fig. 1.3: Rear panel connectors
(11) SWITCH 1 and 2. Use these jacks to connect your amplier for channel
selection (mono or stereo phone jack cable).
(12) MIDI IN. The MIDI IN of your FCB1010 connects to a sequencer or similar
device, in order to download the memory data saved before with
the help of the MIDI SysEx function. Additionally, data can be looped
through the FCB1010 and merged with other data using the MIDIMERGE
function. Subsequently, the combined data are available at the
MIDI OUT/THRUconnector.
(13) MIDI OUT/THRU. Use this jack to connect the devices you wish to control
from your FCB1010. The SOFT THRU circuit allows you to loop through any
signals present at the MIDI IN of your FCB1010, merge them with the unit’s
own data stream, and nally output the combined data at the MIDI OUT.
2. Programming the FCB1010
In this chapter you will learn to program your FCB1010 and adapt it to your
specic MIDI set-up. But don’t worry, you won’t have to learn a programming
language before you could give your FCB1010 a single MIDI command. The unit
will perform all functions for you, one after the other. Simply make and conrm
your choices. If particular functions prompt you to enter a parameter, this will be
covered specically.
2.1 Selecting BANKS and PRESETS
There are two options to select a BANK and the PRESETS it contains. Which one
you use depends on the DIRECT SELECT parameter in the GLOBAL CONFIGURATION
menu. If DIRECT SELECT is on, you can use the PRESET footswitches to directly
select the BANK number followed by the PRESET number. If DIRECT SELECT is
o, you need to step through the various BANKS (using the UP/DOWN switches),
thenselect a PRESET from a bank. The default setting is OFF. The illustrations
below show the two options.
