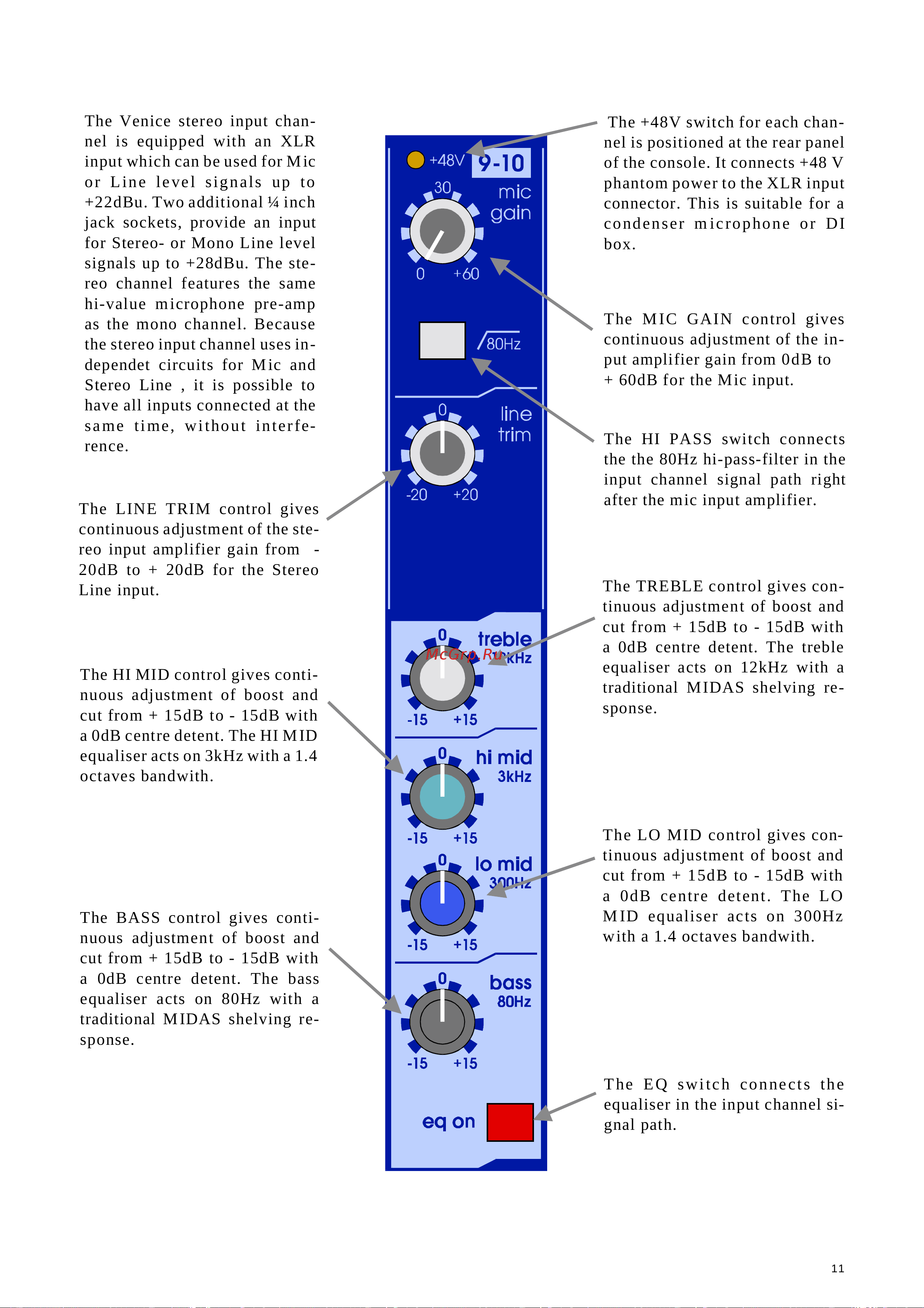

The Venice stereo input chan-

nel is equipped with an XLR

input which can be used for Mic

or Line level signals up to

+22dBu. Two additional ¼ inch

jack sockets, provide an input

for Stereo- or Mono Line level

signals up to +28dBu. The ste-

reo channel features the same

hi-value microphone pre-amp

as the mono channel. Because

the stereo input channel uses in-

dependet circuits for Mic and

Stereo Line , it is possible to

have all inputs connected at the

same time, without interfe-

rence.

The +48V switch for each chan-

nel is positioned at the rear panel

of the console. It connects +48 V

phantom power to the XLR input

connector. This is suitable for a

condenser microphone or DI

box.

The MIC GAIN control gives

continuous adjustment of the in-

put amplifier gain from 0dB to

+ 60dB for the Mic input.

The HI PASS switch connects

the the 80Hz hi-pass-filter in the

input channel signal path right

after the mic input amplifier.

The LINE TRIM control gives

continuous adjustment of the ste-

reo input amplifier gain from -

20dB to + 20dB for the Stereo

Line input.

The TREBLE control gives con-

tinuous adjustment of boost and

cut from + 15dB to - 15dB with

a 0dB centre detent. The treble

equaliser acts on 12kHz with a

traditional MIDAS shelving re-

sponse.

The HI MID control gives conti-

nuous adjustment of boost and

cut from + 15dB to - 15dB with

a 0dB centre detent. The HI MID

equaliser acts on 3kHz with a 1.4

octaves bandwith.

The LO MID control gives con-

tinuous adjustment of boost and

cut from + 15dB to - 15dB with

a 0dB centre detent. The LO

MID equaliser acts on 300Hz

with a 1.4 octaves bandwith.

The BASS control gives conti-

nuous adjustment of boost and

cut from + 15dB to - 15dB with

a 0dB centre detent. The bass

equaliser acts on 80Hz with a

traditional MIDAS shelving re-

sponse.

The EQ switch connects the

equaliser in the input channel si-

gnal path.
