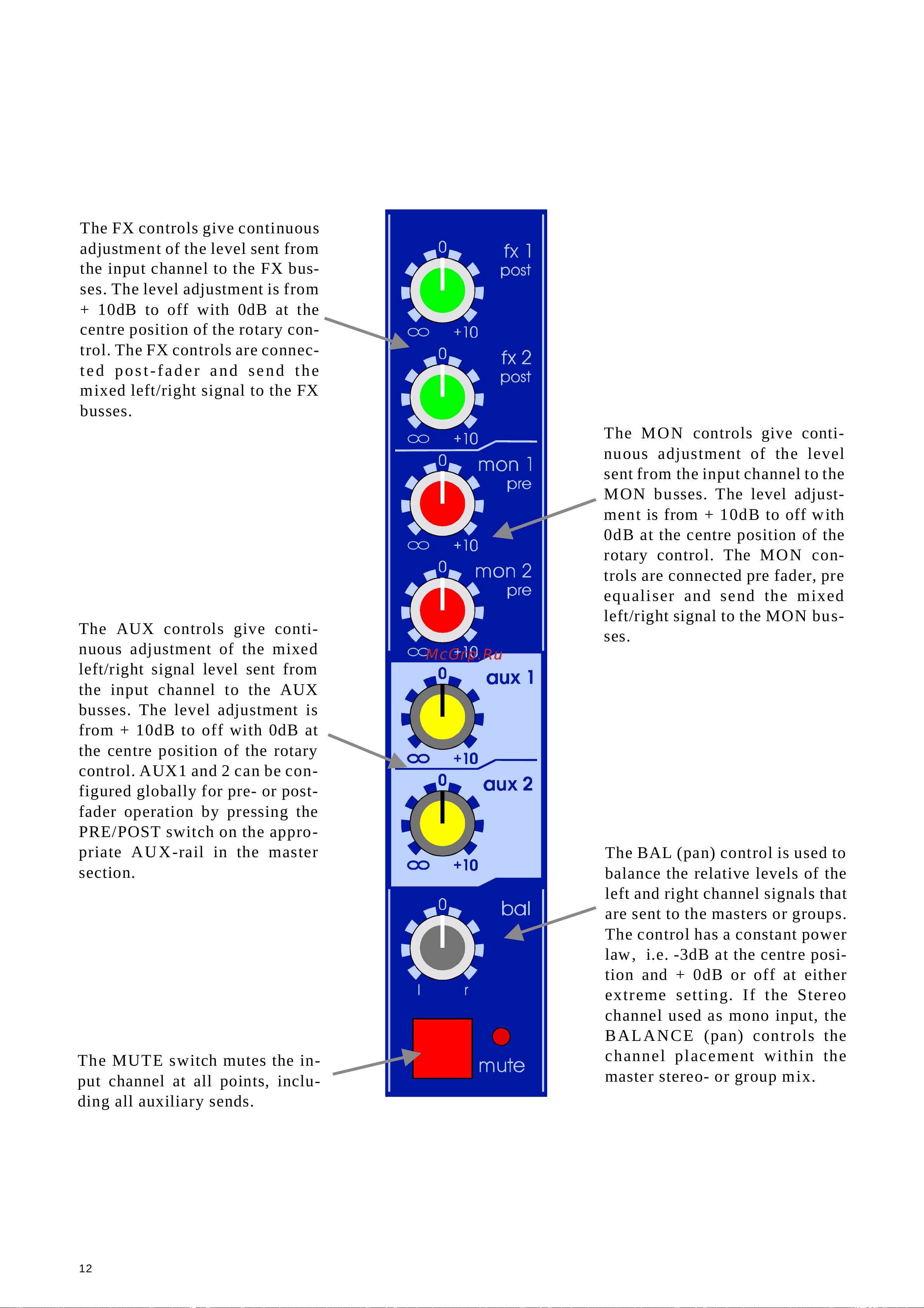

The FX controls give continuous

adjustment of the level sent from

the input channel to the FX bus-

ses. The level adjustment is from

+ 10dB to off with 0dB at the

centre position of the rotary con-

trol. The FX controls are connec-

ted post-fader and send the

mixed left/right signal to the FX

busses.

The MON controls give conti-

nuous adjustment of the level

sent from the input channel to the

MON busses. The level adjust-

ment is from + 10dB to off with

0dB at the centre position of the

rotary control. The MON con-

trols are connected pre fader, pre

equaliser and send the mixed

left/right signal to the MON bus-

ses.

The AUX controls give conti-

nuous adjustment of the mixed

left/right signal level sent from

the input channel to the AUX

busses. The level adjustment is

from + 10dB to off with 0dB at

the centre position of the rotary

control. AUX1 and 2 can be con-

figured globally for pre- or post-

fader operation by pressing the

PRE/POST switch on the appro-

priate AUX-rail in the master

section.

The BAL (pan) control is used to

balance the relative levels of the

left and right channel signals that

are sent to the masters or groups.

The control has a constant power

law, i.e. -3dB at the centre posi-

tion and + 0dB or off at either

extreme setting. If the Stereo

channel used as mono input, the

BALANCE (pan) controls the

channel placement within the

master stereo- or group mix.

The MUTE switch mutes the in-

put channel at all points, inclu-

ding all auxiliary sends.
