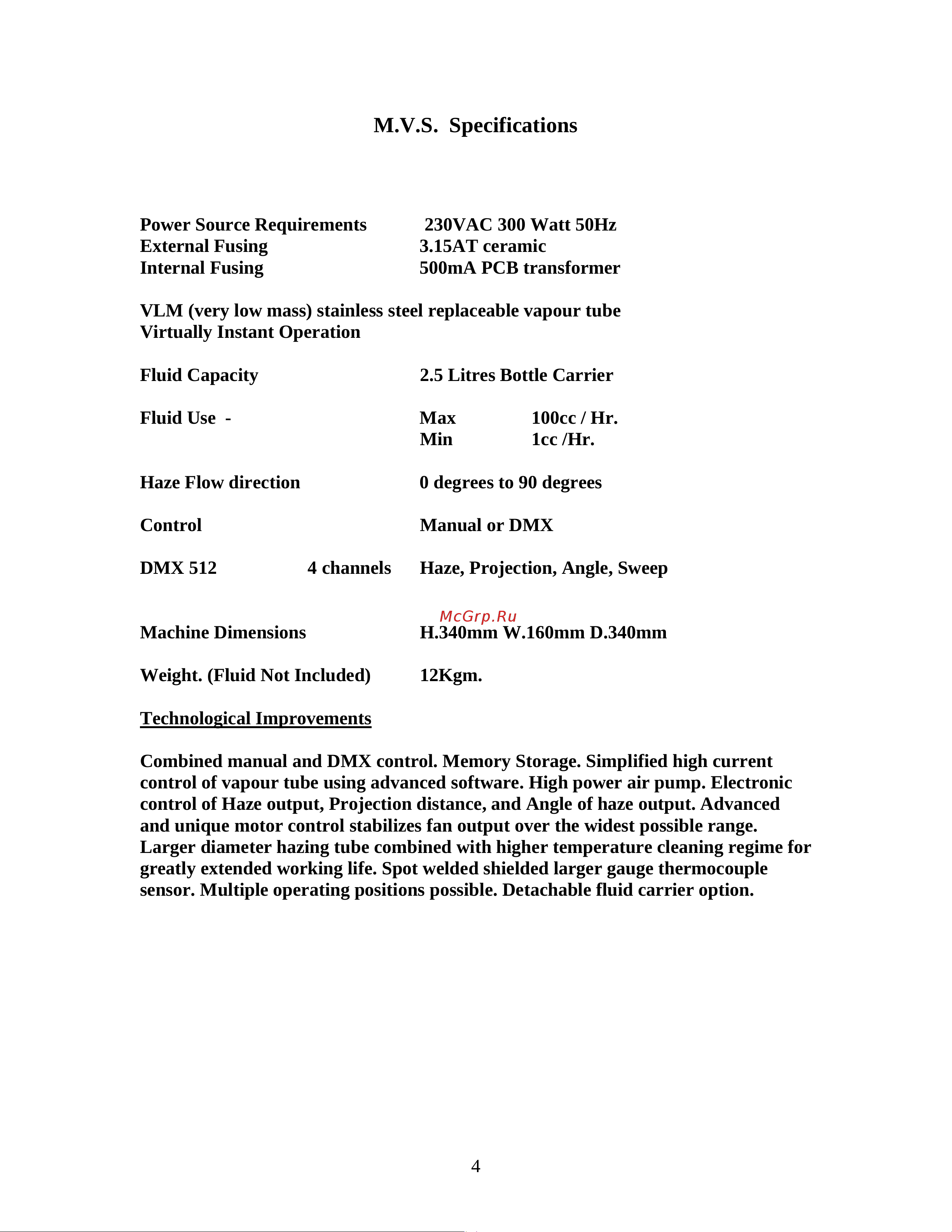

M.V.S. Specifications

Power Source Requirements 230VAC 300 Watt 50Hz

External Fusing 3.15AT ceramic

Internal Fusing 500mA PCB transformer

VLM (very low mass) stainless steel replaceable vapour tube

Virtually Instant Operation

Fluid Capacity 2.5 Litres Bottle Carrier

Fluid Use - Max 100cc / Hr.

Min 1cc /Hr.

Haze Flow direction 0 degrees to 90 degrees

Control Manual or DMX

DMX 512 4 channels Haze, Projection, Angle, Sweep

Machine Dimensions H.340mm W.160mm D.340mm

Weight. (Fluid Not Included) 12Kgm.

Technological Improvements

Combined manual and DMX control. Memory Storage. Simplified high current

control of vapour tube using advanced software. High power air pump. Electronic

control of Haze output, Projection distance, and Angle of haze output. Advanced

and unique motor control stabilizes fan output over the widest possible range.

Larger diameter hazing tube combined with higher temperature cleaning regime for

greatly extended working life. Spot welded shielded larger gauge thermocouple

sensor. Multiple operating positions possible. Detachable fluid carrier option.
