LE MAITRE MVS HAZER [9/11] Modes of use and positioning

set to ‘not use’ then that channel is available for other devices and will not be

responded to. Again, to commit these settings to memory, use the Manual and Store

buttons together.

Once the DMX parameters are set, then use the DMX button to change the mode of

the panel into DMX control. If DMX control is desired from switch on, then commit

the DMX control to memory by pressing the DMX and Store buttons together.

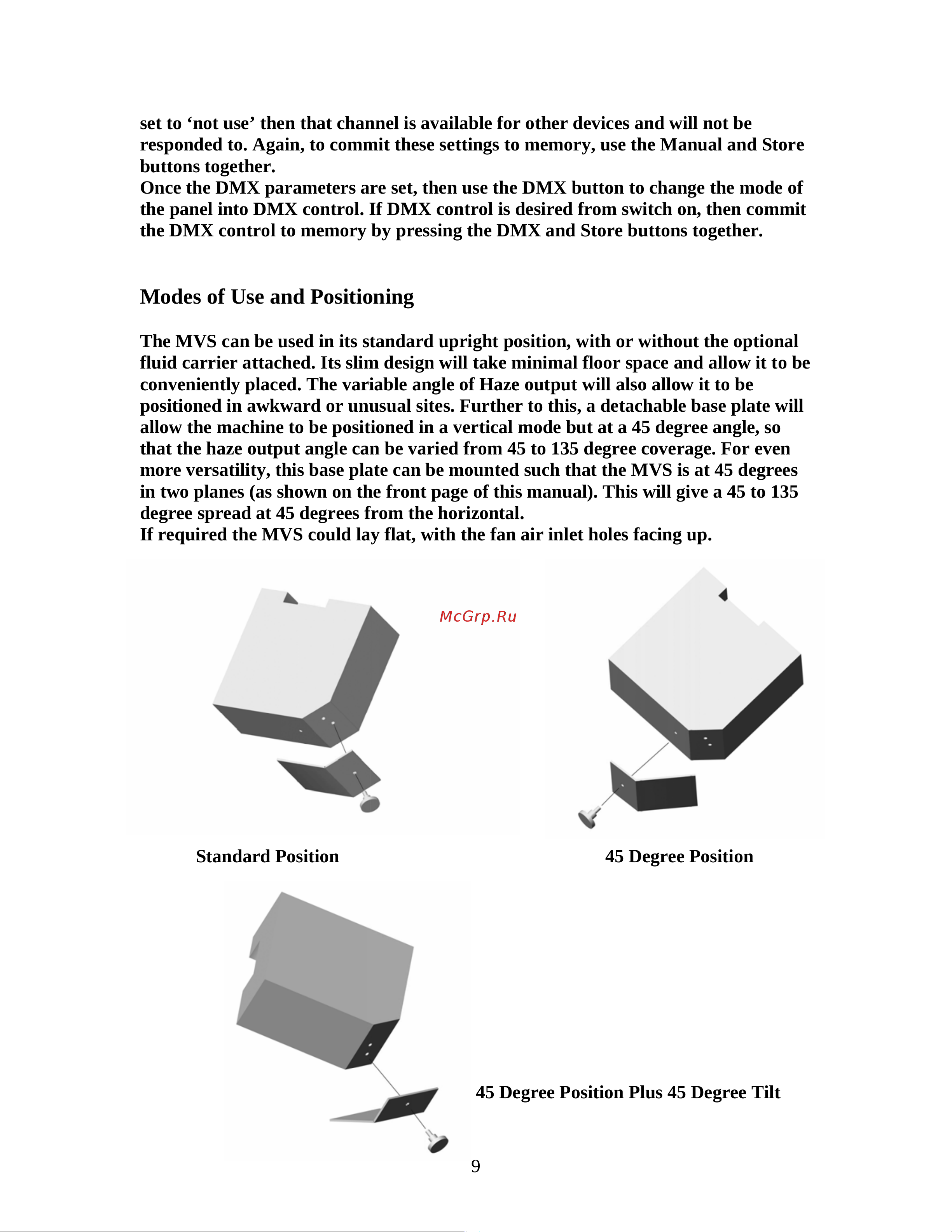

Modes of Use and Positioning

The MVS can be used in its standard upright position, with or without the optional

fluid carrier attached. Its slim design will take minimal floor space and allow it to be

conveniently placed. The variable angle of Haze output will also allow it to be

positioned in awkward or unusual sites. Further to this, a detachable base plate will

allow the machine to be positioned in a vertical mode but at a 45 degree angle, so

that the haze output angle can be varied from 45 to 135 degree coverage. For even

more versatility, this base plate can be mounted such that the MVS is at 45 degrees

in two planes (as shown on the front page of this manual). This will give a 45 to 135

degree spread at 45 degrees from the horizontal.

If required the MVS could lay flat, with the fan air inlet holes facing up.

Standard Position 45 Degree Position

45 Degree Position Plus 45 Degree Tilt
