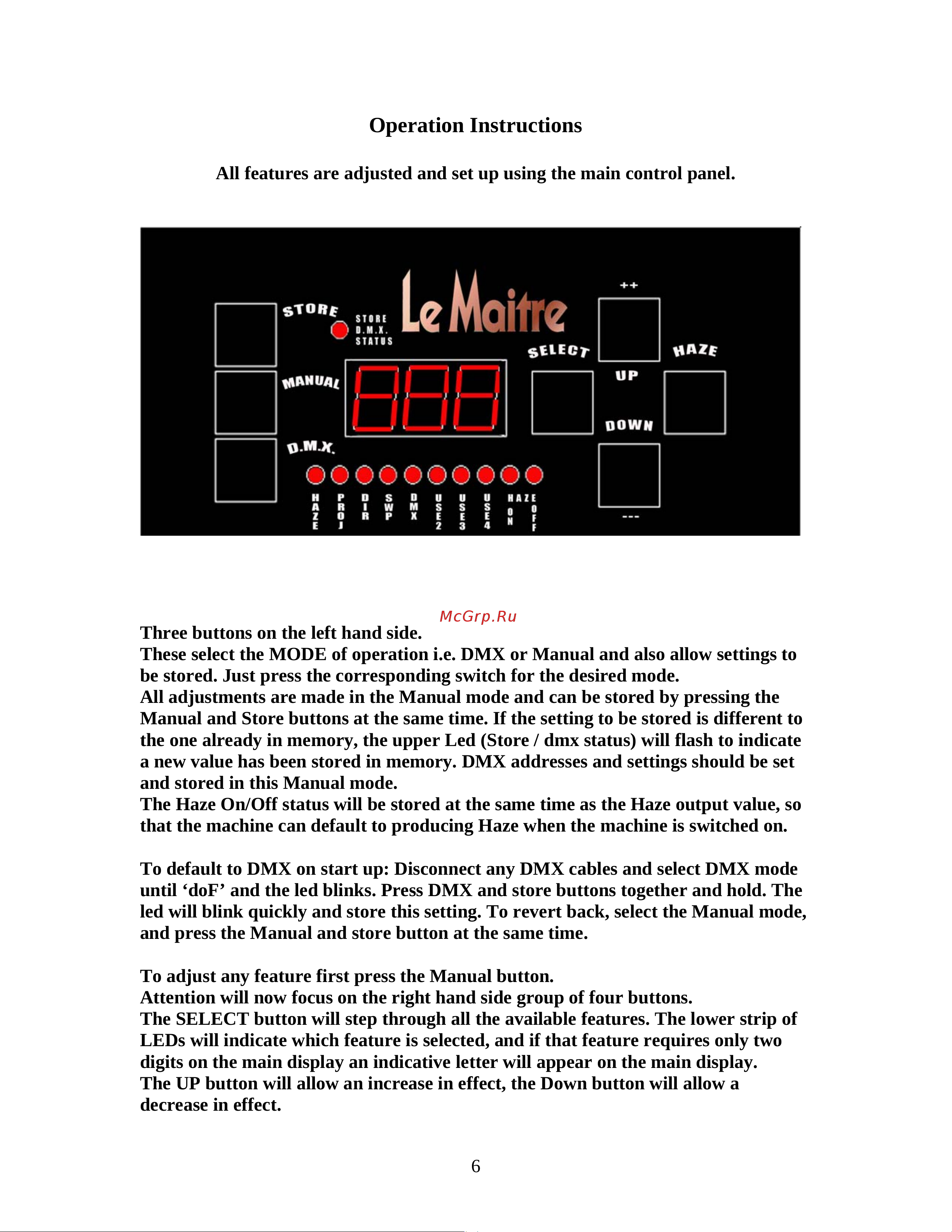

Operation Instructions

All features are adjusted and set up using the main control panel.

Three buttons on the left hand side.

These select the MODE of operation i.e. DMX or Manual and also allow settings to

be stored. Just press the corresponding switch for the desired mode.

All adjustments are made in the Manual mode and can be stored by pressing the

Manual and Store buttons at the same time. If the setting to be stored is different to

the one already in memory, the upper Led (Store / dmx status) will flash to indicate

a new value has been stored in memory. DMX addresses and settings should be set

and stored in this Manual mode.

The Haze On/Off status will be stored at the same time as the Haze output value, so

that the machine can default to producing Haze when the machine is switched on.

To default to DMX on start up: Disconnect any DMX cables and select DMX mode

until ‘doF’ and the led blinks. Press DMX and store buttons together and hold. The

led will blink quickly and store this setting. To revert back, select the Manual mode,

and press the Manual and store button at the same time.

To adjust any feature first press the Manual button.

Attention will now focus on the right hand side group of four buttons.

The SELECT button will step through all the available features. The lower strip of

LEDs will indicate which feature is selected, and if that feature requires only two

digits on the main display an indicative letter will appear on the main display.

The UP button will allow an increase in effect, the Down button will allow a

decrease in effect.
