Assembly

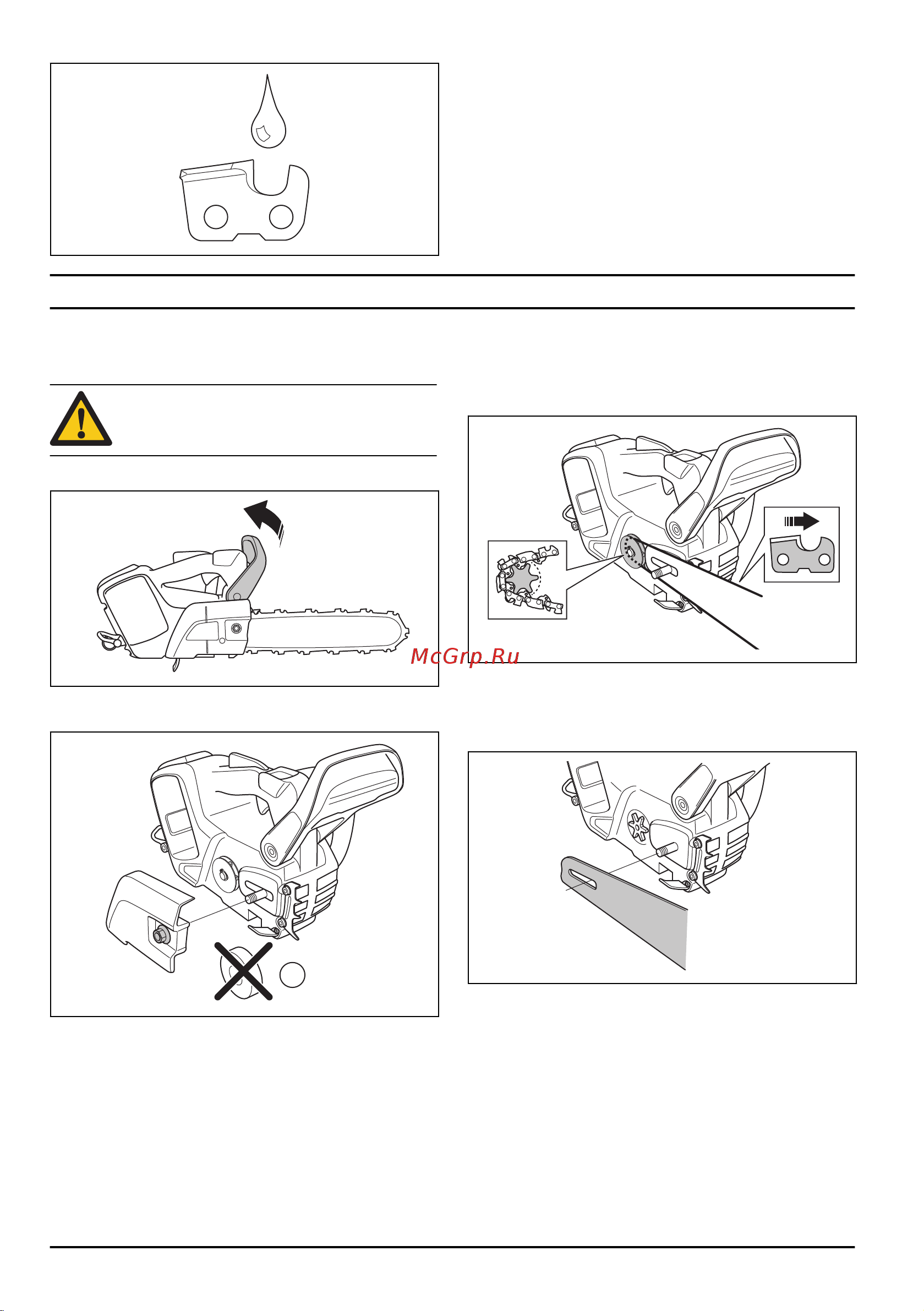

To assemble the guide bar and saw

chain

WARNING: Always remove the battery

before you assemble or do maintenance on

the product.

1. Disengage the chain brake.

2. Remove the bar nut, the drive sprocket cover and

the transportation ring (A).

3. Put the guide bar on top of the bar bolt. Steer the

guide bar to its most rear position. Lift the saw chain

above the drive sprocket and engage it in the groove

on the guide bar. Start on the top edge of the guide

bar.

4. Make sure that the edges of the cutting links are

turned forward on the top edge of the guide bar.

5. Assemble the drive sprocket cover and steer the

chain adjuster pin to the hole in the guide bar.

6. Make sure that the drive links of the saw chain fit

correctly on the drive sprocket.

7. Make sure that the saw chain is correctly engaged in

the groove in the guide bar.

8. Tighten the bar nut finger-tight.

9. Tighten the saw chain. See

To tighten the saw chain

on page 23

for instructions.
