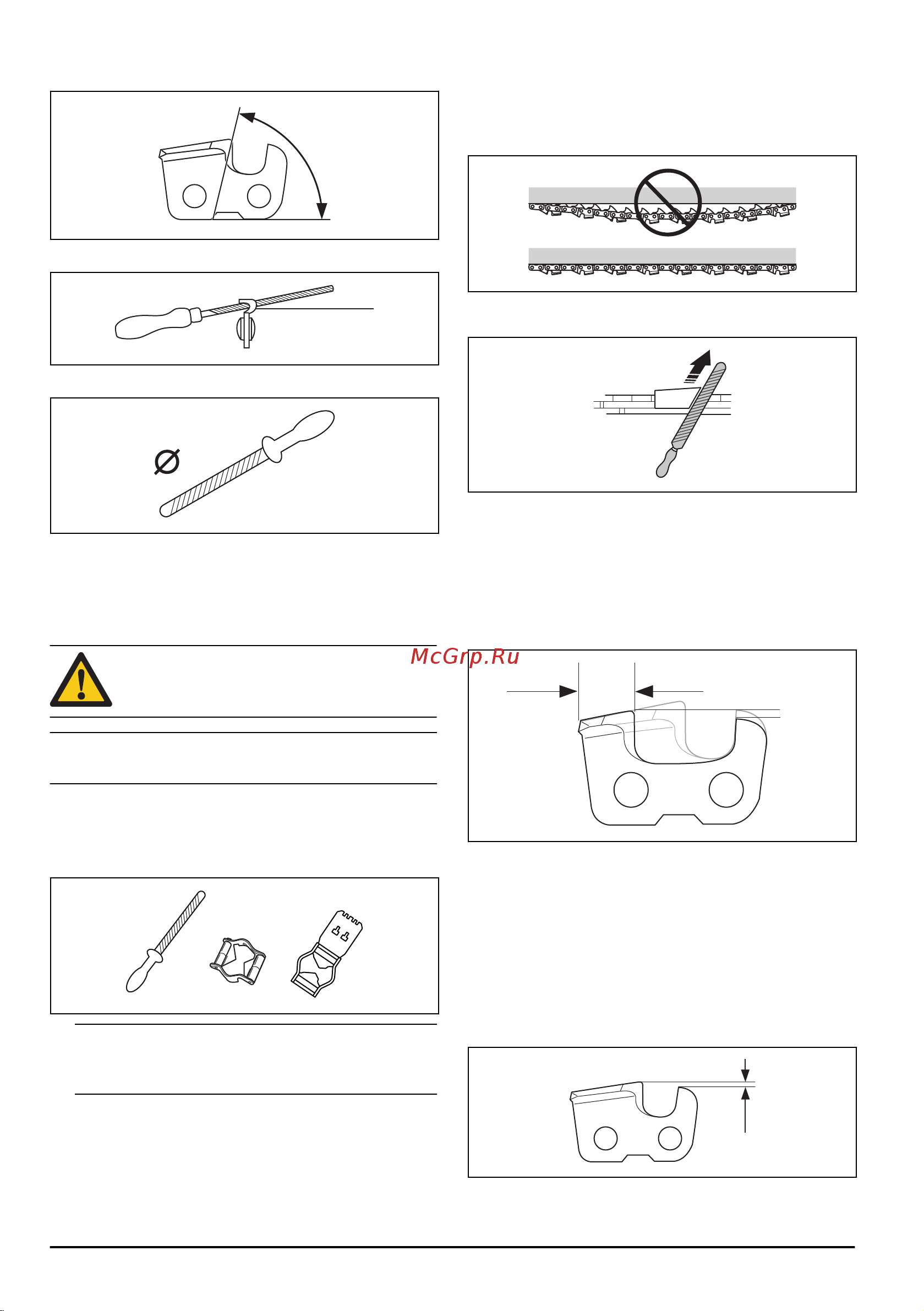

• Cutting angle.
• File position.
• Round file diameter.
It is not easy to sharpen a saw chain correctly without
the correct equipment. We recommend that you use
Husqvarna file gauge. This will help you to keep
maximum cutting performance and the kickback risk at a
minimum.
WARNING: The risk of kickback increases a
lot if you do not follow the sharpening
instructions.
Note: See
Filing equipment and filing angles on page
29
for information about sharpening of the saw chain.
To sharpen the cutting teeth
1. Use a round file and a file gauge to sharpen the
cutting teeth.
Note:
See
Filing equipment and filing angles on page
29
for information about which file and gauge that
Husqvarna recommends for your saw chain.
2. Make sure that the saw chain has the correct
tension. A saw chain without the correct tension
moves from side to side. This does not make it easy
to sharpen the saw chain. See
To tighten the saw
chain on page 23
for instructions.
3. Move the file from the inner side of the cutting teeth
and out. Decrease the pressure on the pull stroke.
4. Remove filing material on all teeth on one side first.
5. Turn the product around and remove filing material
on the other side.
6. Make sure that the all cutting teeth become the
same length when you remove filing material.
7. The saw chain is worn out when the cutting teeth is
decreased to 4 mm (0.16"). Replace the saw chain.
General information about how to adjust the
depth gauge setting
The depth gauge setting (C) decreases when you
sharpen the cutting tooth (A). To keep maximum cutting
performance you must remove filing material from the
depth gauge (B) to receive the recommended depth
gauge setting. See
Filing equipment and filing angles on
page 29
for instructions about how to receive the
correct depth gauge setting for your saw chain.
A
B
C
22
959 - 004 - 22.01.2019
