Pioneer DEH-1320MP [5/64] Using an aux source

Other Functions

Important

SAVE (power saving) is cancelled if the vehicle

battery is disconnected and will need to be

turned back on once the battery is reconnected.

When SAVE (power saving) is off, depending on

connection methods, the unit may continue to

draw power from the battery if your vehicle's igni-

tion switch doesn't have an ACC (accessory posi-

tion).

Adjusting initial settings

1 Press SRC/OFF and hold until the unit

turns off.

2 Press SRC/OFF and hold until function

name appears in the display.

3 Press FUNC to select the initial setting.

After selecting, perform the following proce-

dures to set the initial setting.

FM (FM tuning step)

Normally, the FM tuning step employed by seek tun-

ing is 50 kHz. When AF or TA is on, the tuning step

automatically changes to 100 kHz. It may be prefer-

able to set the tuning step to 50 kHz when AF is on.

! The tuning step remains at 50 kHz during manual

tuning.

1 Press c or d to select the FM tuning step.

50 (50 kHz)—100 (100 kHz)

A-PI (auto PI seek)

The unit can automatically search for a different sta-

tion with the same programming, even during preset

recall.

1 Press a or b to turn Auto PI seek on or off.

AUX (auxiliary input)

Activate this setting when using an auxiliary device

connected to this unit.

1 Press a or b to turn auxiliary setting on or off.

SAVE (power saving)

Switching this function on enables you to reduce the

consumption of battery power.

! Turning on the source is the only operation al-

lowed when this function is on.

1 Press a or b to turn the power save on or off.

TITLE (multi language)

This unit can display the text information of a com-

pressed audio file even if they are embedded in a

Western European or Russian language.

! If the embedded language and the selected lan-

guage setting are not the same, text information

may not be displayed properly.

! Some characters may not be displayed properly.

1 Press c or d to select the language.

EUR (European)—RUS (Russian)

Using an AUX source

1 Insert the stereo mini plug into the

AUX input jack.

2 Press SRC/OFF to select AUX as the

source.

# AUX cannot be selected unless the auxiliary

setting is turned on. For more details, refer to

AUX (auxiliary input) on this page.

Sound muting

Sound is muted automatically when:

! A call is made or received using a cell

phone connected to this unit.

! Voice guidance is output from a connected

Pioneer navigation unit.

The sound is turned off, MUTE is displayed

and no audio adjustments, except volume con-

trol, are possible. Operation returns to normal

when the phone connection or the voice gui-

dance is ended.

Section

Operating this unit

Connections

Important

! When installing this unit in a vehicle without

an ACC (accessory) position on the ignition

switch, failure to connect the red cable to the

terminal that detects operation of the ignition

key may result in battery drain.

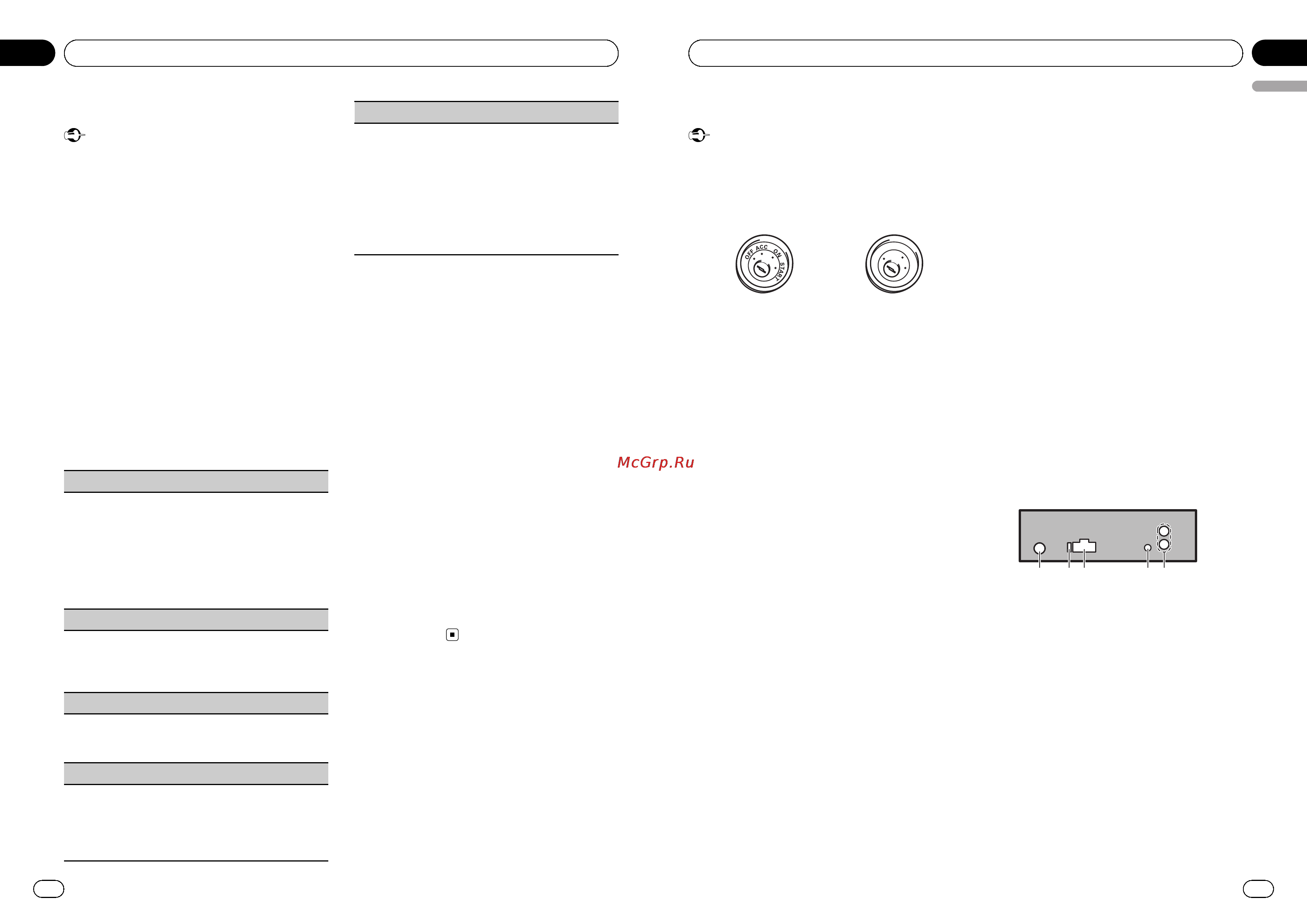

ACC position No ACC position

! Use of this unit in conditions other than the

following could result in fire or malfunction.

— Vehicles with a 12-volt battery and negative

grounding.

— Speakers with 50 W (output value) and 4

ohm to 8 ohm (impedance value).

! To prevent a short-circuit, overheating or mal-

function, be sure to follow the directions

below.

— Disconnect the negative terminal of the

battery before installation.

— Secure the wiring with cable clamps or ad-

hesive tape. Wrap adhesive tape around

wiring that comes into contact with metal

parts to protect the wiring.

— Place all cables away from moving parts,

such as the gear shift and seat rails.

— Place all cables away from hot places,

such as near the heater outlet.

— Do not connect the yellow cable to the bat-

tery by passing it through the hole to the

engine compartment.

— Cover any disconnected cable connectors

with insulating tape.

— Do not shorten any cables.

— Never cut the insulation of the power cable

of this unit in order to share the power

with other devices. The current capacity of

the cable is limited.

— Use a fuse of the rating prescribed.

— Never wire the negative speaker cable di-

rectly to ground.

— Never band together negative cables of

multiple speakers.

! When this unit is on, control signals are sent

through the blue/white cable. Connect this

cable to the system remote control of an exter-

nal power amp or the vehicle’s auto-antenna

relay control terminal (max. 300 mA 12 V DC).

If the vehicle is equipped with a glass anten-

na, connect it to the antenna booster power

supply terminal.

! Never connect the blue/white cable to the

power terminal of an external power amp.

Also, never connect it to the power terminal of

the auto antenna. Doing so may result in bat-

tery drain or a malfunction.

! The black cable is ground. Ground cables for

this unit and other equipment (especially,

high-current products such as power amps)

must be wired separately. If they are not, an

accidental detachment may result in a fire or

malfunction.

This unit

123 4 5

1 Antenna input

2 Fuse (10 A)

3 Power cord input

4 Wired remote input

Hard-wired remote control adaptor can be

connected (sold separately).

5 Rear output

English

Section

Installation

<QRD3059-A/N>5
