Dunavox DAU-40.138SS [6/20] Reversing the door hinge
![Dunavox DAU-40.138SS [6/20] Reversing the door hinge](/views2/2014126/page6/bg6.png)
66

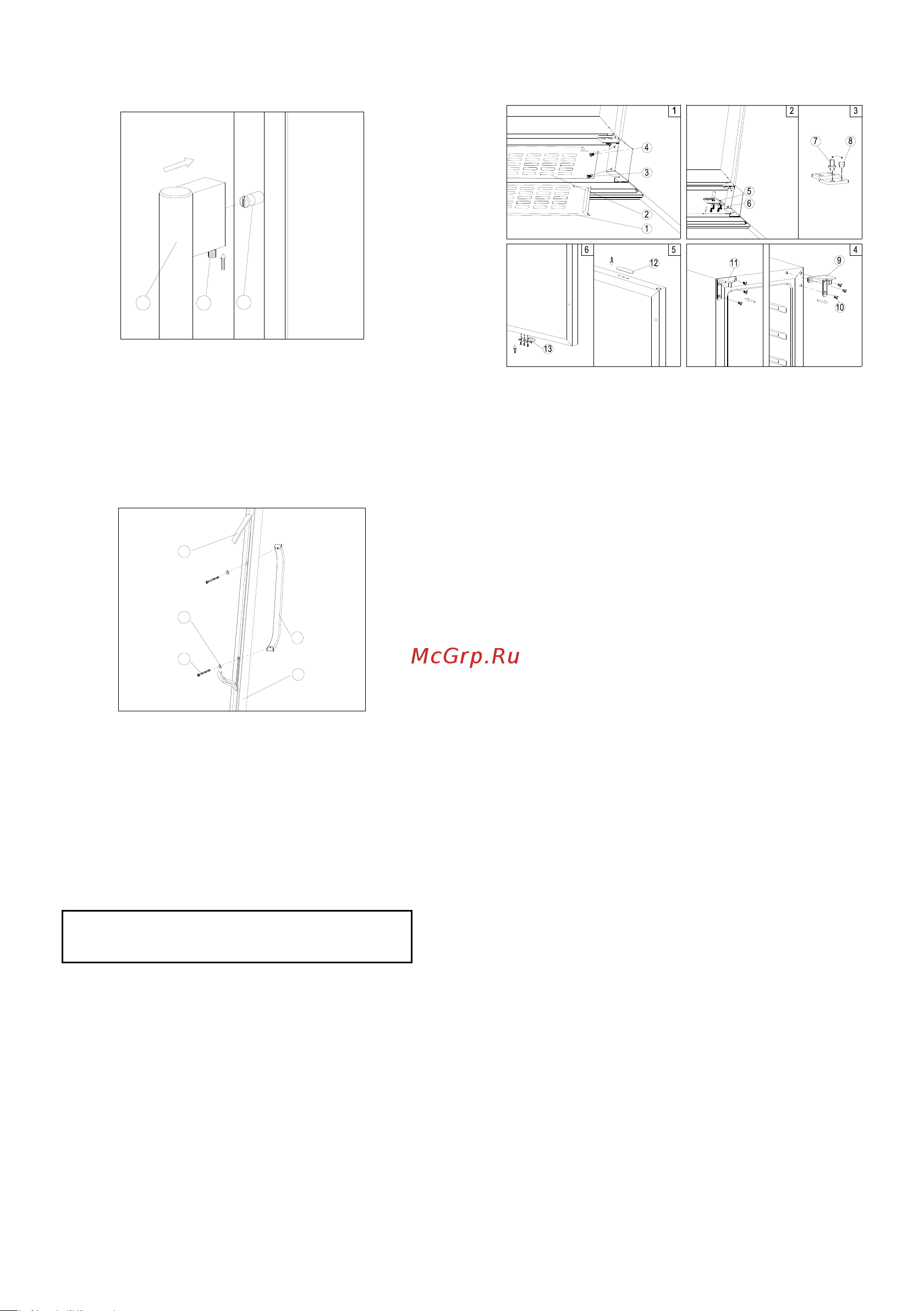

DESIGN 1 –
1
2
3
Locate the handle
○
,1 over the fixing pins
○
,3 of
the door and using the supplied allen key, tighten
the securing grub screws
○
,2 to fix the handle.
DESIGN 2 –
1
2
3
4
5
1. Remove the door gasket
○
,1 on the side you
wish to install the handle - you can see two
designated holes for handle installation.
2. Install the handle
○
,4 tightly as shown above
with two screws
○
,3 and flat washers
○
,2
provided.
3. Replace the door gasket.
REVERSING THE DOOR HINGE
It is possible to reverse the door on this appliance, if
required.
To do so, follow the steps below:
DESIGN 1 – For built-under models
1. Remove the ventilation grille
○
,2 and the
adjustable ventilation grille
○
,1 by unscrewing
the screws
○
,3 &
○
,4. (Fig. 1)
NOTE: For some models without adjustable
ventilation grille, the step is not needed.
2. Remove the bottom hinge
○
,5 by unscrewing
the four lock screws
○
,6. Be careful to hold
the glass door firmly after removing the screws.
(Fig. 2)
3. Gently pull down to remove the glass door
from the right top hinge and place it on a
padded surface to avoid the risk of damage.
Then remove the right top hinge
○
,9. (Fig. 4)
4. Unscrew and transfer hinge pin
○
,7 and/or
door stopper
○
,8of the bottom hinge to the
opposite side. (Fig. 3)
5. Pop out the cover caps on the left side of
cabinet and use them to cover the screw holes
on the right hand side.
6. Screw the alternative left top hinge
○
,11 ,
included in the fittings, on the left hand side of
cabinet. (Fig. 4)
7. Unscrew and transfer the holes cover
○
,12
and lock catch
○
,13 to the opposite side of
glass door. (Only for models with lock on the
ventilation grille) (Fig. 5)
8. Rotate the door 180° (No need for models with
lock on the door) and relocate the door to the
designated position. Then screw the bottom
hinge assembly on the left designated position
and tighten it after the door is leveled.
9. Transfer the handles & plugs to the opposite
positions and then reassembly the ventilation
grilles if need.
Note: All parts removed must be saved to
do the reinstallation of door.
