Dimension GS-1116/GS-1124 Gigabit Switch
Hardware Description and Installation 2-5

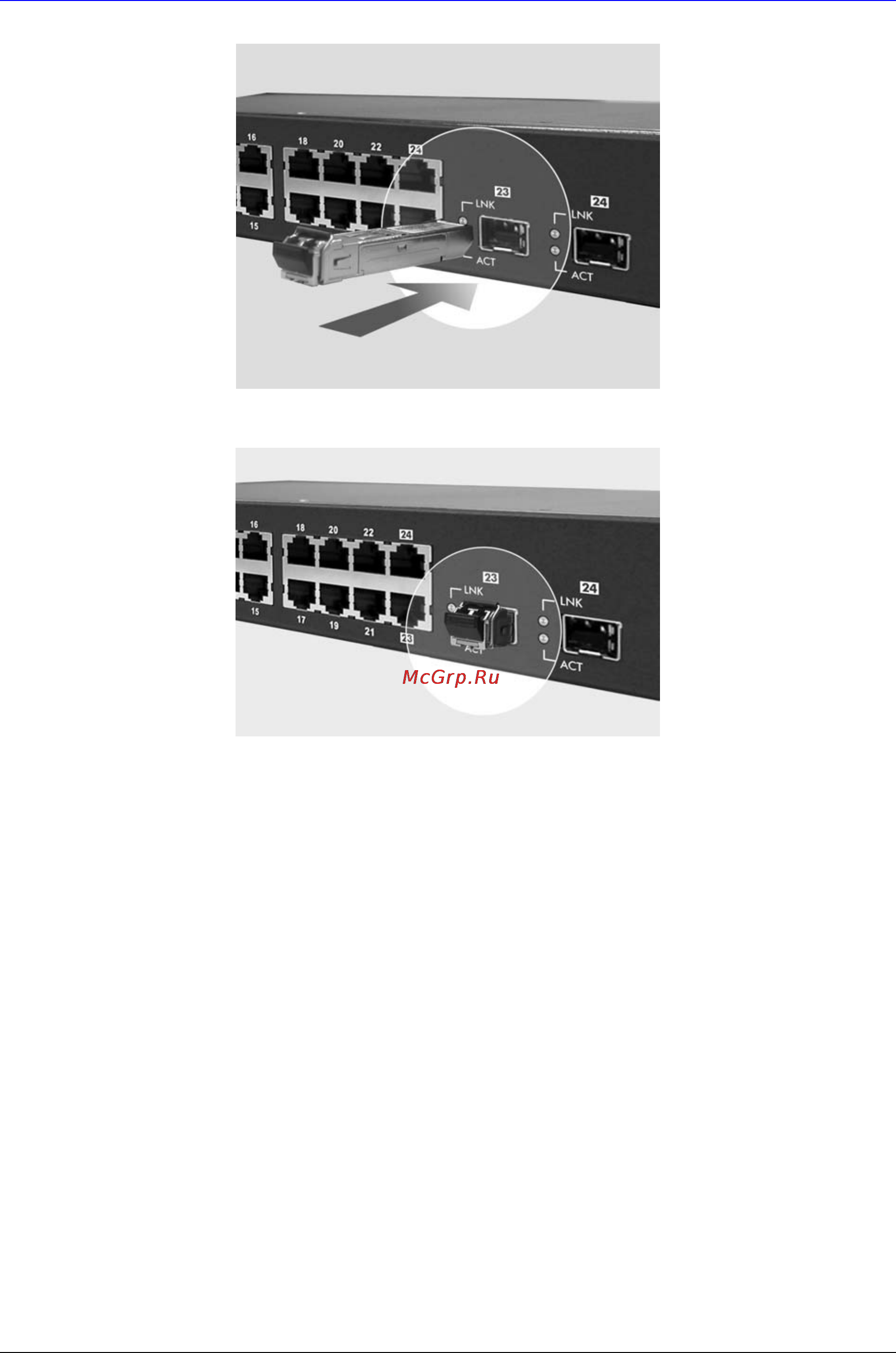

Figure 2-7 Transceiver Installation Example
Figure 2-8 Installed Transceiver
Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module) from the GBIC port.
1. Remove the fiber-optic cables from the transceiver.
2. Unlock the transceiver’s latch (latch styles vary).
3. Pull the transceiver out of the slot.
4. Put the transceiver’s dust cover on the transceiver.
