Zalman RESERATOR 1 V2 [10/18] Connect the cpu water block and the vga water block

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

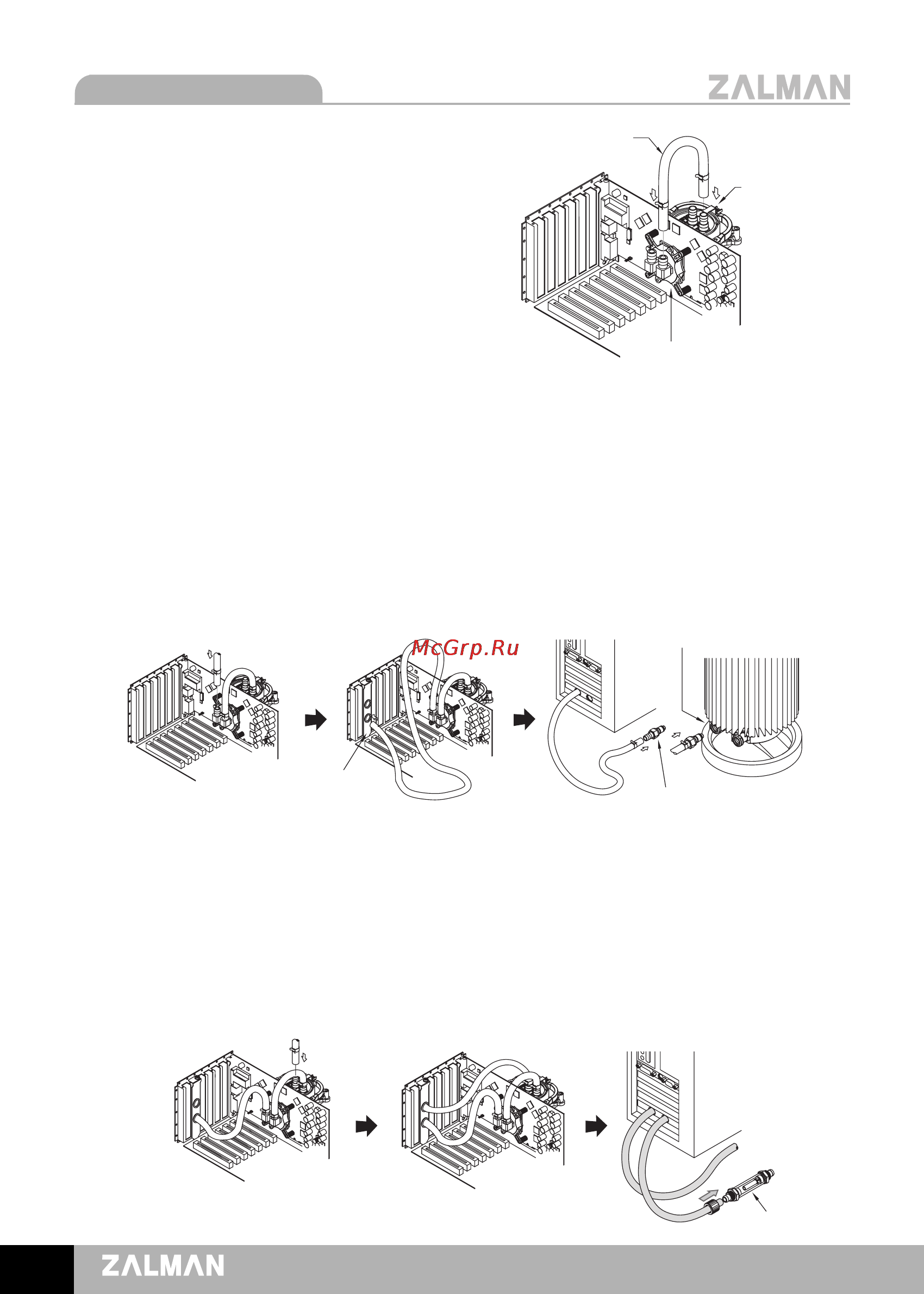

5. 6 Connect the CPU Water Block

and the VGA Water Block

1) As shown in the diagram, connect the

two water blocks with a PVC tube.

5. 7 Connect the VGA Water Block with Reserator’s Base IN

1) As shown in the diagram, connect one end of the PVC Tube to the VGA Water Block

Fitting and fasten with a Tube Clamp.

2) Pull out the PVC Tube through the I/O Bracket hole on the computer case.

3) Connect a Quick Coupling Insert to the other end of the PVC Tube and clamp with a

Tube Clamp.

4) Plug the Quick Coupling into the Reserator’s Base IN fitting.

5. 8 Connect the CPU Water Block with the Flow Indicator

1) As shown in the diagram, connect one end of the PVC Tube to the CPU Water Block

fitting and fasten with a Fitting Cap.

2) Pull out the PVC Tube through the tube hole on the I/O Bracket.

3) Connect the Flow Indicator on the other end of the PVC Tube.

※

The Flow Indicator should be installed in the direction as shown in the diagram.

PVC Tube

CPU Water

Block

VGA Water

Block

I/O Bracket

Quick Coupling

Insert

Base IN Quick Coupling Body

Flow Indicator
