6. Pump Replacement and External Water Pump Installation

6. 1 Separate the Integrated Water Pump

Separate the sink base

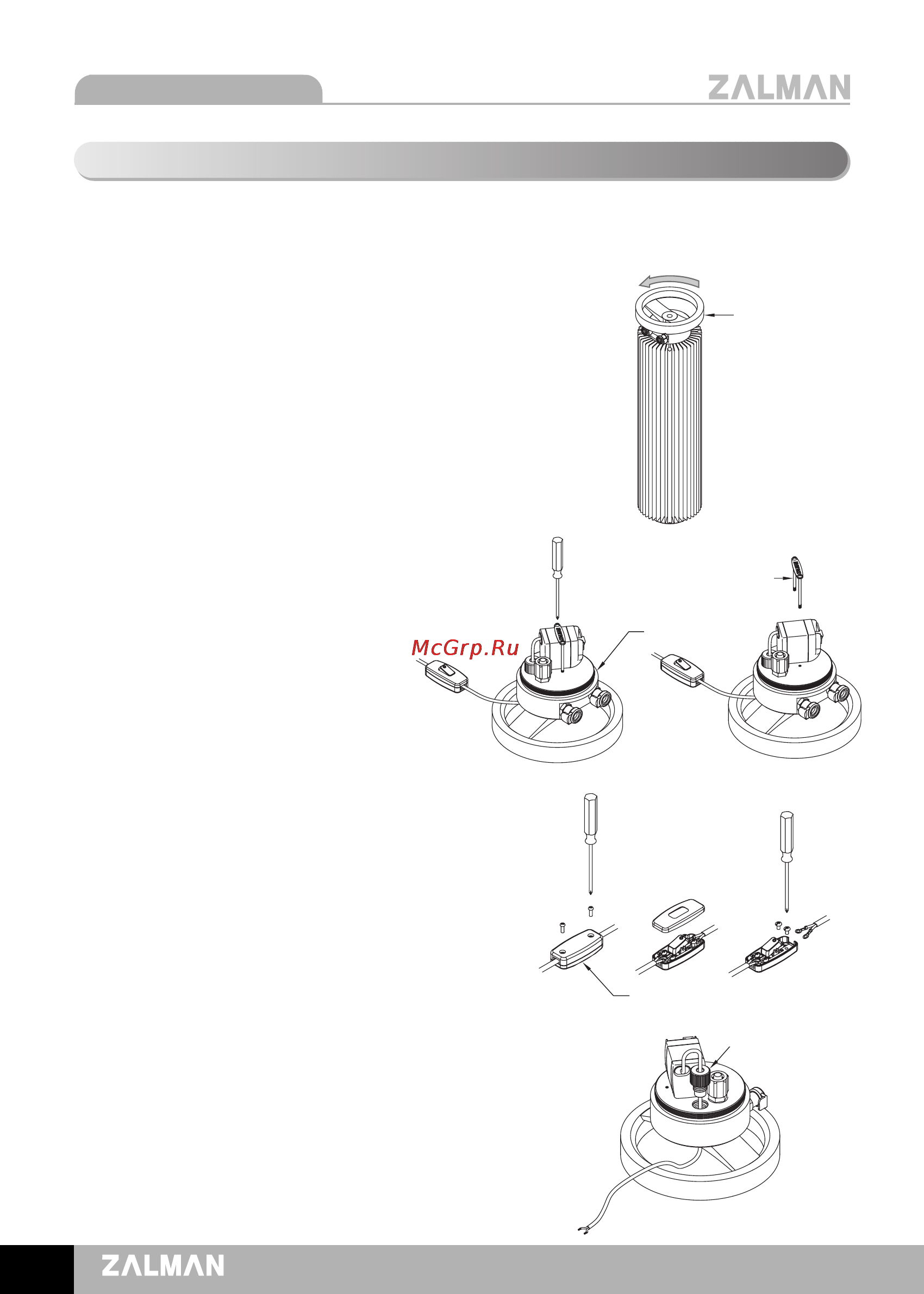

Take off the sink base from the product as shown

in the diagram.

2) Unscrew the Fixing Bolts on the Water Pump

Separate the Fixing Plate and the Fixing Bolts

by unscrewing the Fixing Bolts on the Sink

Base with a screwdriver.

3) Disconnect the Water Pump Power Switch

Separate the Power Switch from the power

cable.

4) Take off the Sealing Bolt A

Separate the Sealing Bolt A from the Sink Base.

If the integrated water pump is broken or you need a water pump with higher capacity, you

can replace the water pump or install an external water pump as shown below.

Sink Base

Fixing Bolt

Sink Base

Power Switch

Sealing Bolt A
