RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

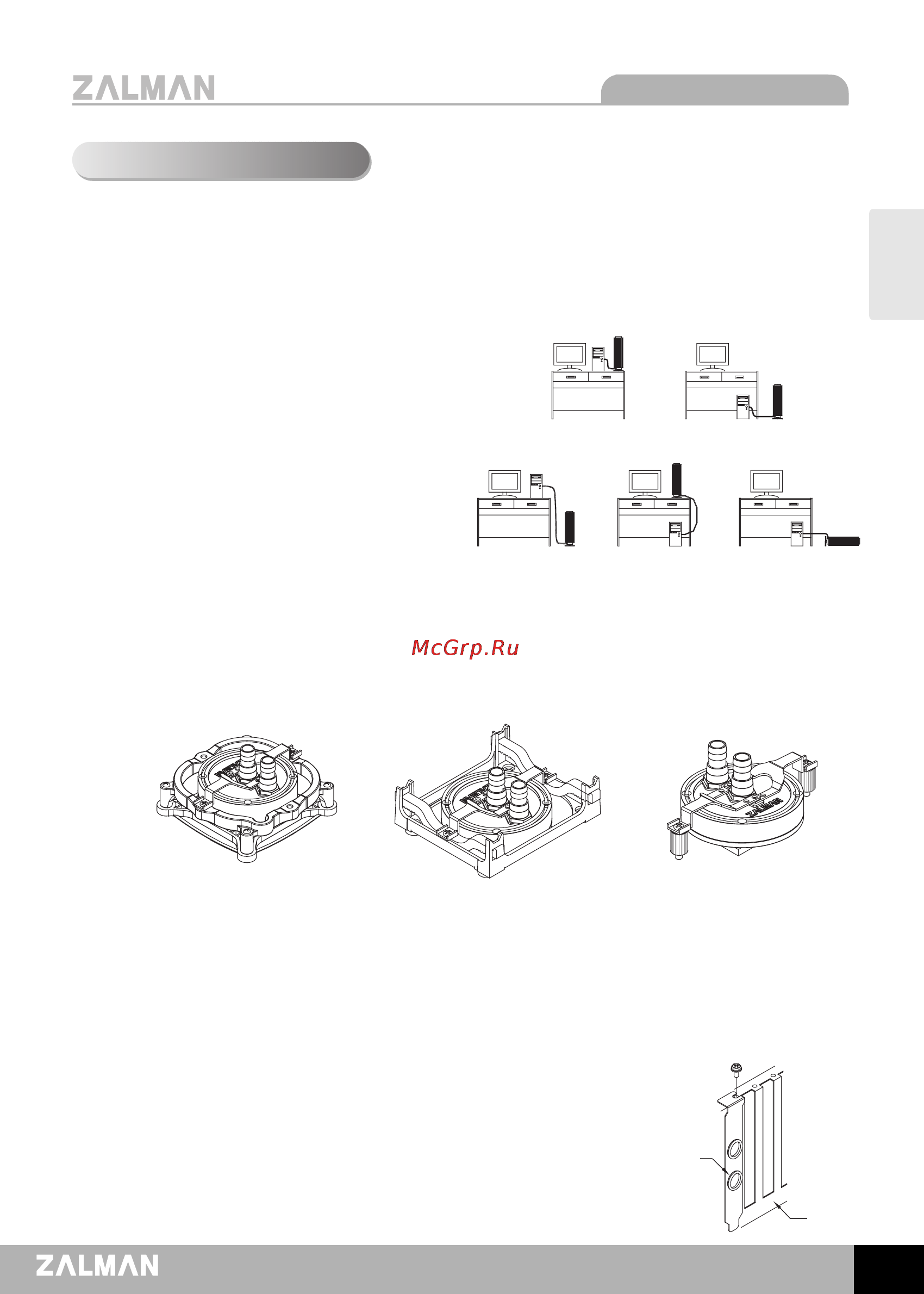

5. Installation Guide

5. 1 Check for Leaks

Before installing the product on a PC, check each Water Block and the Reserator for leaks.

5. 2 Determine the Placement of the Reserator

The Reserator’s placement should be

determined in relation to the position

of the PC. Place it upright next to or

slightly above the PC. Note that if the

Reserator is placed lower than the PC,

the PVC tube’s internal air pressure

may prevent proper initial operation.

5. 3 Install the CPU Water Block (ZM-WB4 Gold)

1) Refer to the manual included with the ZM-WB4 Gold for installation instructions.

2) If physical interference occurs while installing the Water Block, stop the installation.

5. 4 Install the VGA Water Block (ZM-GWB3)

1) Refer to the manual included with the ZM-GWB3 for installation instructions.

5. 5 Install the I/O Bracket

1) As shown in the diagram, install the I/O bracket on

a PCI slot on the computer case.

※

I/O Bracket should be installed at the lowest

possible slot.

((OO)) ((OO))

((XX)) ((XX)) ((XX))

I/O Bracket

PCI Slot

Intel Pentium 4

Socket 775 CPU

Intel Pentium 4

Socket 478 CPU

AMD Sempron/AMD 64

Socket 754/939/940 CPU
