RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

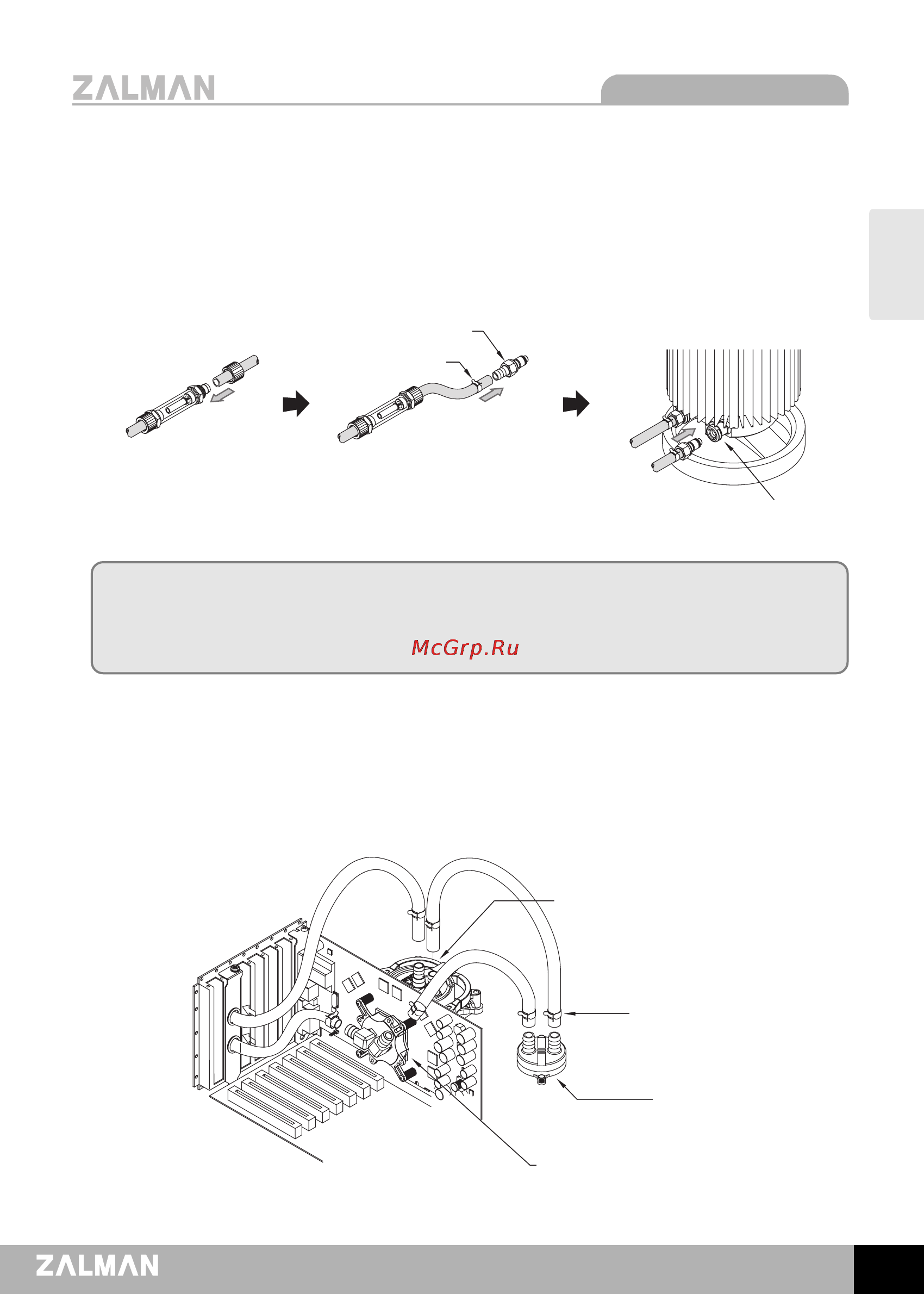

5. 9 Connect the Flow Indicator with the Reserator’s Base OUT

1) Connect one end of the PVC Tube to the Flow Indicator.

2) Insert a Tube Clamp to the other end of the tube, connect a Quick Coupling Insert, then

fasten with the Tube Clamp.

3) Connect the Quick Coupling to the Quick Coupling Body on the Reserator’s Base OUT.

What does Quick Coupling do ?

The Quick Coupling Sockets allow quick connection and disconnection, while the

incorporated valve prevents leaks during disconnection.

5. 10 Installing the Northbridge Water Block

1) To install the Northbridge Water Block, connect as shown in the diagram below.

2) Remember to install Tube Clamps on the PVC Tubes during installation.

Quick Coupling Insert

Tube Clamp

Base OUT Quick Coupling Body

CPU Water Block

Tube Clamp

Northbridge Water Block

VGA Water Block
