6.2 Installing the External Water Pump

6.3 Cautionary Notes on Choosing and Installing an External Water Pump

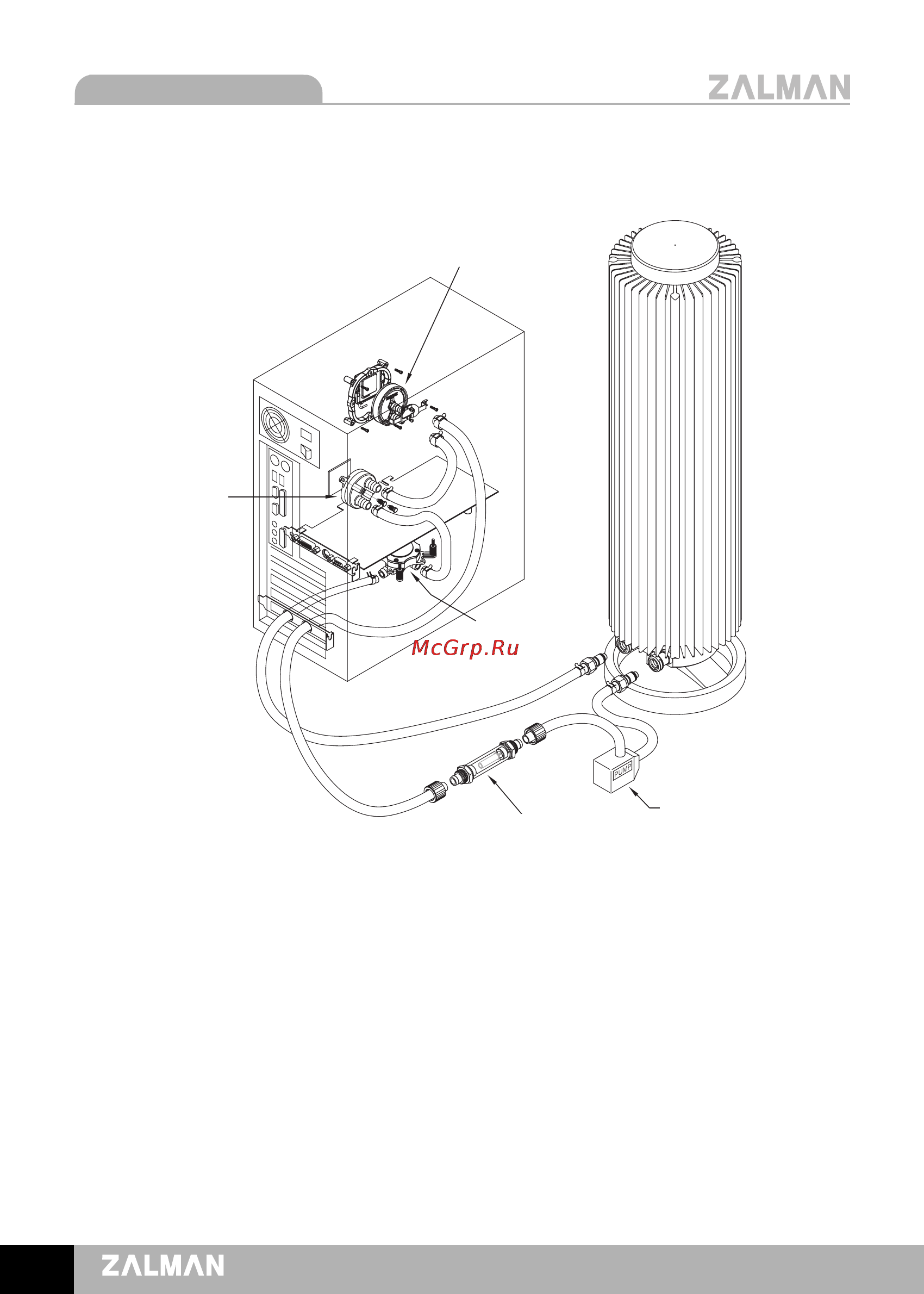

After determining the placement of the External Water Pump, check the components that

create a path as shown above. It is recommended that the installation is done in such a

manner.

1) When installing an External Water Pump, confirm the coolant entrance and exit holes

before connection.

2) Check that the chosen water pump’s holes are compatible with the provided PVC tubes

(12 x 8 mm).

3) Zalman Tech is not responsible for performance degradation or malfunction of a system

that results from using an external water pump.

CPU Water Block

(ZM-WB4 Gold)

External Water Pump

Flow Indicator

VGA Water Block

(ZM-GWB3)

Northbridge

Water Block

(ZM-NWB1, Optional)
