5. 6 Connect the CPU Water Block

and the VGA Water Block

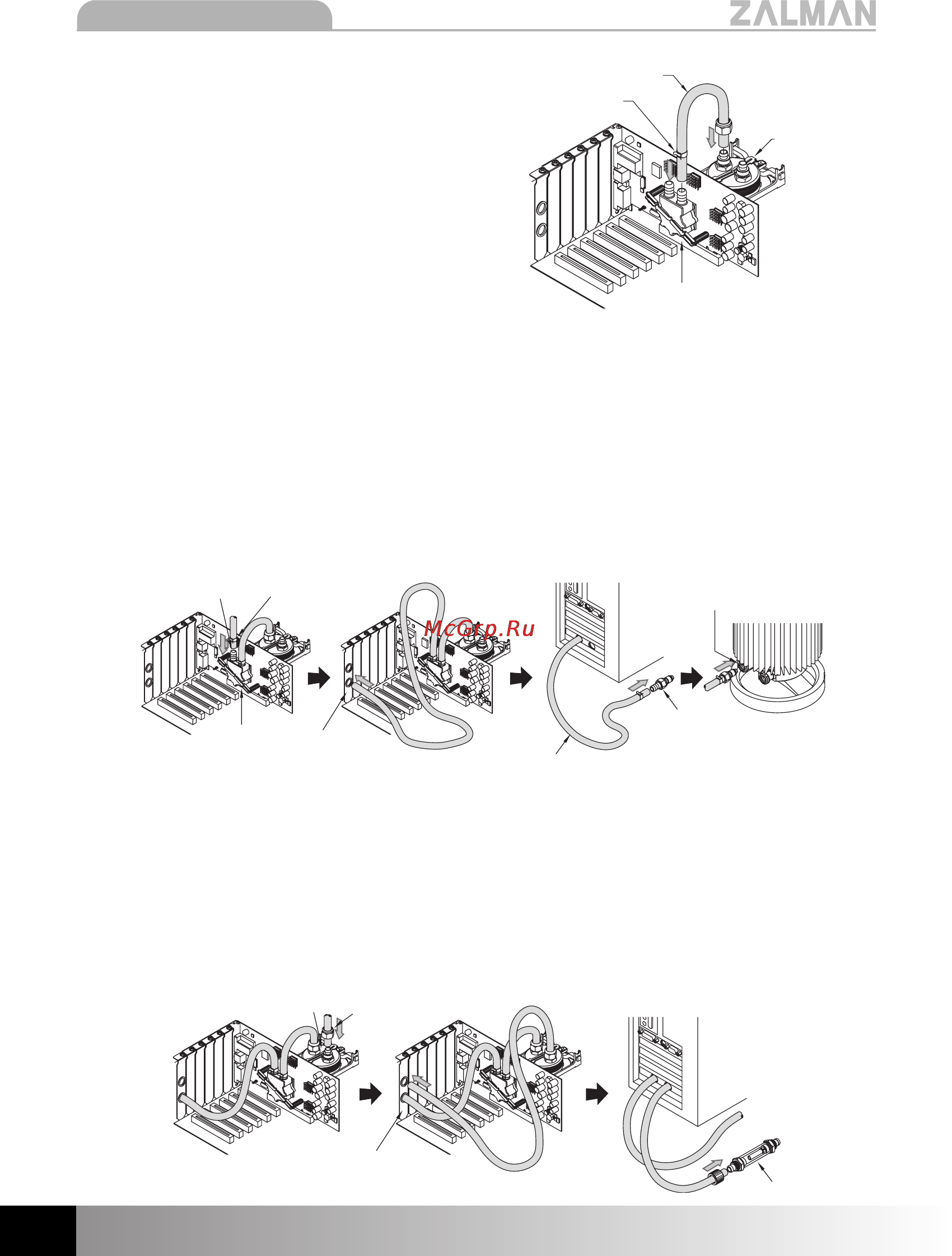

1) As shown in the diagram, connect the

two water blocks with a silicone tube.

5. 7 Connect the VGA Water Block with Reserator’s Base IN

1) As shown in the diagram, connect one end of the Silicone Tube to the VGA Water

Block Fitting and fasten with a Tube Clamp.

2) Pull out the Silicone Tube through the I/O Bracket hole on the computer case.

3) Connect a Quick Coupling Insert to the other end of the Silicone Tube and clamp with

a Tube Clamp.

4) Plug the Quick Coupling into the Reserator’s Base IN fitting.

5. 8 Connect the CPU Water Block with the Flow Indicator

1) As shown in the diagram, connect one end of the Silicone Tube to the CPU Water

Block fitting and fasten with a Fitting Cap.

2) Pull out the Silicone Tube through the tube hole on the I/O Bracket.

3) Connect the Flow Indicator on the other end of the Silicone Tube.

The Flow Indicator should be installed in the direction as shown in the diagram.

Tube Clamp

Silcone Tube

CPU Water

Block

VGA Water

Block

Fitting

Tube Clamp

VGA Water

Block

I/O Bracket

Silicone Tube

Quick Coupling

Insert

Base IN Quick Coupling Body

CPU Water Block

Fitting Cap

I/O Bracket

Flow Indicator
