5. 10 Confirm Proper Installation

1) Check that the product is placed properly (i.e. conforms to section 5.2).

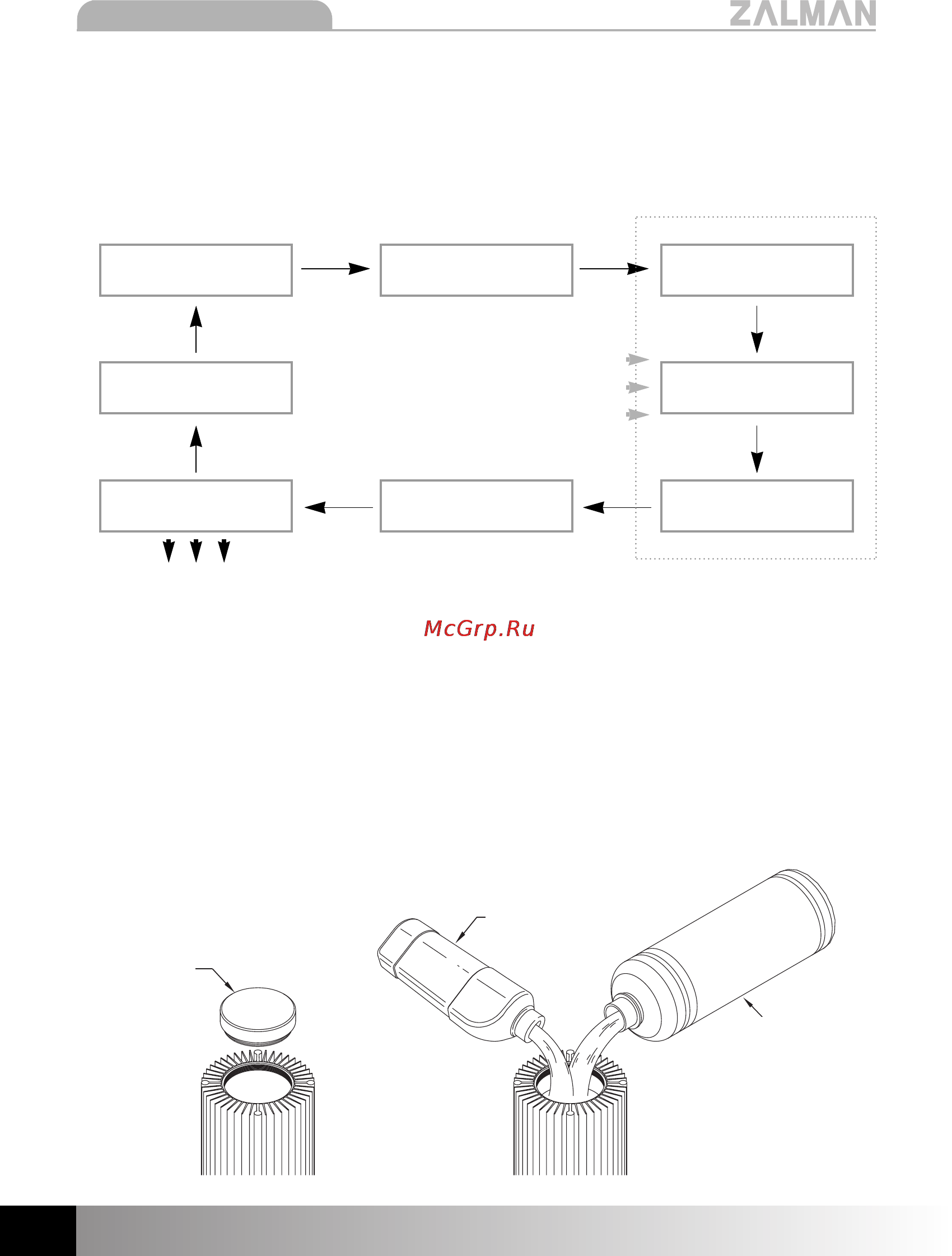

2) Confirm that the coolant circulation path is correct as shown below.

3) Lightly tug the silicone tube connected to each of the fittings to check for loose ends.

5. 11 Fill the Coolant

1) Take off the Sink Cover on top of the Reserator.

2) Fill with the provided coolant (ZM-G100) and two liters of distilled water.

Note 1) The provided coolant is a concentrate, and must be mixed down with distilled water

for operation.

Note 2) Read the warning label on the coolant before use.

Note 3) Keep this product and its associated system away from children.

Sink Cover

ZM-G100

Distilled Water 2ℓ

Reserator OUT

Water Pump

Reserator

Radiate Heat

Absorb Heat

Flow Indicator

Reserator IN

CPU Water Block

N/B Water Block

VGA Water Block
