RESERATOR 1 Plus

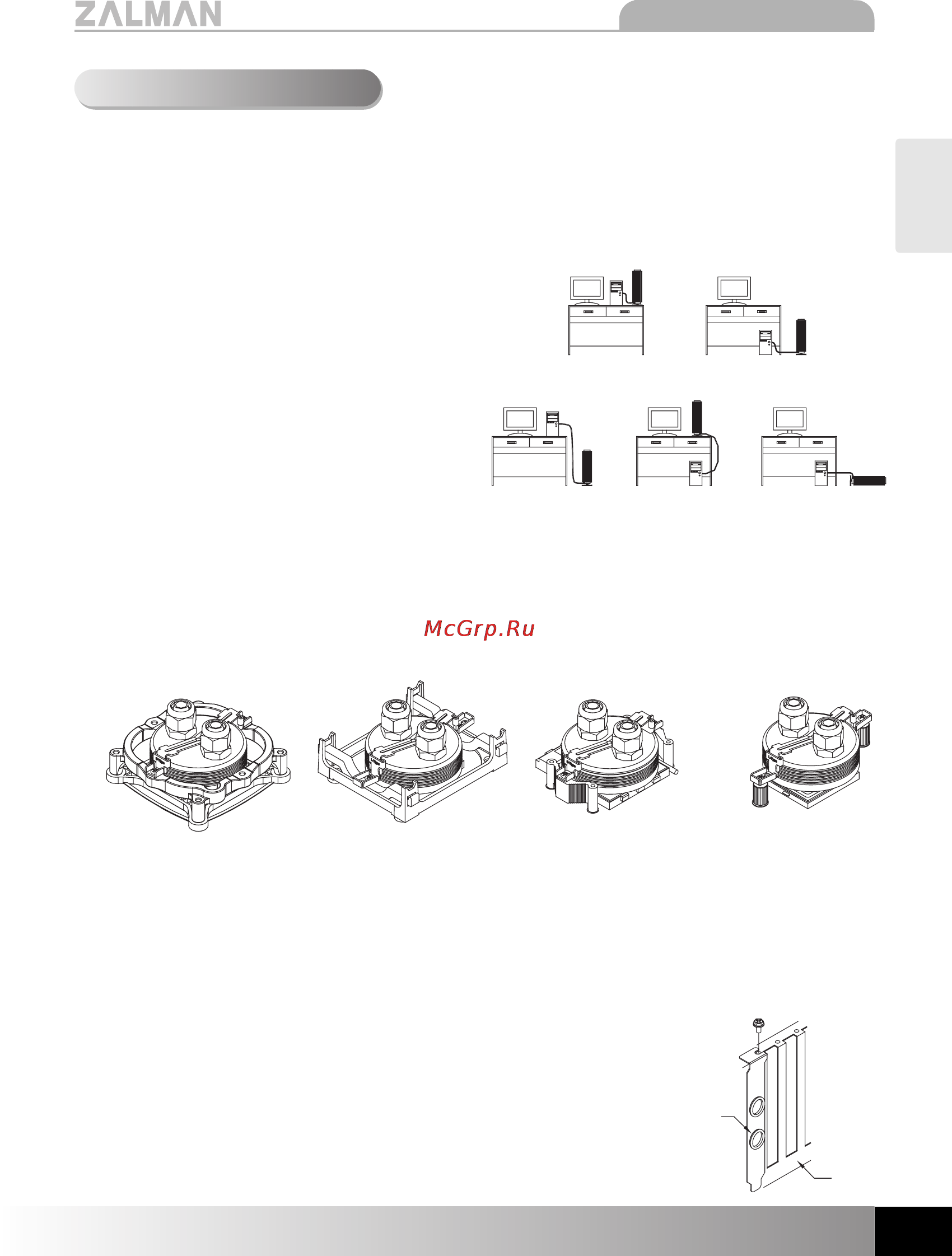

5. Installation Guide

5. 1 Check for Leaks

Before installing the product on a PC, check each water block and the reserator for leaks.

5. 2 Determine the Placement of the Reserator

The reserator’s placement should be

determined in relation to the position

of the PC. Place it upright next to or

slightly above the PC. Note that if the

Reserator is placed lower than the PC,

the silicone tube’s internal air pressure

may prevent proper initial operation.

5. 3 Install the CPU Water Block (ZM-WB3 Gold)

1) Refer to the manual included with the ZM-WB3 Gold for installation instructions.

2) The ZM-WB3 Gold is compatible with Socket 775, 478, 462, 754, 939, and 940.

3) If physical interference occurs while installing the water block, stop the installation.

5. 4 Install the VGA Water Block (ZM-GWB2)

1) Refer to the manual included with the ZM-GWB2 for installation instructions.

5. 5 Install the I/O Bracket

1) As shown in the diagram, install the I/O bracket

on a PCI slot on the computer case.

※

I/O Bracket should be installed at the lowest

possible slot.

((OO)) ((OO))

((XX)) ((XX)) ((XX))

Intel Pentium 4

Socket 775 CPU

Intel Pentium 4

Socket 478 CPU

AMD Duron/Athlon/

Athlon XP/Sempron

Socket 462 CPU

AMD Sempron/AMD64

(Athlon 64/Opteron)

Socket 754/939/940 CPU

I/O Bracket

PCI Slot
