Tc Electronic G-SYSTEM [25/80] Typical setups
![Tc Electronic G-SYSTEM [25/80] Typical setups](/views2/1011825/page25/bg19.png)

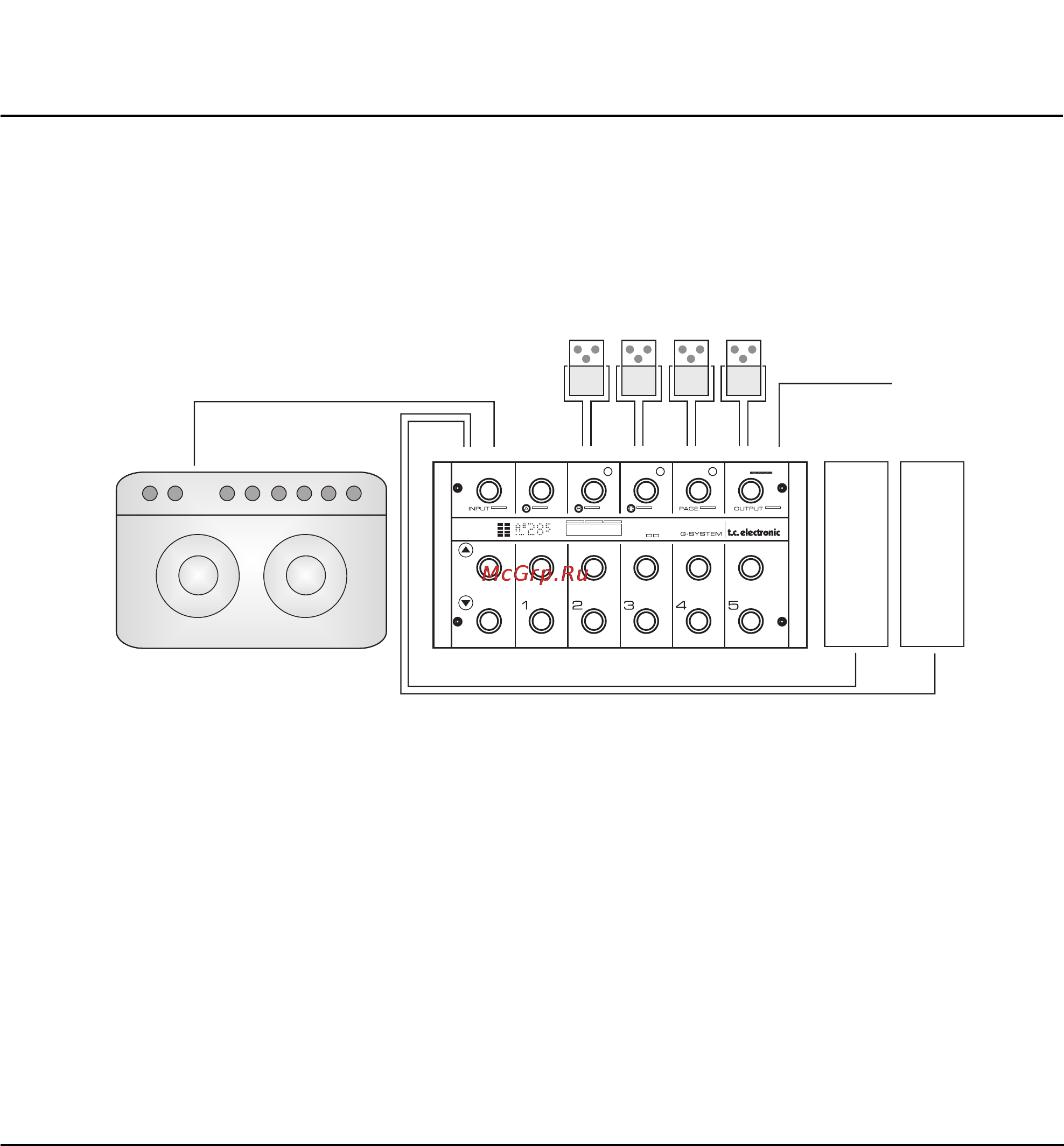

Pedals and Amp
In this setup, we are using up to four drive pedals
and a single combo amp. If you add another amp,
you have a stereo setup.
The two expression pedals are optional. If
connected, you can use them to control e.g. a
volume parameter or a pitch for “whammy”.
Connecting
• Connect your guitar to the Instrument Input.
• Connect up to four drive pedals to the loops.
• All pedals connected to the loops must remain
switched on at all times. The G-System
activates/deactivates the loops – not the pedals!
• Connect expression pedals using a single standard
1/4" jack cable. Depending on the expression pedal
model, the cable must be mono or stereo.
• Connect the G-System’s Out to your amp’s input or to
the amp’s effect loop return. Use two amps for stereo
operation.
• Connect expression pedals and calibrate these using
the Pedals menu.
Drive Pedals
Combo amp
TAP TEMPO
EDIT PARAMETER B EDIT PARAMETER C SELECT PAGE
EDIT PARAMETER A
GAIN ADJUST
HOLDTOSTORE HOLDTOSTORE HOLDTOSTORE HOLDTOSTOREHOLD TO STORE
PRESETABLE BOOST LEVEL
LEVEL SET
EDITA EDIT B EDIT C
GLOBALTEMPO
FORMANT | WAH | EFFECT FILTERS COMPRESSOR ALGORITHM
MODEMENU
WHAMMY | PITCH ALGORITHMCHORUS | FLANGER | TREMOLO
| RETURNENTER
HI-CLASS | TAPE ECHO | DYNAMIC REVERB ALGORITHM
INPUT DAMP
EDITED
COM FLT PIT DLY REV
E1: E2: E3: E4: E5:
INTEGRATEDEFFECTS
+MANAGEMENT
FILTER LOOP LOOP LOOP EDIT123COMP
UP
DOWN
MOD PITCH DELAY REVERB BOOST
ENCODER ENCODER ENCODER ENCODER ENCODER ENCODER
Send
Return
Send
Return
Send
Return
Send
Return
Loop 1
Expression Pedal
Loop 2Loop 3Loop 4
Expression/Volume Pedal
INPUT
Out Insert
Guitar
Input
PUSH
BOOST ON
vintage pre-drive
BOOST ON
vintage pre-drive
BOOST ON
vintage pre-drive
In this section we will take a look at some examples of how the G-System can be connected to your gear. There
are probably no two setups that are 100% identical. We suggest you look for the setup that comes closest to your
own.
TYPICAL SETUPS
23
