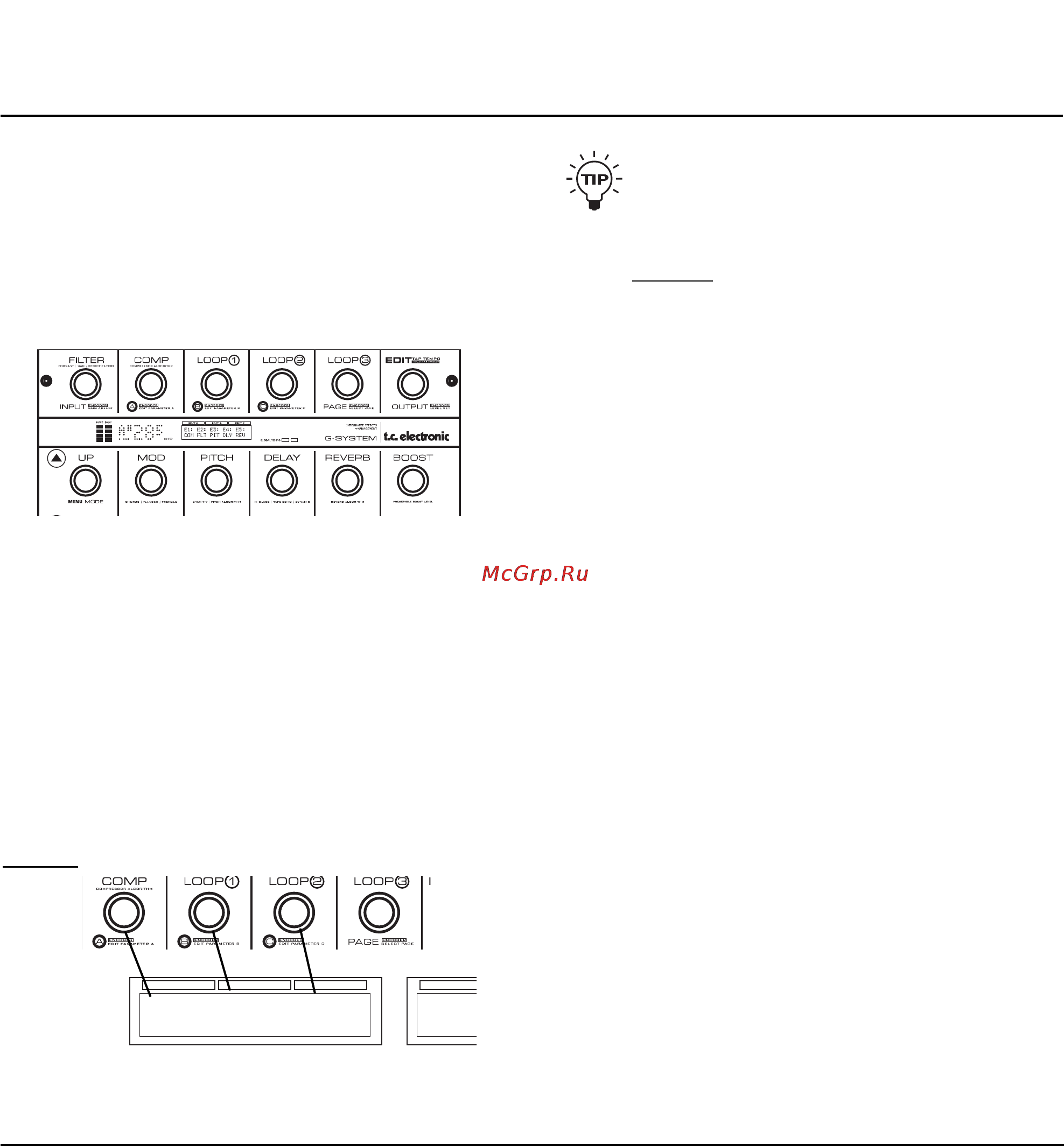

Editing
Editing G-System presets is quite simple.
Editing Presets in Play Mode
• Activate/deactivate loops and effects simply by
pressing the corresponding switches. When a switch
is lit, the corresponding function is active.
Effects with no dedicated switch, Loop 4 and the Insert
loop are activated/deactivated in Edit Mode.
Editing Presets in Effects Edit Mode
In this mode, you set up the various effect parameters.
• Press EDIT.
• Select which effect to edit by turning PAGE and
pressing ENTER.
• Parameters are organized in pages of three. Select a
parameter page using PAGE.
• Edit the shown parameters using encoders A, B and C.
Example
>> EFFECT COPIED <<
EDIT A EDIT B EDIT C
>> PRESET STORED <<
EDIT A EDIT B EDIT C
A : B : Relay
EDIT A EDIT B EDIT C
0C00 : 0C0C : A
A
EDIT A
0C00
Fast Access to Effect Parameters
If the effect you wish to access has a switch
assigned to it, the parameters are easily
accessed simply by pressing EDIT, followed by
the assigned switch.
Example:
Press EDIT and then REVERB to
access reverb parameters.
Selecting Effect Types
Each effect block includes several different subtypes of
effects. As an example the Delay block includes: Single
Delay, Tape Delay, Reverse, Lo-Fi, Pingpong, Dynamic
and Dual Delay.
Selecting the Effect type is part of the Effects Edit mode.
• Press EDIT to enter Edit mode.
• Select effect block using the PAGE encoder and
press ENTER.
• Turn the PAGE encoder one click counter-clockwise.
• Select the wanted effect type using encoder C.
• Press ENTER.
Loops Status
• Press EDIT and any of the three LOOP switches.
• Use PAGE to select the Loop page.
• Set loops on or off using encoders A, B and C.
PLAY MODE & EDIT MODE
31
