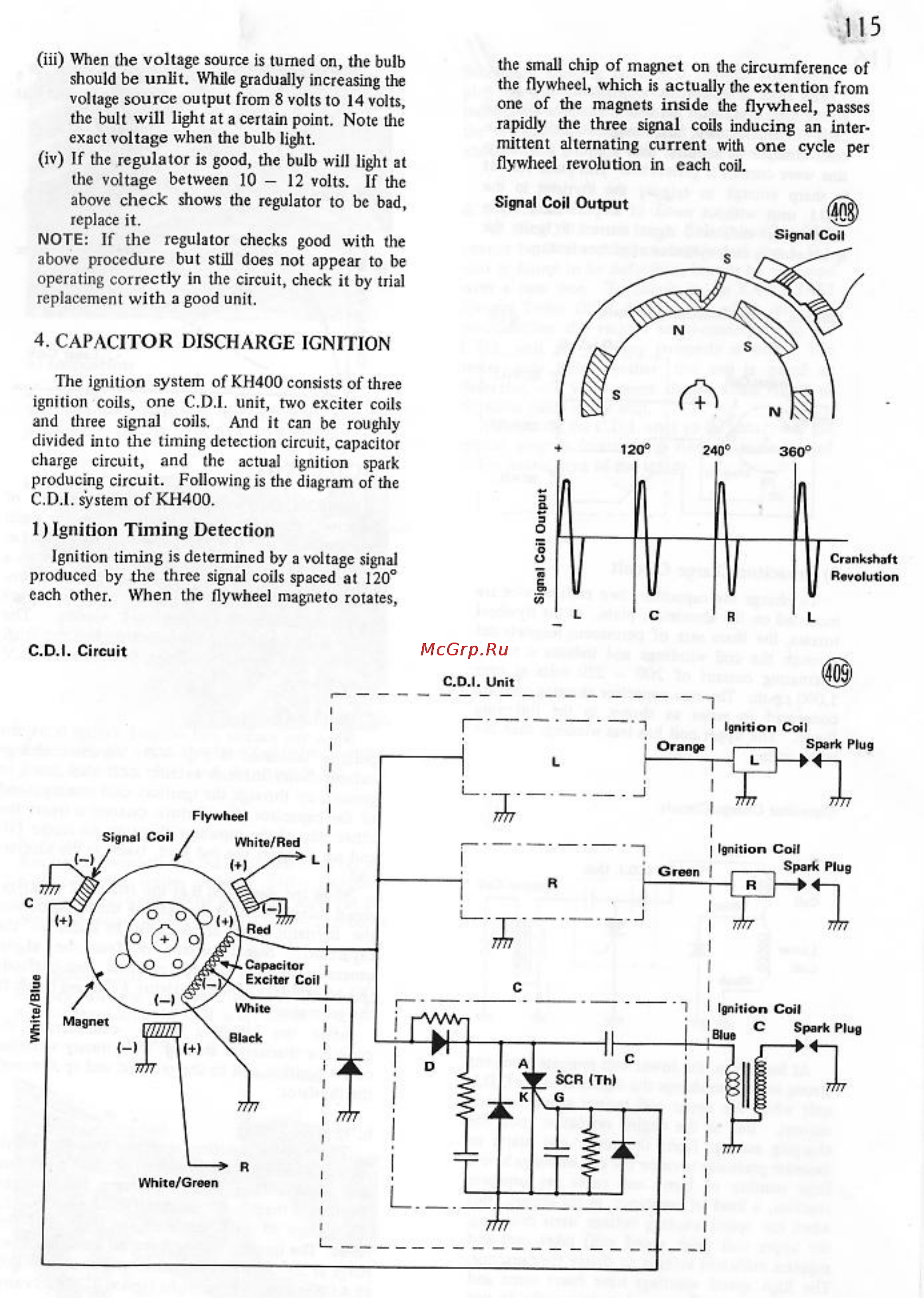

115 iii When he voltage source is turned on the bulb should be unlit While gradually increasing the voltage source output from 8 volts to 14 volts the bult will light at a certain point Note the exact voltage when the bulb light iv If the regulator is good the bulb will light at the voltage between 10 12 volts If the above check shows the regulator to be bad replace it NOTE If the regulator checks good with the above procedure but still does not appear to be operating correctly in the circuit check it by trial replacement with a good unit the small chip of magnet on the circumference of the flywheel which is actually the extention from one of the magnets inside the flywheel passes rapidly the three signal coils inducing an inter mittent alternating current with one cycle per flywheel revolution in each coil 4 CAPACITOR DISCHARGE IGNITION The ignition system of KH400 consists of three ignition coils one C D I unit two exciter coils and three signal coils And it can be roughly divided into the timing detection circuit capacitor charge circuit and the actual ignition spark producing circuit Following is the diagram of the C D I system of K1J400 1 Ignition Timing Detection Ignition timing is determined by a voltage signal produced by tire three signal coils spaced at 120 each other When the flywheel magneto rotates 120 240 360
