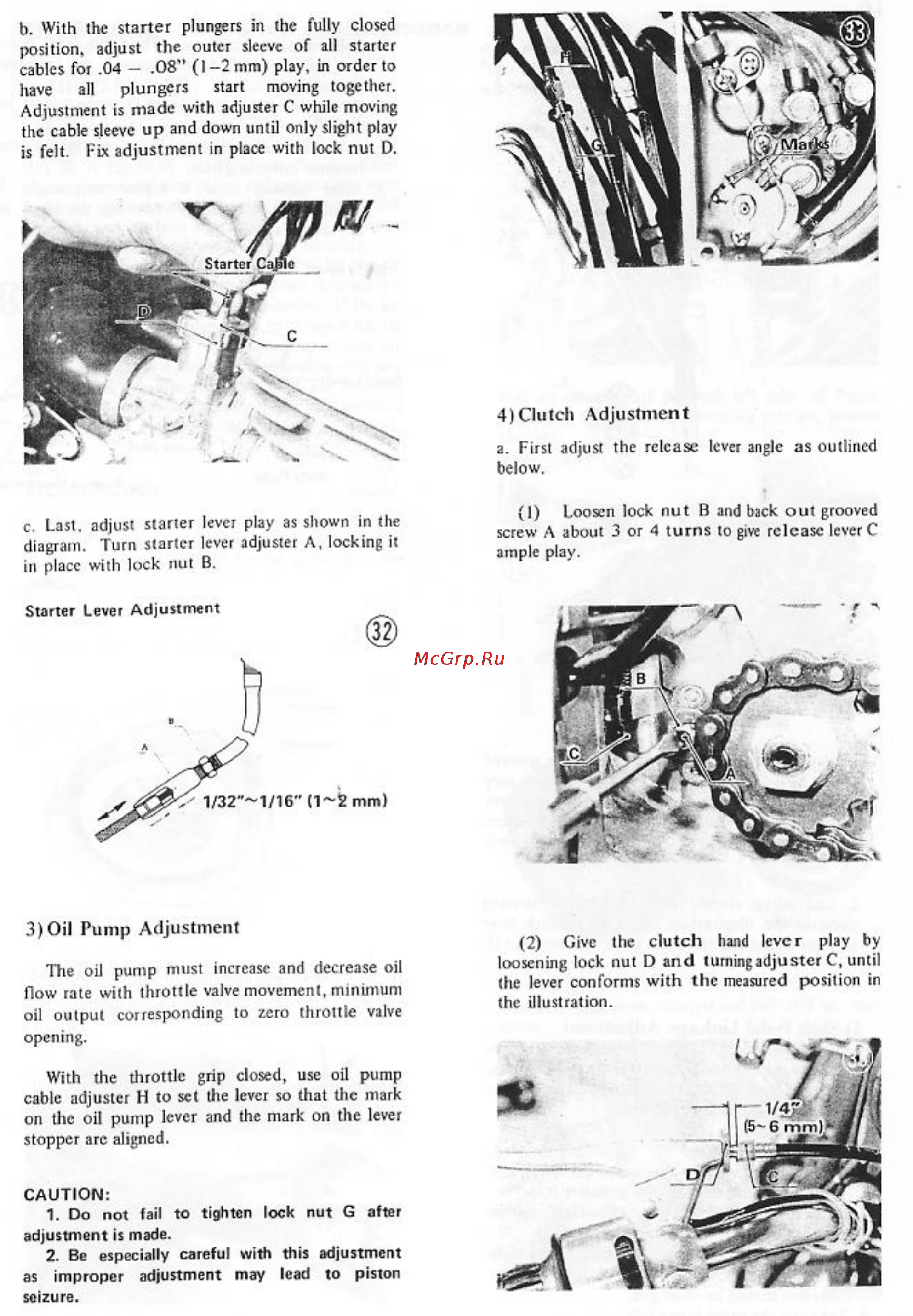

b With the starter plungers in the fully closed position adjust the outer sleeve of all starter cables for 04 08 1 2 mm play in order to have all plungers start moving together Adjustment is made with adjuster C while moving the cable sleeve up and down until only slight play is felt Fix adjustment in place with lock nut D 4 Clutch Adjustment a First adjust the release lever angle as outlined below c Last adjust starter lever play as shown in the diagram Turn starter lever adjuster A locking it in place with lock nut B 3 Oil Pump Adjustment The oil pump must increase and decrease oil flow rate with throttle valve movement minimum oil output corresponding to zero throttle valve opening With the throttle grip closed use oil pump cable adjuster H to set the lever so that the mark on the oil pump lever and the mark on the lever stopper arc aligned CAUTION 1 Do not fail to tighten lock nut G after adjustment is made 2 Be especially careful with this adjustment I Loosen lock nut B and back out grooved screw A about 3 or 4 turns to give release lever C ample play 2 Give the clutch hand lever play b loosening lock nut D and turning adjuster C unt the lever conforms with the measured position i the illustration
