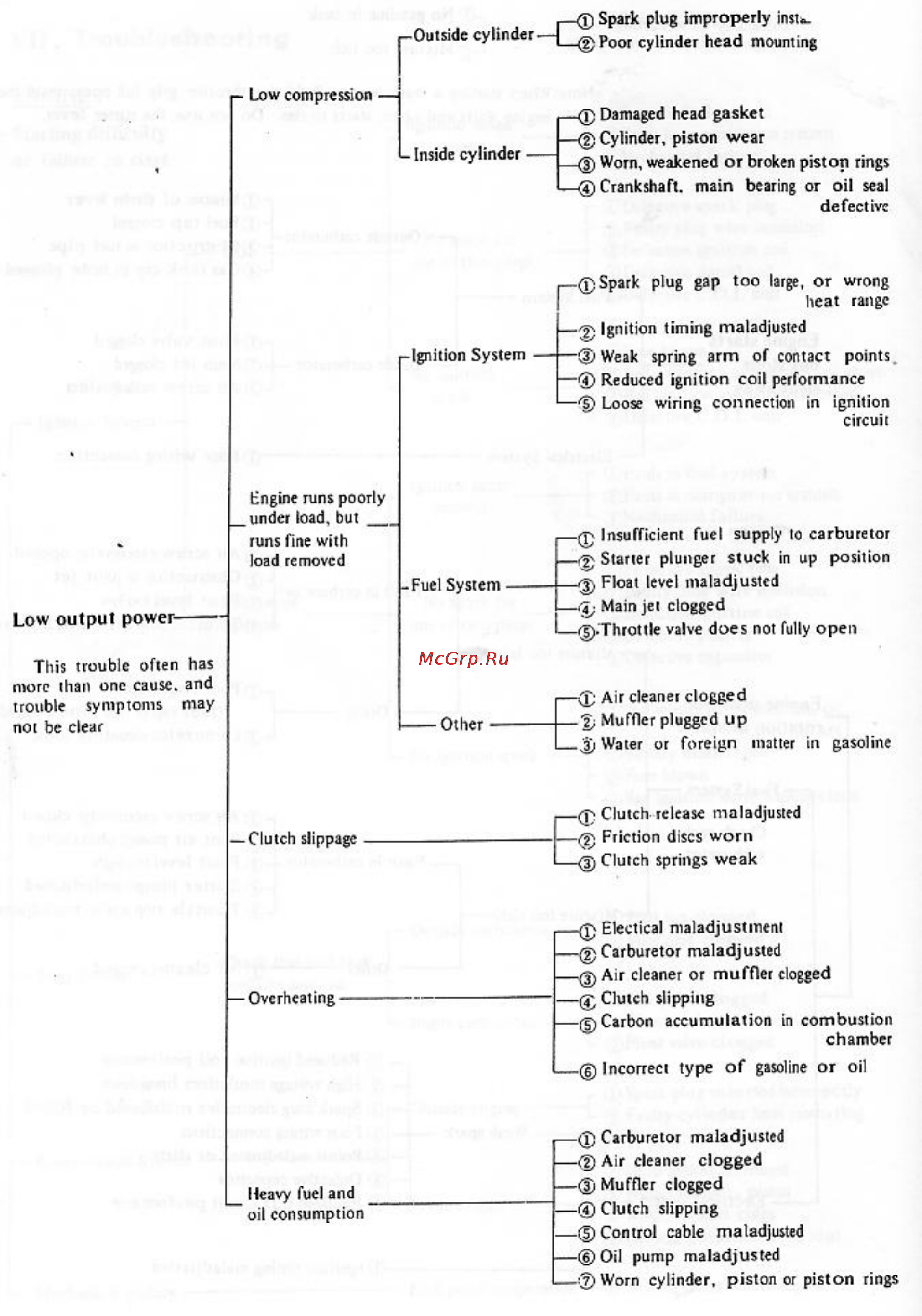

J Spark plug improperly inst Poor cylinder head mounting p Low compression j Q Damaged head gasket Inside cylinder Cylinder piston wear Worn 54 or broken piston rings Crankshaft main bearing or oil seal defective r i Spark plug gap too large or wrong heat range X Ignition timing maladjusted plgnition System Weak spring arm of contact points Reduced ignition coil performance Loose wiring connection in ignition circuit Engine runs poorly _under load but______ runs fine with load removed T Insufficient fuel supply to carburetor Starter plunger stuck in up position Fuel System Float level maladjusted Main jet clogged Throttle valve does not fully open Low output power This trouble often has more than one cause and trouble symptoms may not be clear Other Air cleaner clogged Muffler plugged up __ Water or foreign matter in gasoline Clutch release maladjusted Clutch slippage WCriivduiig __ Friction discs worn Clutch springs weak Electical maladjustment Carburetor maladjusted Air cleaner or muffler clogged 14 vJuicn upping Carbon accumulation in combustion chambe Incorrect type of gasoline or oil Heavy fuel and oil consumption Carburetor maladjusted Air cleaner clogged Muffler clogged Clutch slipping Control cable maladjusted Oil pump maladjusted
