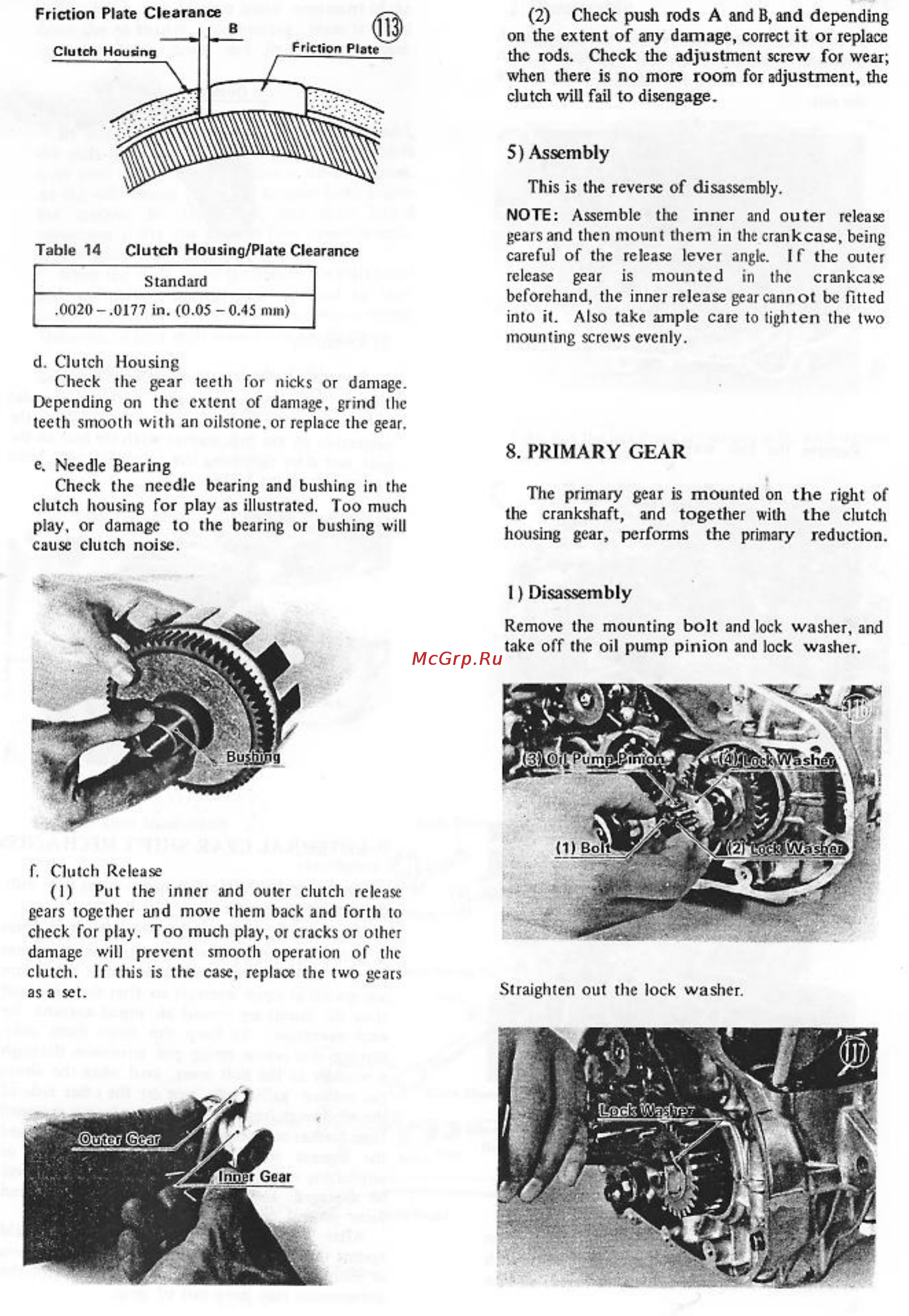

2 Check push rods A and B and depend on the extent of any damage correct it or repla the rods Check the adjustment screw for we when there is no more room for adjustment clutch will fail to disengage 5 Assembly This is the reverse of disassembly Table 14 Clutch Housing Plate Clearance _____ Standard 0020 0177 in 0 05 0 45 nun NOTE Assemble the inner and outer relea gearsand then mount them in the crankcase bei careful of the release lever angle I f the ou release gear is mounted in the crankca beforehand the inner release gear cannot befitt into it Also take ample care to tighten the tw mounting screws evenly d Clutch Housing Check the gear teeth for nicks or damage Depending on the extent of damage grind the teeth smooth with an oilstone or replace the gear e Needle Bearing Check the needle bearing and bushing in the clutch housing for play as illustrated Too much play or damage to the bearing or bushing will cause clutch noise 8 PRIMARY GEAR The primary gear is mounted on the right the crankshaft and together with the clut housing gear performs the primary reduction I Disassembly Remove the mounting bolt and lock washer a take off the oil pump pinion and lock washer f Clutch Release I Put the inner and outer clutch release gears together and move them back and forth to check for play Too much play or cracks or other damage will prevent smooth operation of the clutch If this is the case replace the two gears as a set Straighten out the lock washer
