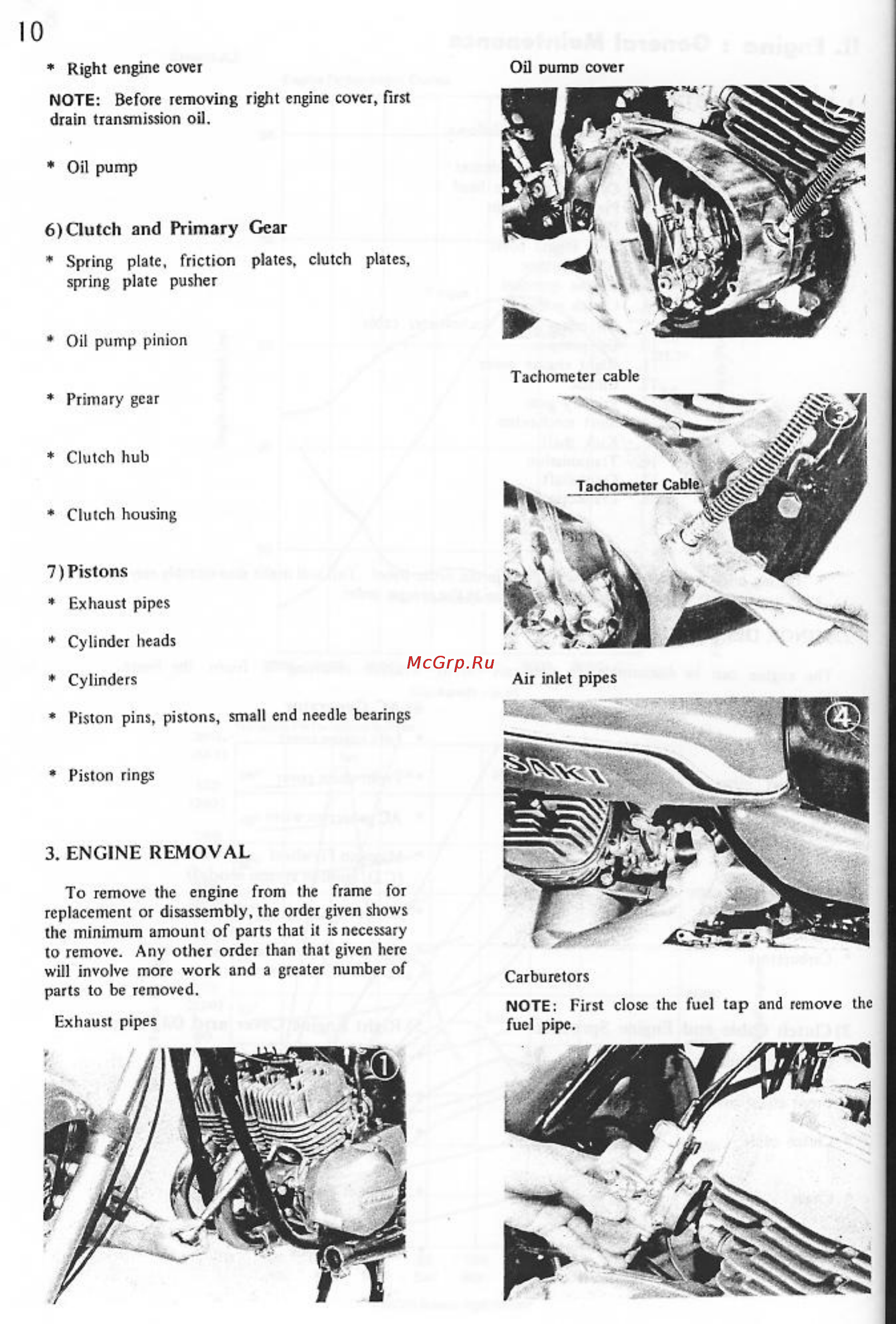

10 Right engine cover Oil pumo cover NOTE Before removing right engine cover first drain transmission oil Oil pump 6 Clutch and Primary Gear Spring plate friction plates clutch plates spring plate pusher Oil pump pinion Tachometer cable Primary gear Clutch hub Clutch housing 7 Pistons Exhaust pipes Cylinder heads Cylinders Air inlet pipes Piston pins pistons small end needle bearings Piston rings 3 ENGINE REMOVAL To remove the engine from the frame for replacement or disassembly the order given shows the minimum amount of parts that it is necessary to remove Any other order than that given here will involve more work and a greater number of parts to be removed Exhaust pipes Carburetors NOTE First close the fuel tap and remove the fuel pipe
