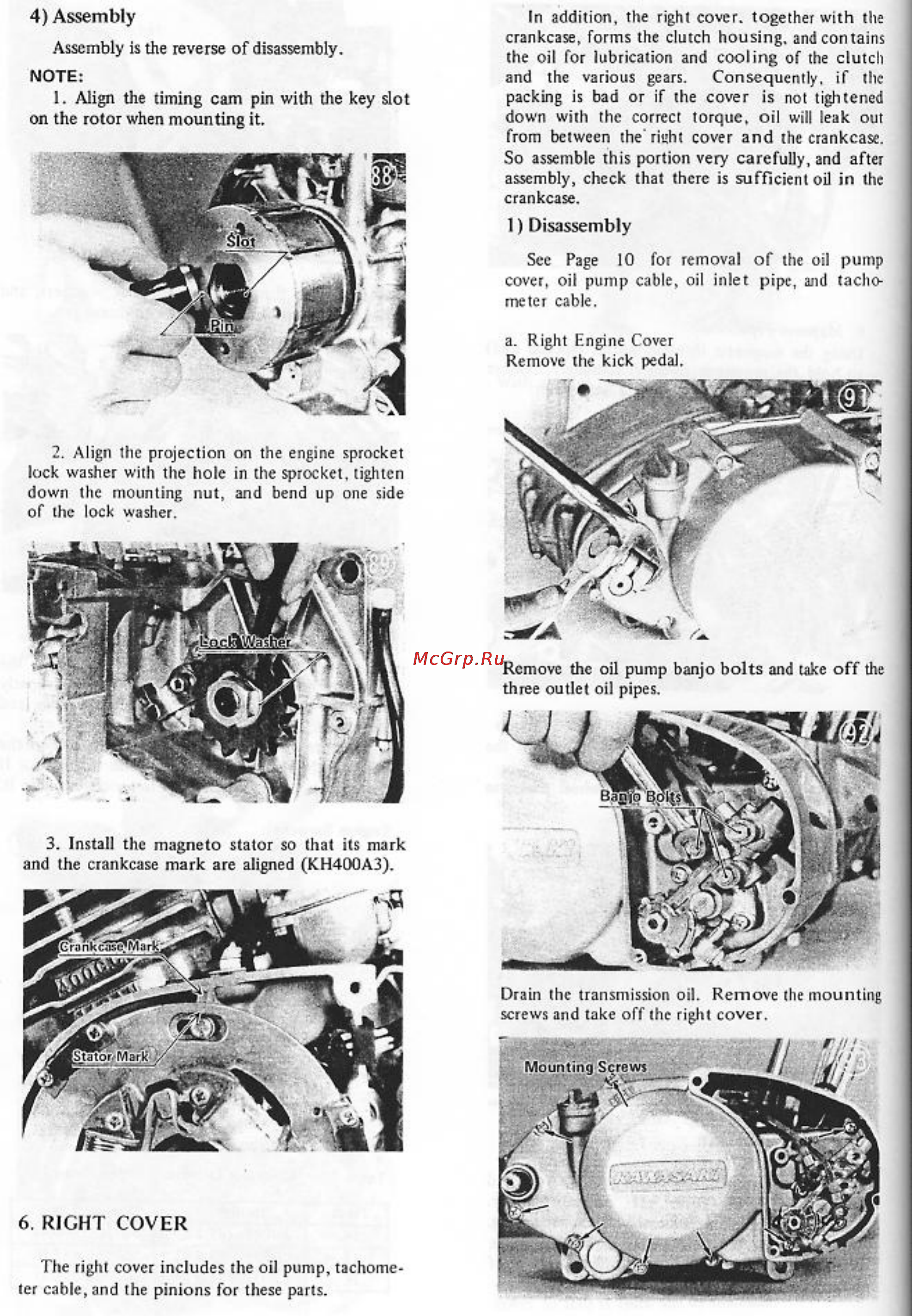

4 Assembly Assembly is the reverse of disassembly NOTE 1 Align the timing cam pin with the key slot on the rotor when mounting it In addition the right cover together with t crankcase forms the clutch housing and contai the oil for lubrication and cooling of the clut and the various gears Consequently if t packing is bad or if the cover is not tighten down with he correct torque oil will leak o from between the right cover and the crankcas So assemble this portion very carefully and aft assembly check that there is sufficient oil in t crankcase 1 Disassembly Sec Page 10 for removal of the oil pum cover oil pump cable oil inlet pipe and tach meter cable a Right Engine Cover Remove the kick pedal 2 Align the projection on the engine sprocket lock washer with the hole in the sprocket tighten down the mounting nut and bend up one side of the lock washer Remove the oil pump banjo bolts and take off t three outlet oil pipes 3 Install the magneto stator so that its mark and the crankcase mark are aligned KH400A3 Drain he transmission oil Remove he mountin screws and take off the right cover 6 RIGHT COVER
