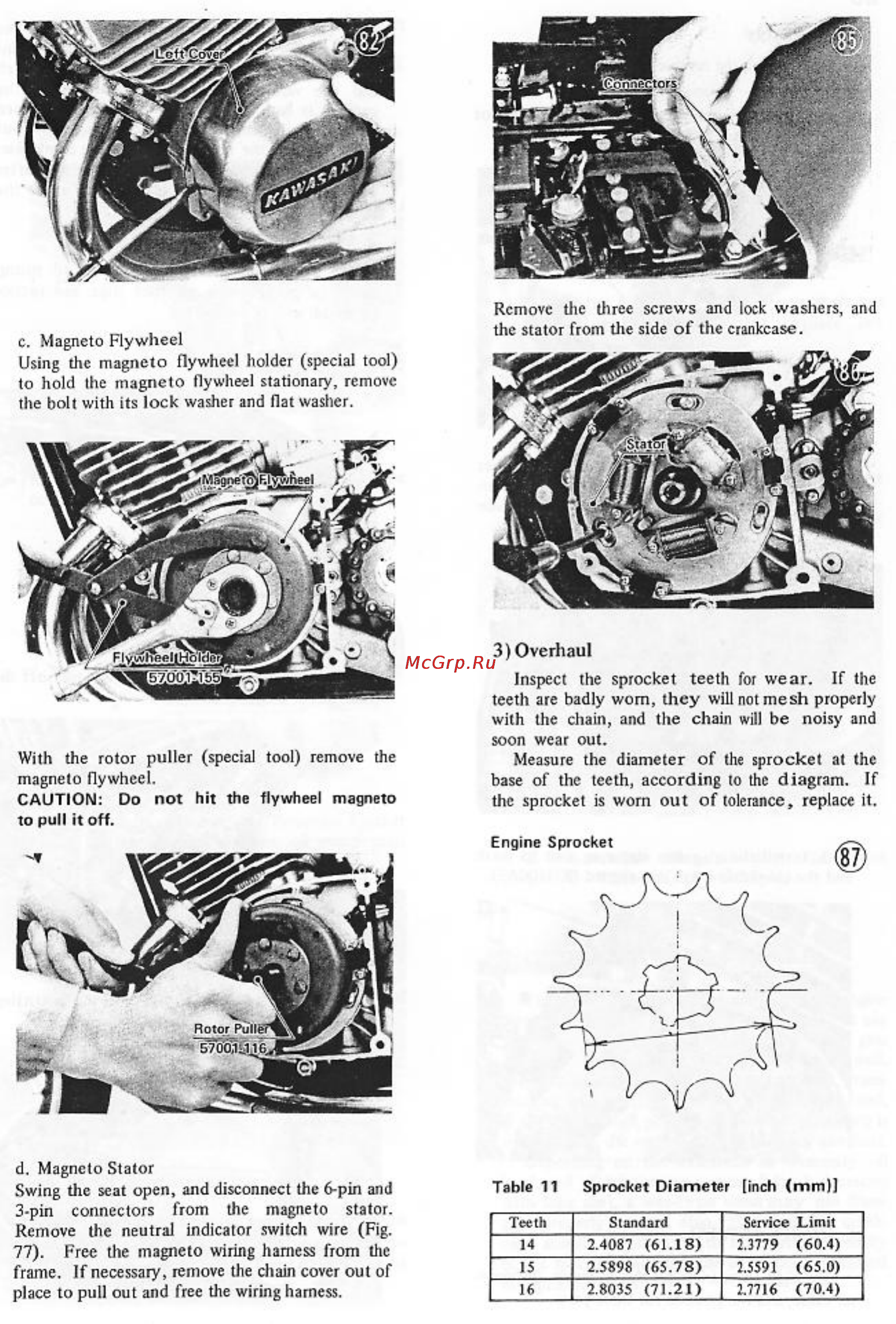

C Magneto Flywheel Using die magneto flywheel holder special tool to hold the magneto flywheel stationary remove the bolt with its lock washer and flat washer Remove die diree screws and lock washers the stator from die side of the crankcase 3 Overhaul With the rotor puller special tool remove the magneto flywheel CAUTION Do not hit the flywheel magneto to pull it off d Magneto Stator Swing die seat open and disconnect the 6 pin and 3 pin connectors from the magneto stator Remove the neutral indicator switch wire Fig 77 Free the magneto wiring harness from die frame If necessary remove the chain cover out of Inspect the sprocket teeth for wear If teeth are badly worn they will not mesh prop with the chain and the chain will be noisy soon wear out Measure the diameter of the sprocket at base of the teeth according to the diagram the sprocket is worn out of tolerance replace it Table 11 Sprocket Diameter inch mm l Teeth 14 15 Standard 2 4087 61 18 2 5898 65 78 Service Limit 2 3779 60 4 2 5591 65 0
