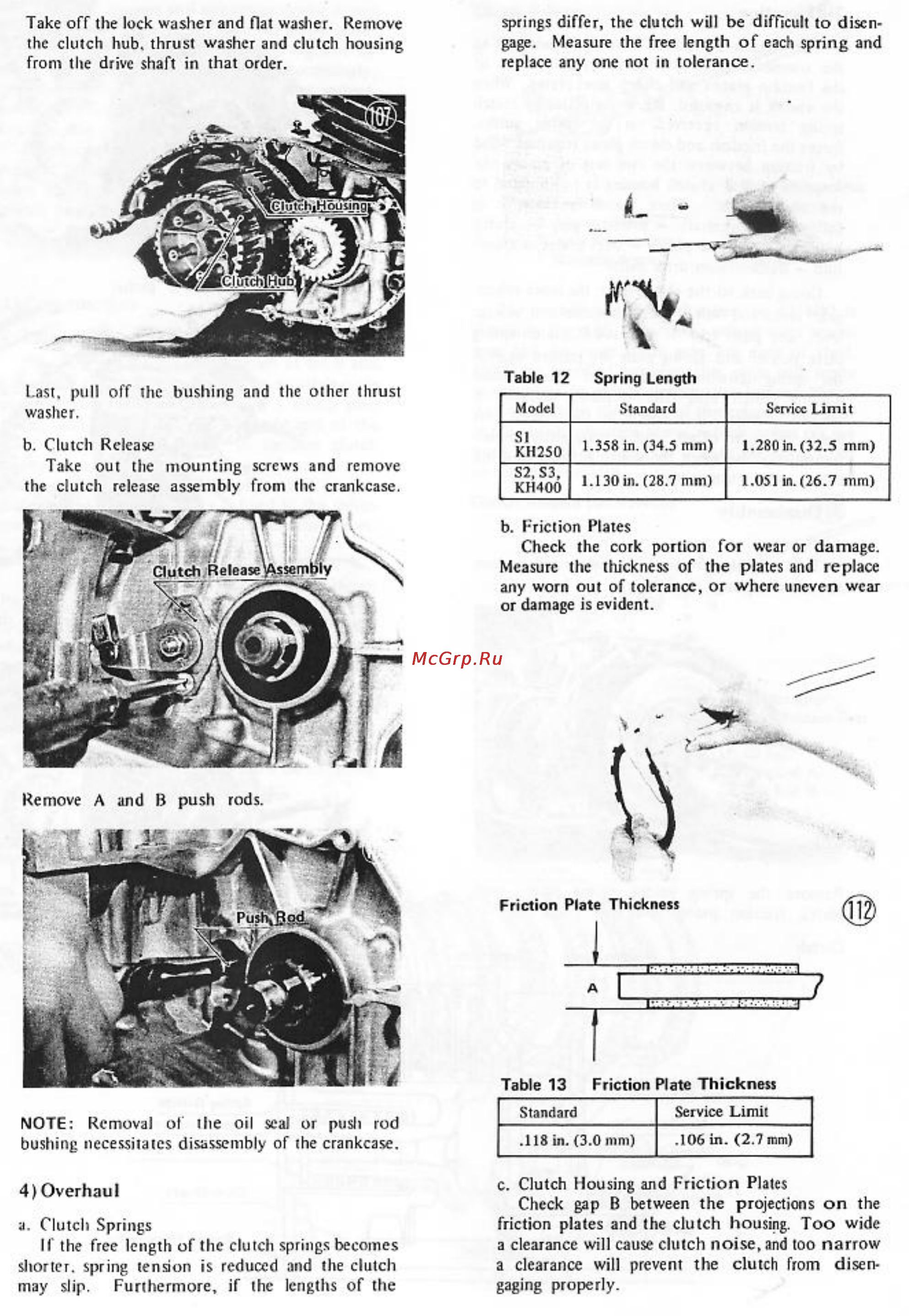

Take off the lock washer and flat washer Remove the clutch hub thrust washer and clutch housing from the drive shaft in that order springs differ the clutch will be difficult to disen gage Measure the free length of each spring an replace any one not in tolerance Table 12 Spring Length Last pull off the bushing and the other thrust washer Model b Clutch Release Take out the mounting screws and remove the clutch release assembly from he crankcase SI KH250 S2 S3 KH400 Standard Service Limit 1 358 in 34 5 mm 1 280 in 32 5 mrn 1 130 in 28 7 mm 1 051 in 26 7 mm b Friction Plates Check the cork portion for wear or damag Measure the thickness of the plates and replac any worn out of tolerance or where uneven we or damage is evident Remove A and B push rods MOTE Removal of the oil seal or push rod bushing necessitates disassembly of the crankcase 4 Overhaul a Clutch Springs If the free length of the clutch springs becomes shorter spring tension is reduced and the clutch Standard Service Limit 118 in 3 0 mm 106 in 2 7 mm c Clutch Housing and Friction Plates Check gap B between the projections on th friction plates and the clutch housing Too wid a clearance will cause clutch noise and too narro a clearance will prevent the clutch from disen
