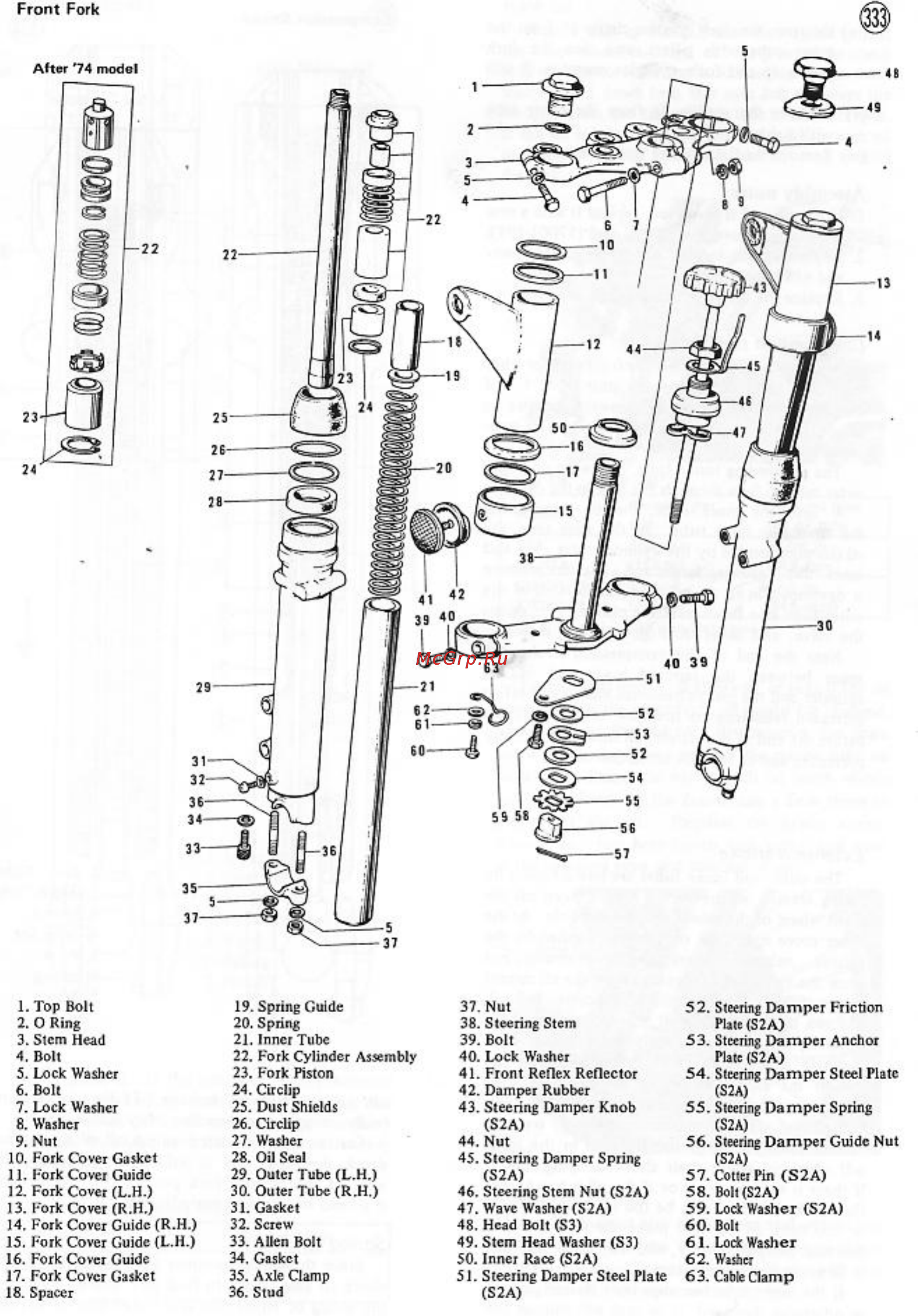

1 Top Boll 2 O Ring 3 Stem Head 4 Bolt 5 Lock Washer 6 Bolt 7 Lock Washer 8 Washer 9 Nut 10 Fork Cover Gasket 11 Fork Cover Guide 12 Fork Cover L H 13 Fork Cover R H 14 Fork Cover Guide R H 15 Fork Cover Guide L H 16 Fork Cover Guide 19 Spring Guide 20 Spring 21 Inner Tube 22 Fork Cylinder Assembly 23 Fork Piston 24 Circlip 25 Dust Shields 26 Circlip 27 Washer 28 Oil Seal 29 Outer Tube L H 30 Outer Tube R H 31 Gasket 32 Screw 33 Allen Bolt 34 Gasket 37 Nut 38 Steering Stem 39 Bolt 40 Lock Washer 41 Front Reflex Reflector 42 Damper Rubber 43 Steering Damper Knob S2A 44 Nut 45 Steering Damper Spring S2A 46 Steering Stem Nut S2A 47 Wave Washer S2A 48 Head Bolt S3 49 Stem Head Washer S3 50 Inner Race S2A 52 Steering Damper Friction Plate S2A 53 Steering Damper Anchor Plate S2A 54 Steering Damper Steel Pla S2A 55 Steering Damper Spring S2A 56 Steering Damper Guide Nu S2A 57 Cotter Pin S2A 58 Bolt S2A 59 Lock Washer S2A 60 Bolt 61 Lock Washer 62 Washer
