Yamaha YQ50 AEROX (1997) [114/192] Carburetor
![Yamaha YQ50 AEROX (1997) [114/192] Carburetor](/views2/1121366/page114/bg72.png)
CARB
6-3
322006
햲
322028
햲
햳

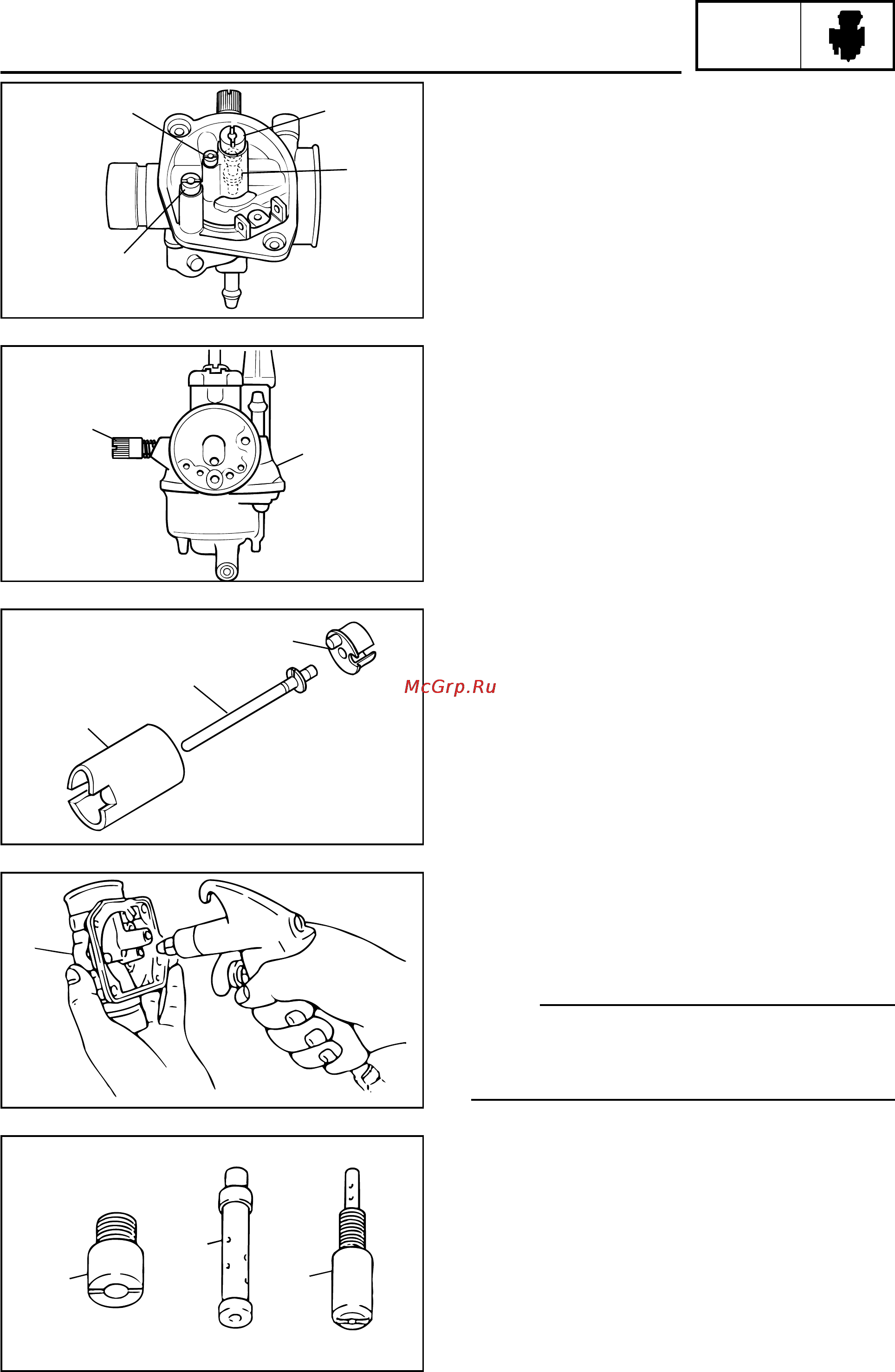

CARBURETOR
3. Remove :
• Pilot jet Q
• Main jet W
• Main nozzle E
• Starter jet R
4. Remove :
• Throttle stop screw Q
• Spring (throttle stop screw)
• Air screw W
• Spring (air screw)
5. Remove :
• Needle clip Q
• Jet needle W
• Throttle valve E
INSPECTION
1. Check :
• Carburetor body Q
Dirt ➞ Clean.
NOTE:
Use a petroleum based solvent for cleaning.
Blow out all passages and jets with compressed
air.
2. Inspect :
• Main jet Q
• Main nozzle W
• Pilot jet E
• Starter jet
Contamination ➞ Clean.
햲
햳
햴
햵
322027
햲
햳
햴
322029
322012
햲
햳
햴
