Yamaha YQ50 AEROX (1997) [168/192] Lighting system
![Yamaha YQ50 AEROX (1997) [168/192] Lighting system](/views2/1121366/page168/bga8.png)
ELEC
8-18
MEETS
SPECIFICATION

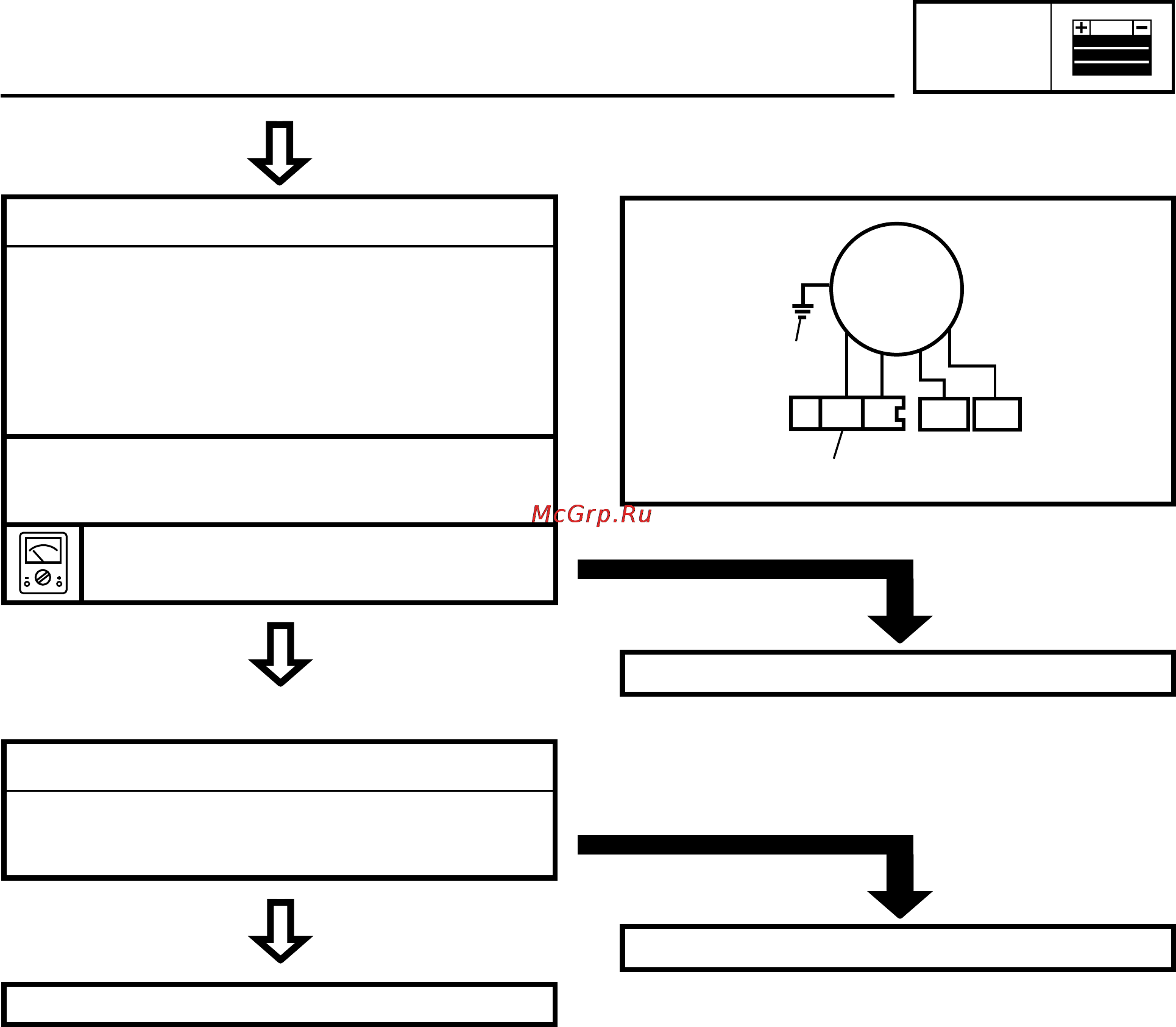

3. Lighting coil resistance
• Disconnect the lighting coil coupler from the
wire harness.
• Connect the pocket tester (Ω x 1) to the
lighting coil.
• Check the lighting coil resistance
Tester (+) lead ➞ Yellow / Red Q
Tester (-) lead ➞ Ground W
Lighting coil resistance :
0.4 ~ 0.6
Ω ( at 20°C (68°F)
Lighting coil defect ➞ Replace.
POOR CONNECTIONS
Repair.
Circuit is in good condition.
LIGHTING SYSTEM
MEETS
SPECIFICATION
4. Connections
• Check all connections in the lighting system.
Refer to “WIRING DIAGRAM”.
OUT OF SPECIFICATION
Y/R w
-
W/R B/R
CDI
MAGNETO
햲
햳
