Yamaha YQ50 AEROX (1997) [181/192] Cooling system
![Yamaha YQ50 AEROX (1997) [181/192] Cooling system](/views2/1121366/page181/bgb5.png)
ELEC
8-31
COOLING SYSTEM
MEETS
SPECIFICATION
MEETS
SPECIFICATION
Pocket tester :
90890-03112
Fuse defect ➞ Replace.
2. Battery
• Check the condition of the battery.
Refer to “BATTERY INSPECTION” in
CHAPTER 3.
Battery voltage :
12.8 V or more at 20
°C (68°F)

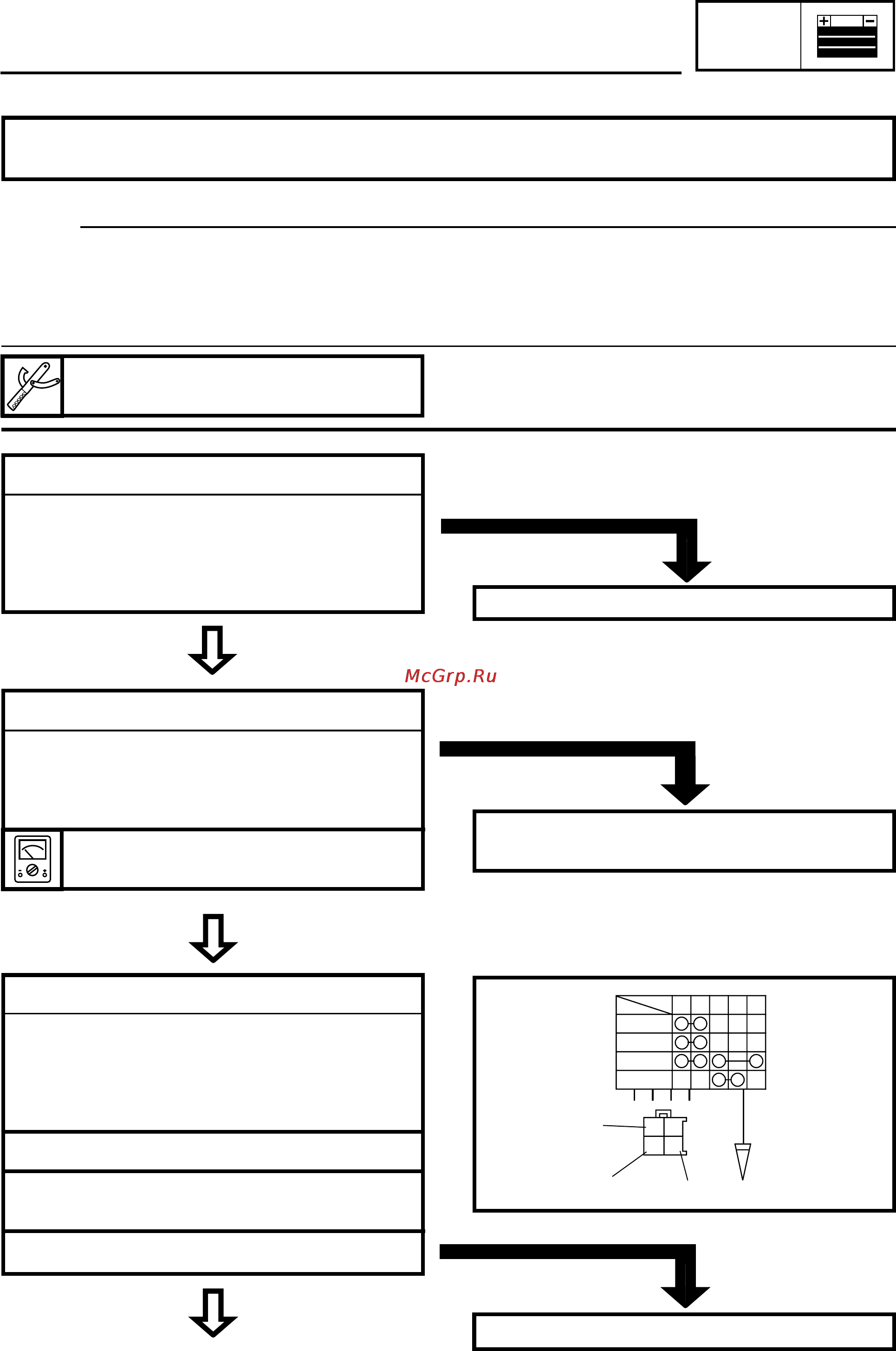

TROUBLESHOOTING
WATER TEMPERATURE METER DOES NOT MOVE, WHEN THE ENGINE IS WARM.
NOTE :
Remove the following parts before proceeding with the troubleshooting:
• Side covers and footrest board
• Handlebar cover
For accurate troubleshooting use the following special tools :
1. Fuse
• Remove the fuse.
• Connect the pocket tester (Ω x 1) to the fuse.
• Check the fuse for continuity.
Refer to “FUSE INSPECTION” in Chapter 3.
3. Main switch
• Disconnect the main switch from the wire
harness.
• Turn the main switch to “✱”.
• Check for continuity between :
Red Q and Gray E
• Turn the main switch to “ON”.
• Check for continuity between :
Red Q and Brown W
DOES NOT MEET SPECIFICATION
Main switch defect ➞ Replace.
DOES NOT MEET SPECIFICATION
• Clean battery terminals.
• Charge or replace the battery.
NO CONTINUITY
RBBWBW
BWBW
LOCKLOCK
ON ON
CHECKCHECK
OFF OFF
BrBr GyGy
BrBr
GyGy
B
R
햲
햴
햳
CONTINUITY
