ELEC
8-29
SIGNAL SYSTEM

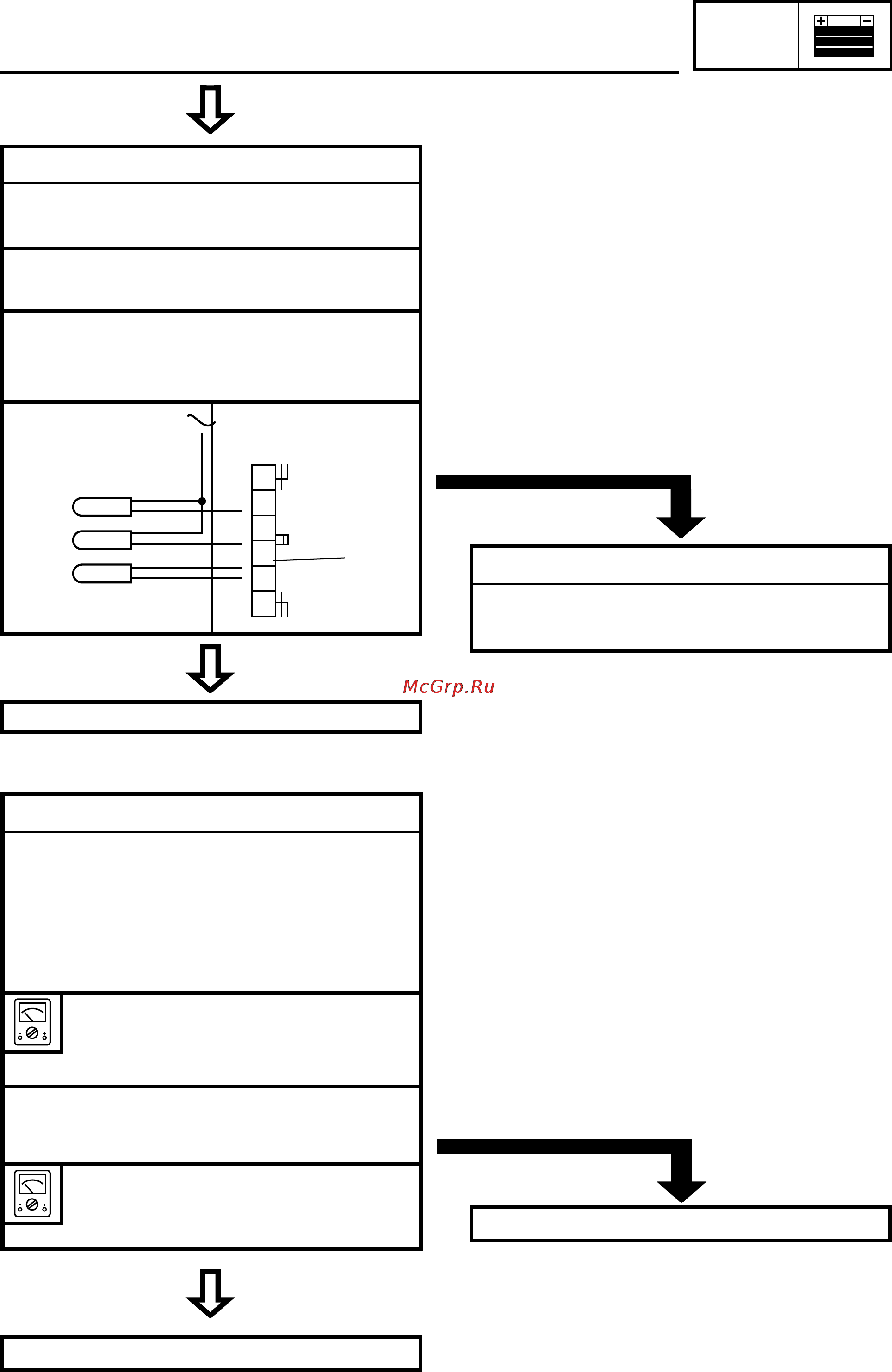

3. Voltage
• Connect the pocket tester (DC20V) to the
bulb socket connector.
Pocket tester (+) lead ➞ Grey Q
Pocket tester (-) lead ➞ Ground
• Turn the main switch to ON.
• Check the voltage (12V) between “Grey” and
the ground.
DOES NOT MEET SPECIFICATION
MEET
SPECIFICATION
This circuit is in good condition.
4. Connections
• Check all connections in the signal system.
Refer to “WIRING DIAGRAM”.
Y
Dg
Dg
Ch
Ch
Gy
Gy
Br
Br
YR
YR
Y
Dg
Dg
Ch
Ch
Gy
Gy
햲
5.The fuel meter does not work.
1.Fuel sender unit
• Disconnect the fuel sender leads.
• Connect the pocket tester (Ω x 100) then
(Ω x 10) to the fuel sender.
• Drain the fuel tank.
• Measure the resistance.
Sender unit resistance
(empty tank):
90 ~ 100
Ω at 20°C (68°F)
• Fill the tank.
• Measure the resistance.
Sender unit resistance
(full tank):
1.5 ~ 7.5
Ω at 20°C (68°F)
DOES NOT MEET SPECIFICATION
MEET
SPECIFICATION
This circuit is in good condition.
Replace the fuel sender.
