3
SPEC

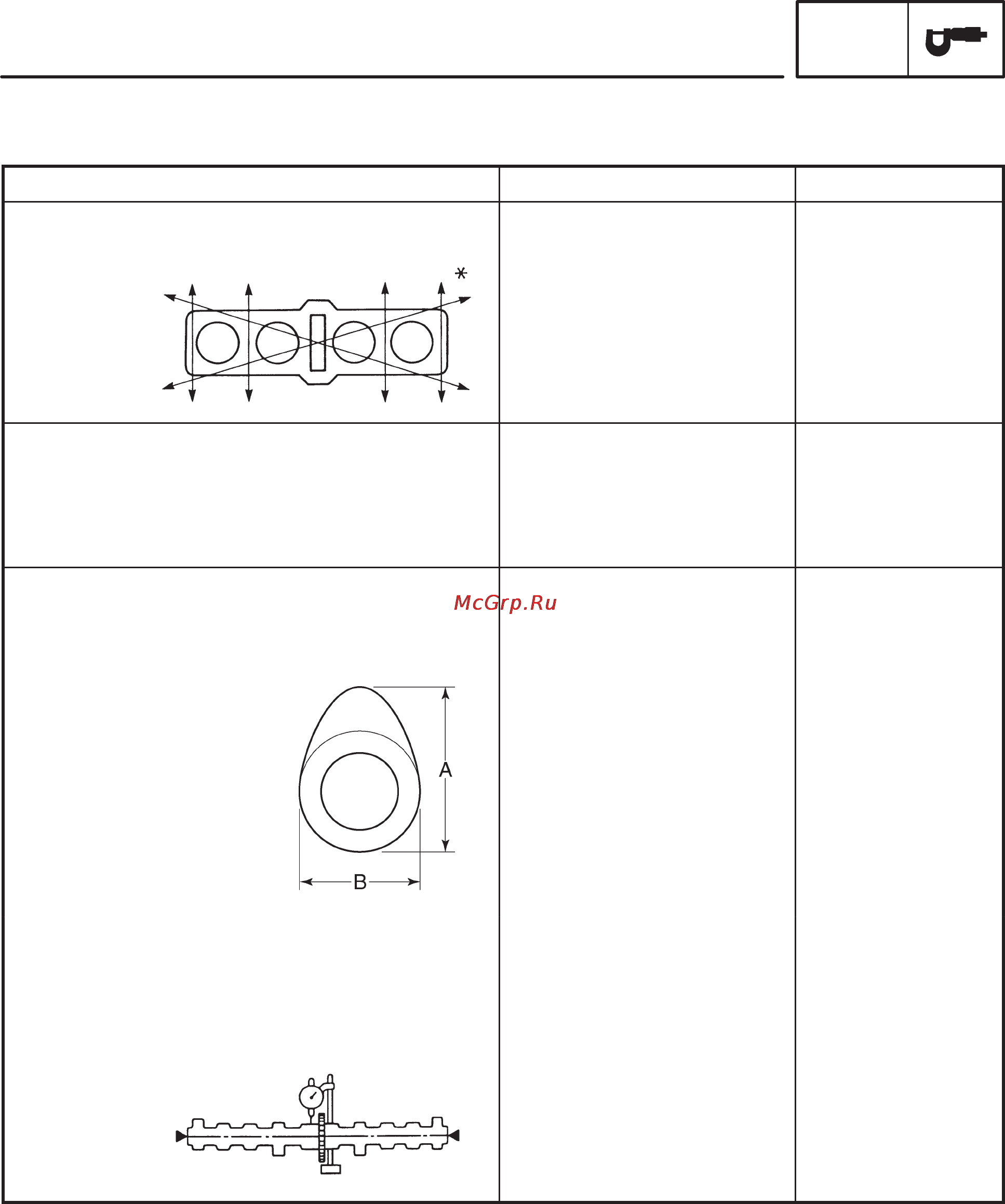

MAINTENANCE SPECIFICATIONS
MAINTENANCE SPECIFICATIONS
ENGINE
Model
Standard Limit
Cylinder head:
Warp limit
SSS 0.2 mm
Cylinder:
Bore size
Taper limit
Out of round limit
Wear limit
79.00 X 79.01 mm
SSS
SSS
SSS
SSS
0.05 mm
0.1 mm
79.1 mm
Camshaft:
Drive method
Cam cap inside diameter
Camshaft outside diameter
Shaft-to-cap clearance
Cam dimensions
Chain drive (Center)
25.000 X 25.021 mm
24.967 X 24.980 mm
0.020 X 0.054 mm
SSS
SSS
SSS
SSS
Intake “A”
“B”
Exhaust “A”
“B”
Camshaft runout limit
35.95 X 36.05 mm
28.058 X 28.158 mm
35.95 X 36.05 mm
28.045 X 28.145 mm
SSS
35.85 mm
27.958 mm
35.85 mm
27.945 mm
0.03 mm
