27
CHAS
FRONT AND REAR BRAKES
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7

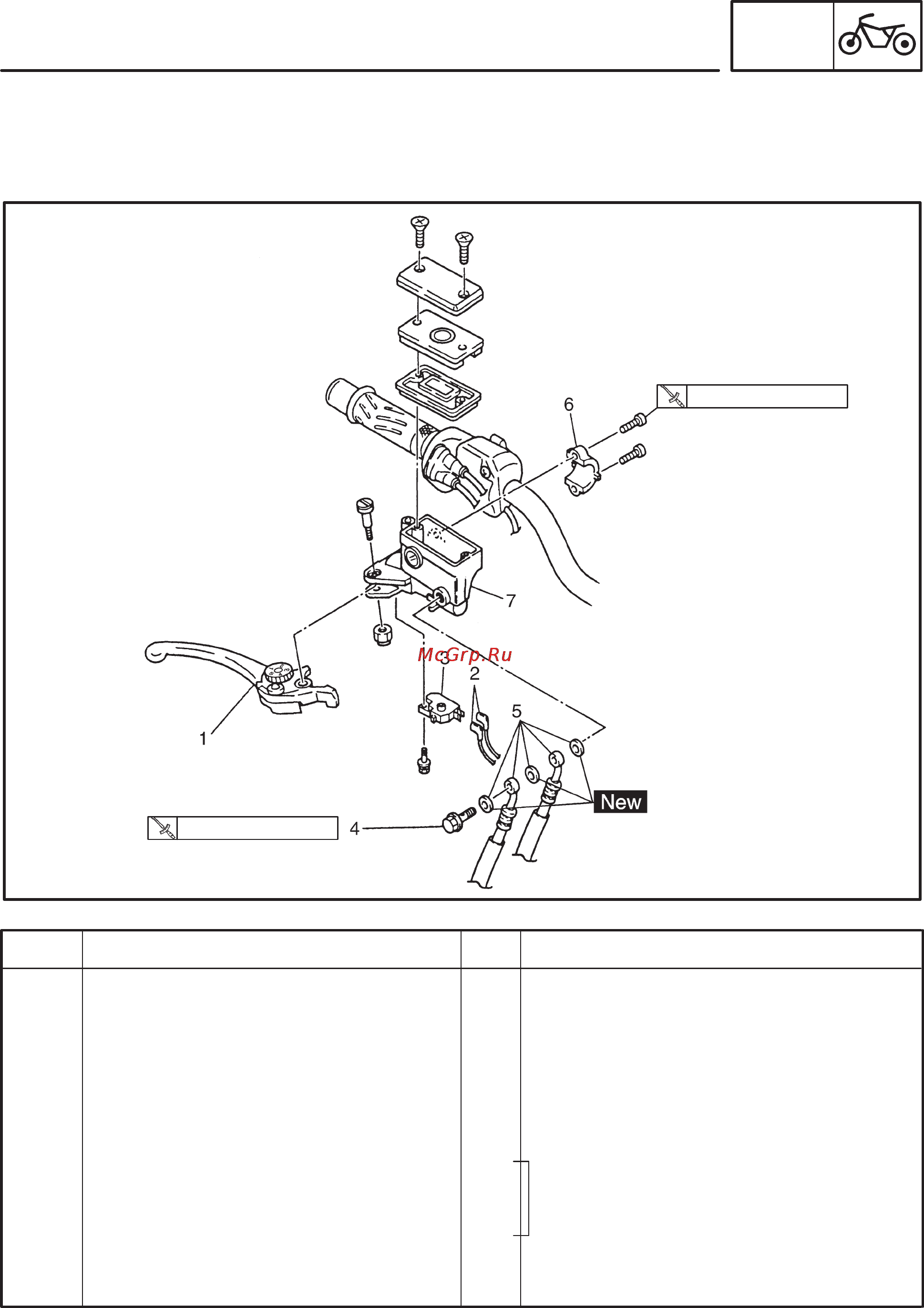

Removing the front brake master
cylinder
Brake fluid
Brake lever
Brake switch lead
Front brake switch
Union bolt
Copper washers/Brake hose
Master cylinder bracket
Master cylinder
1
2
1
1
3/2
1
1
Remove the parts in the order listed.
Drain
Refer to “DISASSEMBLING/ASSEM-
BLING AND INSTALLING THE REAR
BRAKE MASTER CYLINDER” in
chapter 6. (Manual No.: 5EA3-AE1)
For installation, reverse the removal
procedure.
10 Nm (1.0 mSkg)
30 Nm (3.0 mSkg)
CHASSIS
FRONT AND REAR BRAKES
EAS00586
FRONT BRAKE MASTER CYLINDER
