Yamaha XJR1300 (P) (2002) [41/44] Carburetor heating system
![Yamaha XJR1300 (P) (2002) [41/44] Carburetor heating system](/views2/1121390/page41/bg29.png)
34
YES
NO

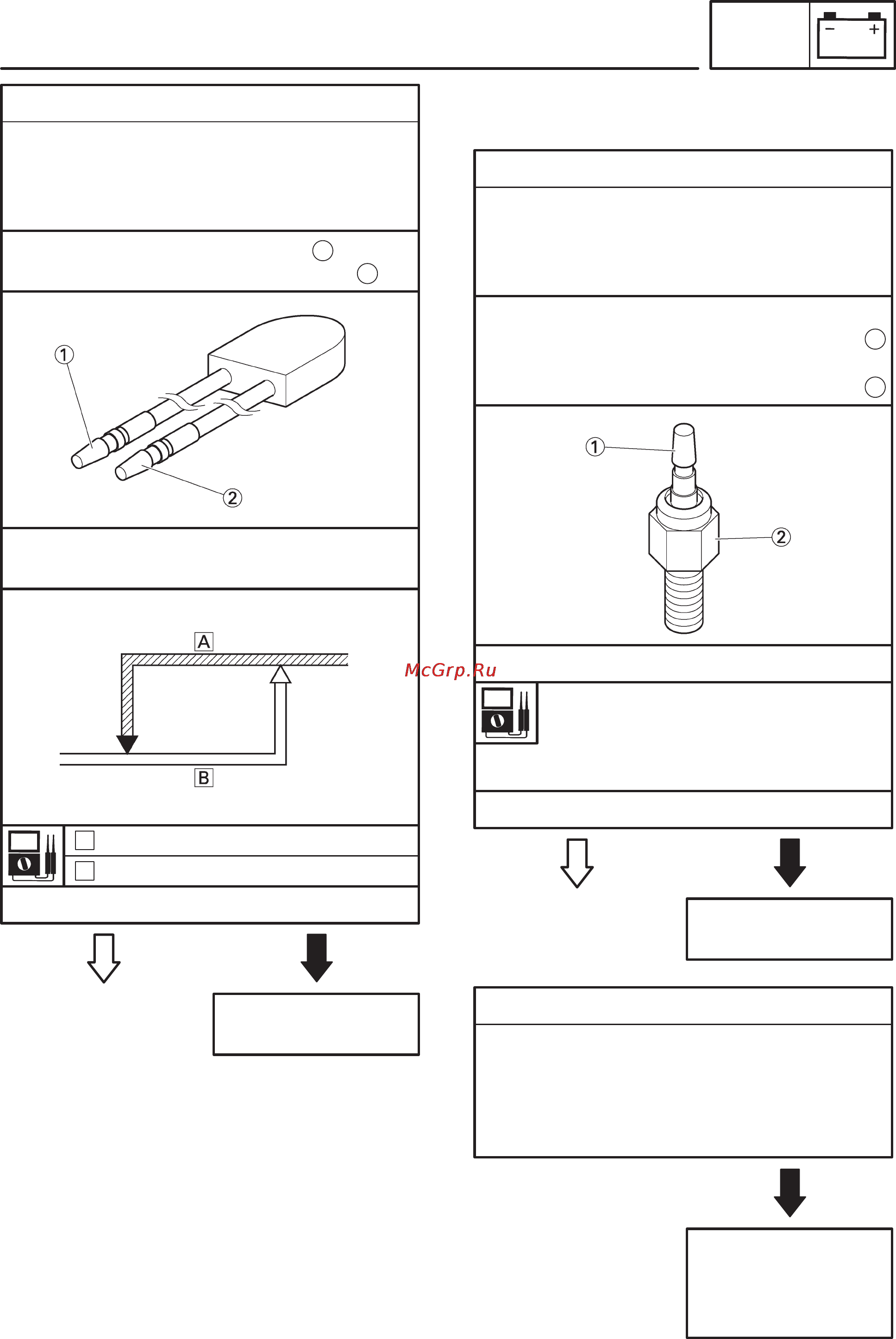

6. Thermo switch
S Remove the thermo switch from the thermo
switch plate.
S Connect the pocket tester to the (Ω 1) to
the thermo switch as shown.
Tester positive probe ! black
Tester negative probe ! black/red
Replace the thermo
switch.
S Check the thermo switch for continuity at the
temperatures indicated below.
1
2
S Does the thermo switch operated properly?
COOL DOWN
HEAT UP
A
B
EAS00825
The following procedure applies to all of the
carburetor heating elements.
YES
NO
7. Carburetor heater
S Remove the carburetor heating element
from the carburetor.
S Connect the pocket tester to the carburetor
heating element as shown.
Tester positive probe !
heating element
Tester negative probe !
heating element body
Replace the carbure-
tor heating element.
S Is the carburetor heating element OK?
2
8. Wiring
S Check the entire carburetor heating sys-
tem’s wiring.
Refer to “CIRCUIT DIAGRAM”.
S Is the carburetor heating system’s wiring
properly connected and without defects?
NO
Properly connect or
repair the carburetor
heating system’s wir-
ing.
EAS00826
1
Carburetor heating element
resistance
12 V 15 W: 4 X 11 Ω at 20_C
12 V 20 W: 4 X 11 Ω at 20_C
S Measure the carburetor heater resistance.
11_C
ON
OFF
16_C
CARBURETOR HEATING SYSTEM
ELEC
