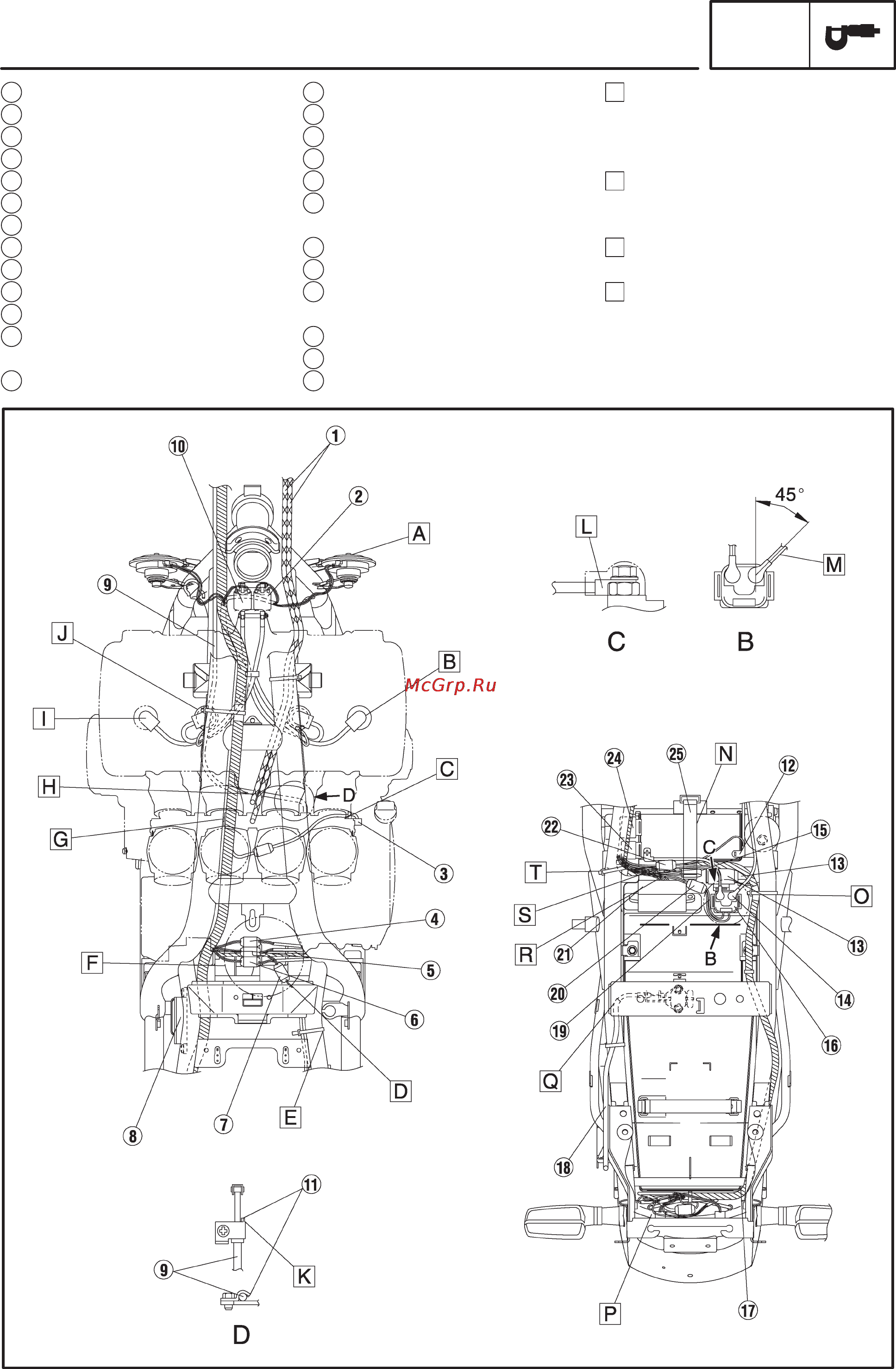

Yamaha XJR1300 (P) (2002) [22/44] Cable routing
![Yamaha XJR1300 (P) (2002) [22/44] Cable routing](/views2/1121390/page22/bg16.png)
15
14 Starter motor cable
15 Thermoswitch
16 Starter relay
17 Rib of the rear fender
18 Seat lock wire
19 Positive (+) lead wire of the bat-
tery
20 Starter relay coupler
21 Fuse box
22 Negative (–) lead wire coupler of
the battery
23 Flasher relay
24 Oil lamp relay
25 Battery band
A Right horn.
Install the HI tone source (with H-
marked label) at the right of the
vehicle.
B Connect the #1-#4 high-tension
cords in order of the cord num-
ber.
C Pass the T.P.S. lead wire through
the clamp of the #4 carburetor.
D To fuel sender
1 Throttle cable
2 #1 and #4 ignition coils
3 T.P.S.
4 Neutral switch coupler
5 Pickup coupler
6 Side stand switch coupler
7 Fuel sender coupler
8 Igniter unit
9 Starter cable
10 #2 and #3 ignition coils
11 Stoppers
12 Negative (–) lead wire of the bat-
tery
13 Relay assy
SPEC
CABLE ROUTING
