30
FRONT AND REAR BRAKES
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4

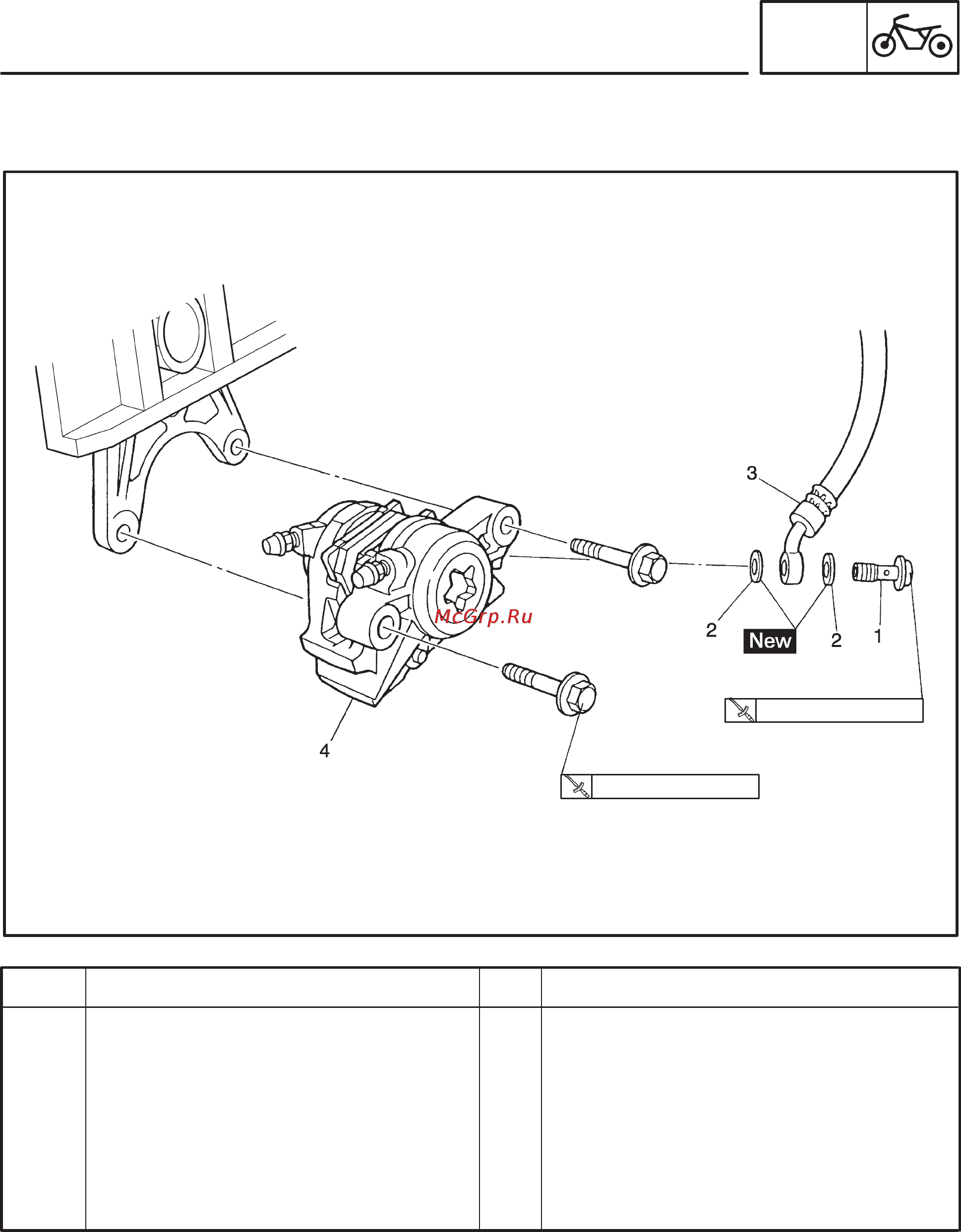

Removing the rear brake caliper
Brake fluid
Union bolt
Copper washer
Brake hose
Brake caliper
1
2
1
1
Remove the parts in the order listed.
Drain.
For installation, reverse the removal
procedure.
40 Nm (4.0 mSkg)
30 Nm (3.0 mSkg)
EAS00616
REAR BRAKE CALIPER
